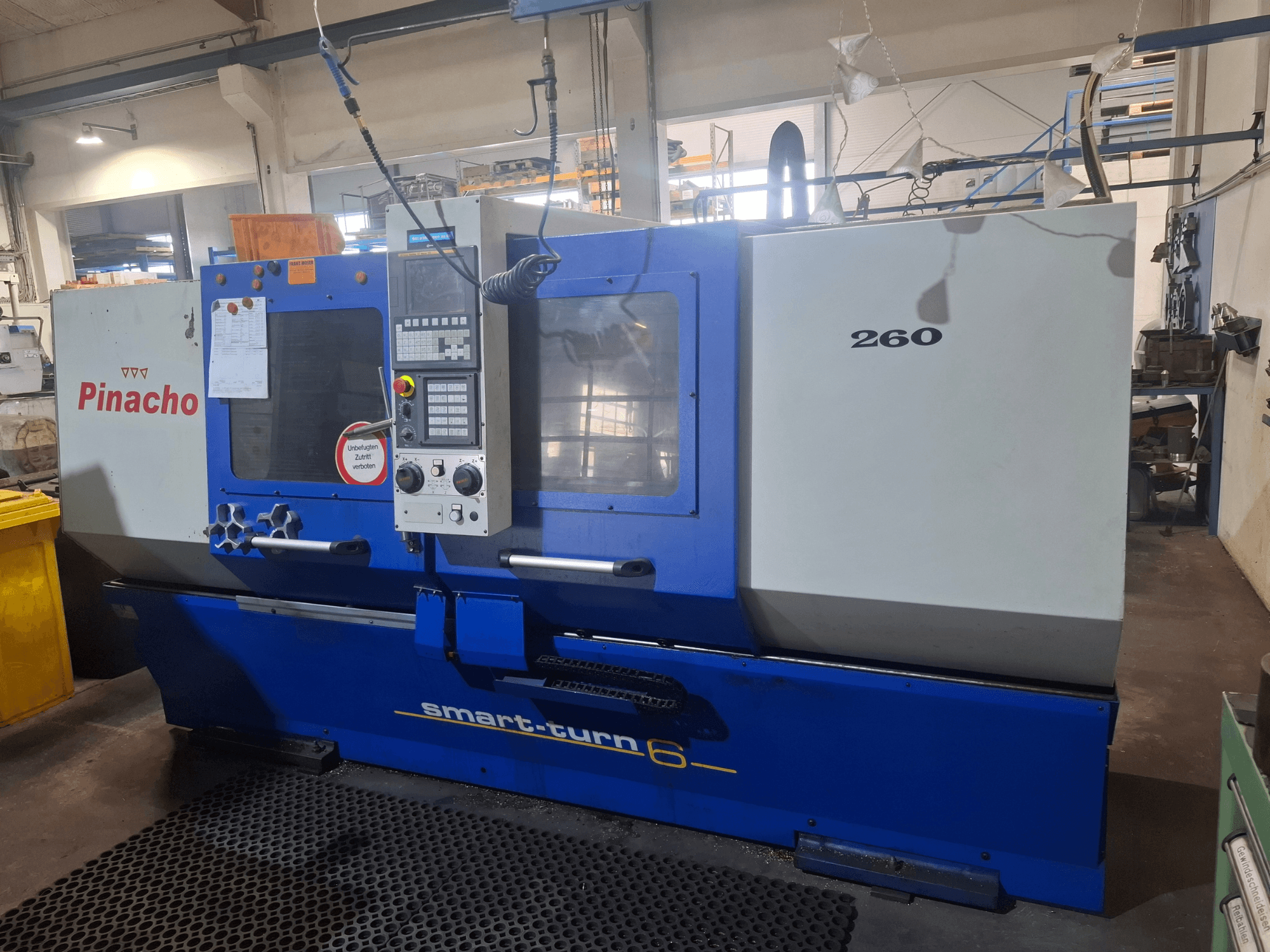

Horizontal turning machine manufactured in 2007. This Pinacho Smart-turn6 260 features a distance between centers of 1,500 mm and a maximum turning diameter with soft jaws of 500 mm. It is equipped with a spindle speed of 2,400 rpm and a spindle bore of 80 mm. If you are looking to get high-quality turning capabilities, consider the Pinacho Smart-turn6 260 machine we have for sale. Contact us for further details.
Overview
- brand: Pinacho
- year: 2007
- MODEL: Smart-turn6 260
- production hours: 2974
- application type: Turning
- Location: Austria
- machine type: Horizontal Turning Machine
- Available from: 05/10/2026
- control unit brand: FANUC
Technical Information - Pinacho Smart-turn6 260
Control Unit
- Control Brand: FANUC
- Control Model: 0i Mate TC
Dimensions
- Machine Height: 1850 mm
- Machine Length: 3330 mm
- Machine Weight: 3350 kg
Movement
- Number of Axes: 2
- X-axis Travel: 330 mm
- Z-axis Travel: 1550 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Power: 4 kW
- Spindle Speed: 2400 RPM
Additional Information
Distance Between Centers: 1,500 mm
Spindle Bore: 80 mm
Maximum Turning Diameter over Cross Slide: 300 mm
Maximum Turning Diameter with Soft Jaws: 500 mm
Spindle Speed: 2,400 rpm
Spindle Motor Power: 4 kW
Connected Load: 17 kW
Tailstock Quill Diameter: 58 mm
Tailstock Taper: Morse 5 (MT5)
Machine Length: 3,330 mm
Machine Height: 1,850 mm
Machine Weight: 3,350 kg
Chuck Diameter: 260 mm
Documentation: Operating Manual Included
Condition: Good Condition
Service History: Service Maintained
CE Marked
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
