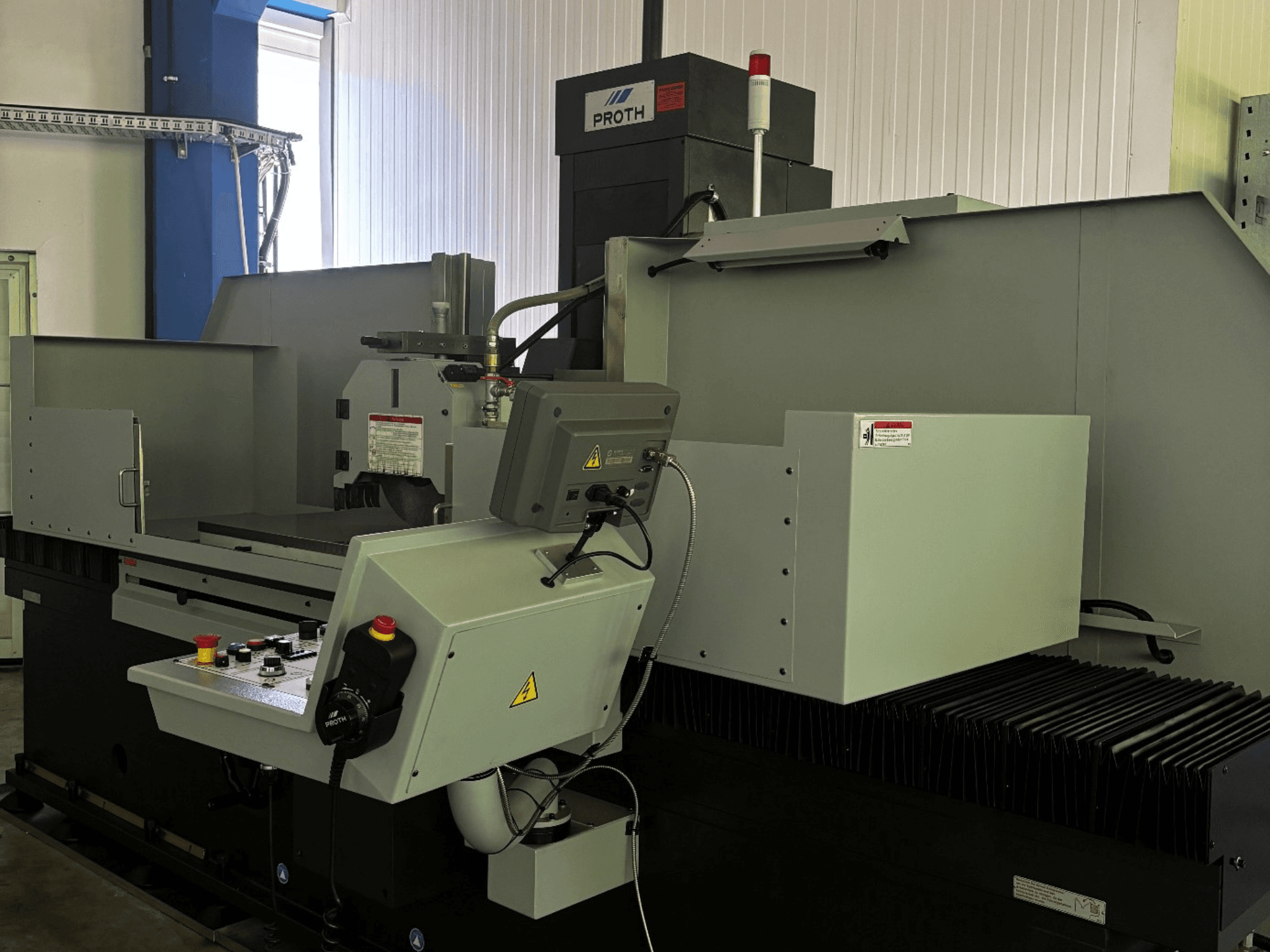

Proth - PSGC-50120AHRAT-GRI-PRO-2021-00001

- Max. Distance Spindle Center to Table: 700 mm

- Table Load Capacity (Continuous): 1,200 kg

- Table Load Capacity (Non-continuous): 1,880 kg

- Weight of Electromagnetic Plate: 315 kg

- Installation Height Table to Bottom Edge of Grinding Wheel: 522 mm

- Hydraulic Longitudinal Feed: 1 - 25 m/min

- Step Cross Feed: 0.1 - 15 mm/stroke

- Continuous Stepless Cross Feed: 50 - 1,500 mm/min

- Handwheel Rotation Cross: 5 mm/rev (Graduation: 0.02 mm)

- Handwheel Rotation Vertical: 0.25 mm/rev (Graduation: 0.002 mm)

- Automatic Vertical Feed: AD 1

- Spindle Speed: 1,500 RPM (Infinitely variable)

- Spindle Motor: 7.5 kW (400V, 4P, 15A, 50Hz)

- Cross Feed Motor: 0.37 kW / 0.7 kW (220V, 6P, 2.1A, 50Hz)

- Rapid Feed Motor: 0.75 kW (110V, 6P, 6.1A, 50Hz)

- Hydraulic Pump Motor: 3.7 kW

- Transformer Tr1: 825 VA

- Transformer Tr2: 2,000 VA

- Drive Power (Antriebsleistung): 400V, 3P, 34.05A, 50Hz

- Coolant System: Coolant device with paper filter and magnetic separator (Capacity: 100 liters)

- Mist & Dust Extraction System: Model PSGC-50120AHR, Tank Capacity: 100 l, Output: 50-60 l/min, Motor: 0.55 kW, 400V, 1.8A, 50Hz, Weight: 120 kg

- Digital Readout (DRO): 2-Axis Digital Readout on Y-Axis (SINO SDS6-2V, SN: 7201723C0032, Scale: KA-300 1µm - 670 mm) retrofitted in 05/2022

- Grinding Wheel Dimensions: 400 x 50 x 127 mm / 355 x 50 x 127 mm (Included KINIK 405 x 50 x 127 mm 32A 46 J 9 V, 33 M/S)

- Number of Axes: 3 Axes (X, Y, Z movements with 2-Axis DRO on Y)

- Optional Equipment & Features: Parallel dresser (head mounted), Table dressers, Balancing arbor, Balancing scale, Electric handwheel, LED lighting, Alignment feet, 6x Grinding wheel flanges total, Complete hydraulic and electrical system

- Travel dimensions: 4.1W x 2.7D x 2.96H m)

- Optional spare grinding wheels (including ZISCHE and KINIK brands) and various wheel flanges in stock/storage rack
