Quick-Tech I-60U Lathe

Show in original language

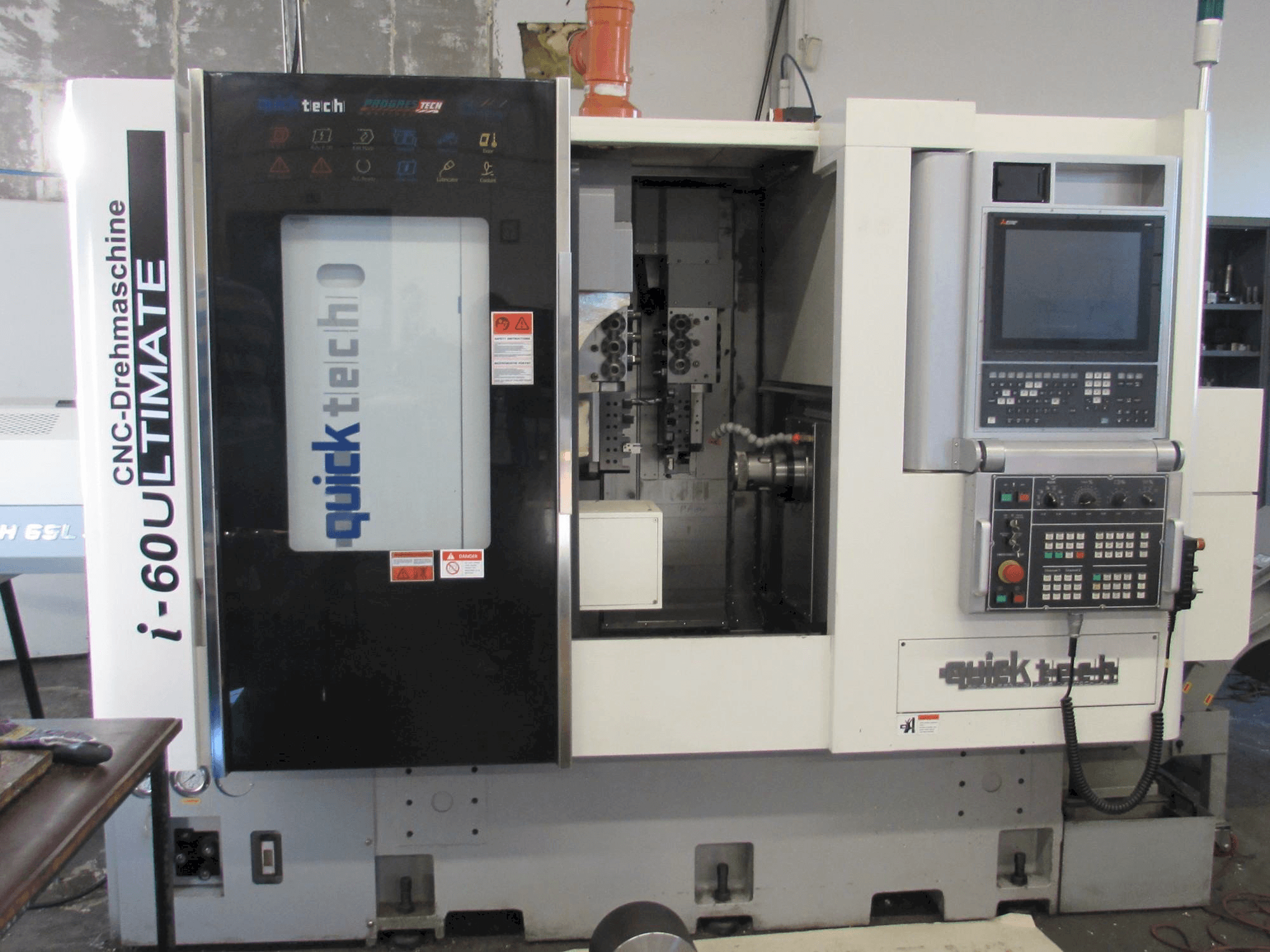

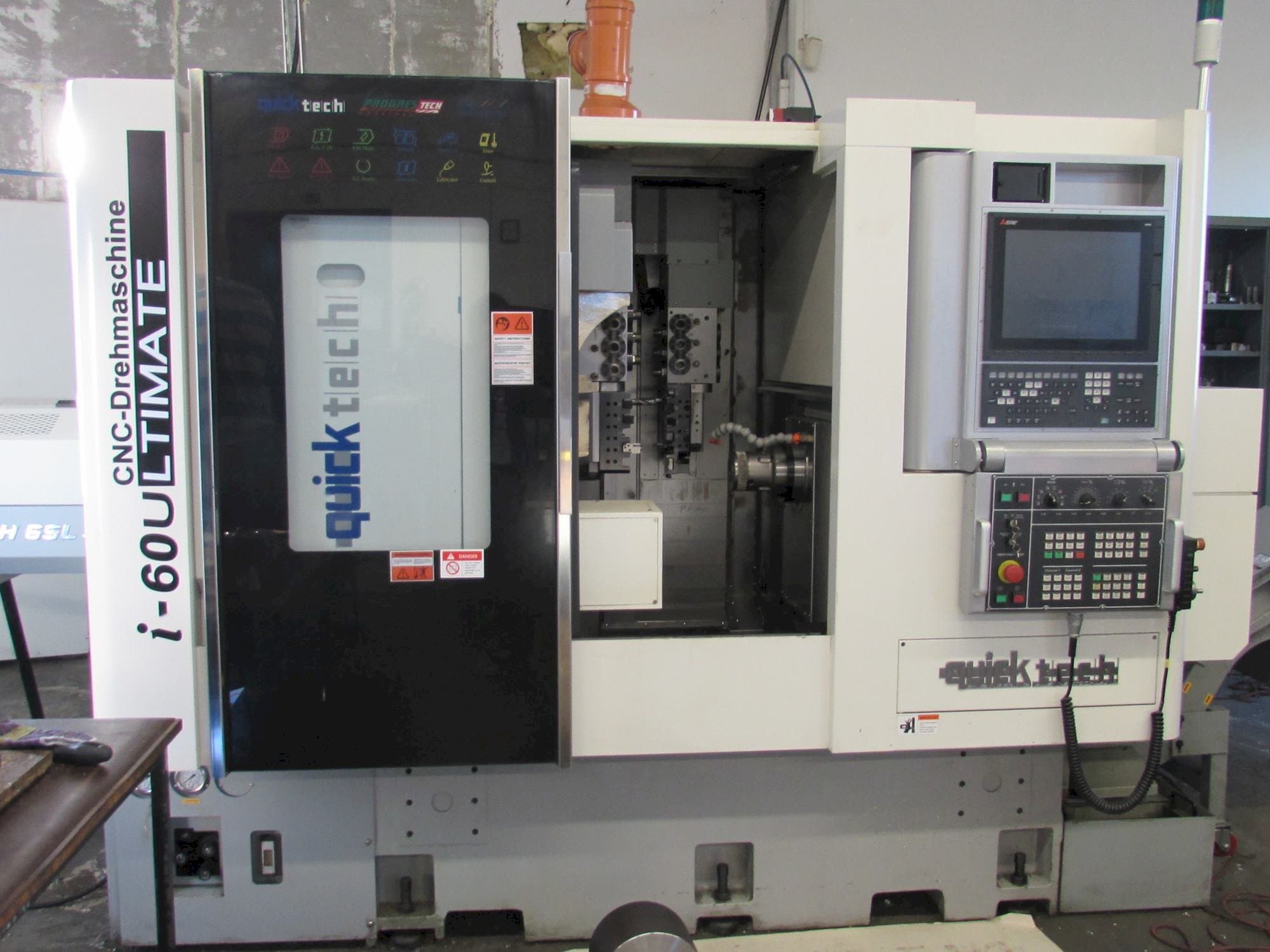

This Quick-Tech I-60U Lathe was built in 2017 in Taiwan. It has been operative for only 2346 hours. It is operated through a Mitsubishi M800 control unit. This machine incorporates 2 spindles and can operate with a spindle speed up to 5000 rpm. It includes a bar feeder Fedek DH65L (1,5 m) and an automatic lubrication.

Overview

brand: Quick-Tech
year: 2017
MODEL: I-60U
production hours: 2346
application type: Turning
Location: Czech Republic
machine type: Swiss Type Turning Machine
control unit brand: MITSUBISHI

Technical Information - Quick-Tech I-60U

Control Unit

Control Brand: MITSUBISHI
Control Model: M800

Dimensions

Machine Depth: 1900 mm
Machine Height: 1900 mm
Machine Weight: 5800 kg

Movement

X-axis Travel: 150 mm
Y-axis Travel: 385 mm

Technical Specification

Spindle Speed: 5000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Automatic lubrication
Machine like new

Technical Machine Benefits

Bar feeder fedek dh65l (1,5 m)
Set of tool holders (upon request)
Main spindle (a2-6) max. Turning length 250 mm
Main spindle power 11 kw, 5000 rpm, bore 62 mm, bar diameter 60 mm
Subspindle (a2-6) max. Turning length 100 mm
Subspindle power 5. 5 kw, 4000 rpm, bar diameter 42 mm
X1, y1, z1 stroke: 450, 400, 300 mm
Main tool head 6 outer, 5 inner positions (20 x 20 mm clamping), live tools 6 (3 radial, 3 axial)
2nd tool head 5 outer, 9 inner positions (20 x 20 mm clamping), live tools 6 (3 radial, 3 axial)
C axis 0. 001 degrees (main spindle, subspindle)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
