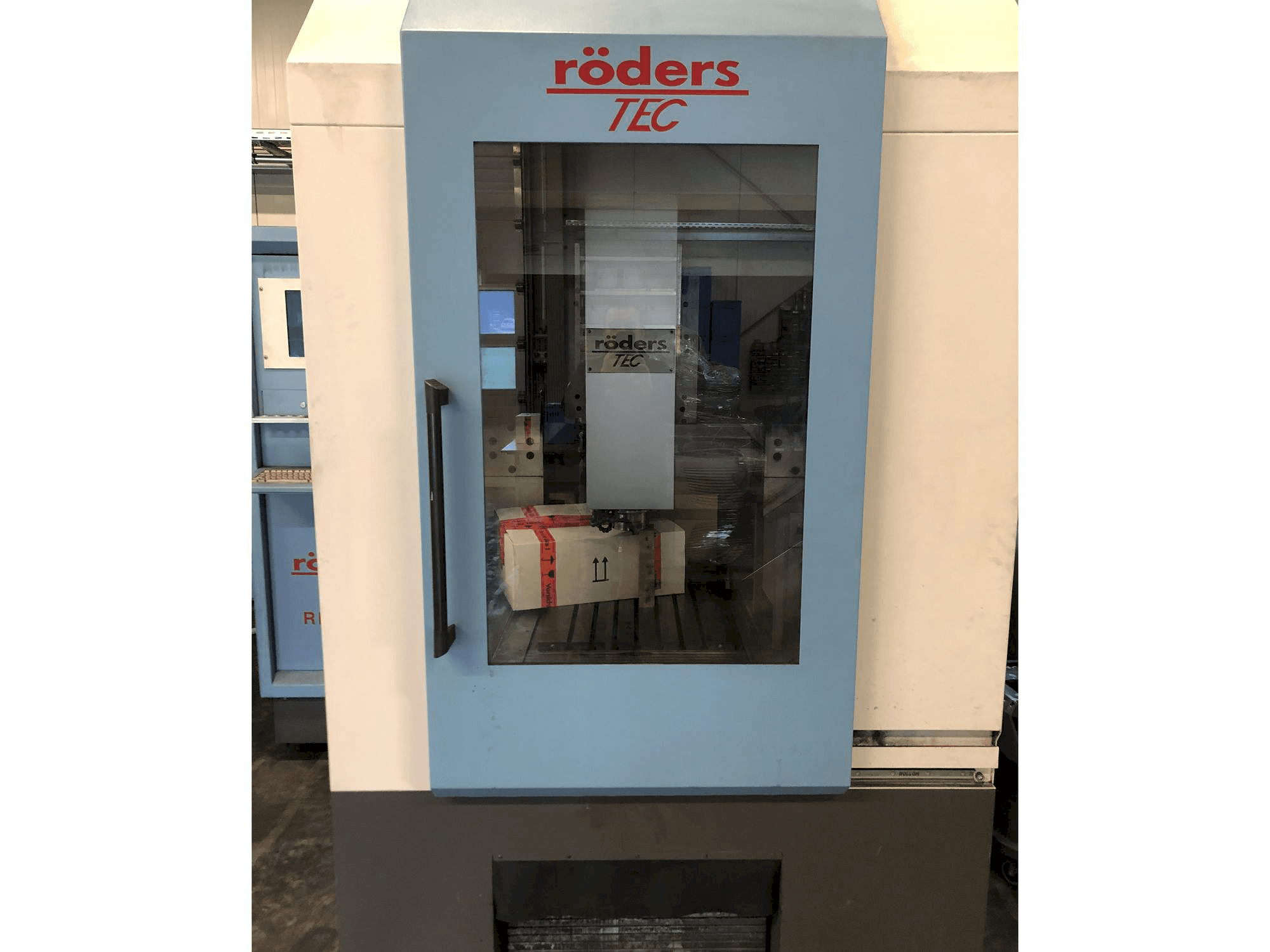

RÖDERS 600 RFM-2 Vertical Machining center

Show in original language

This RÖDERS 600 RFM-2 Vertical Machining center was manufactured in the year 2004 in Germany.

Overview

brand: RÖDERS
year: 2004
MODEL: 600 RFM-2
production hours: 28340
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: RÖDERS

Technical Information - RÖDERS 600 RFM-2

Control Unit

Control Brand: RÖDERS
Control Model: HSC control RMS6

Dimensions

Machine Depth: 3000 mm
Machine Height: 2250 mm
Machine Weight: 5400 kg

Movement

Number of Axes: 3
X-axis Travel: 600 mm
Y-axis Travel: 450 mm
Z-axis Travel: 300 mm

Technical Specification

Spindle Power: 14 kW
Spindle Speed: 42000 RPM
Taper Size: HSK 40

Additional Information

Additional equipment

Number of tools: 18
T-slots: 14 mm, spaced 63 mm
Tool measuring laser integrated in tool changer
Minimum quantity lubrication with two nozzles
Workpiece and tool cleaning compressed air nozzles
High-frequency milling spindle: Make FISCHER MFW1230/42
Cooling of bearing blocks and nuts of feed drives
Control system integration into Ethernet network
Data transmission via IR interface

Machine Benefits

Qualitative Machine Benefits

Enclosed cabin with safety glazing allows good visibility and easy crane loading
Effective sealing for processing materials like graphite, cast iron, and plastic

Technical Machine Benefits

High spindle speed (3000 - 42000 rpm) with robust spindle power (14 kw)
Advanced tool management with tool measuring laser and 18-position tool changer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
