- Röders RFM760-099 Vertical Machining Center

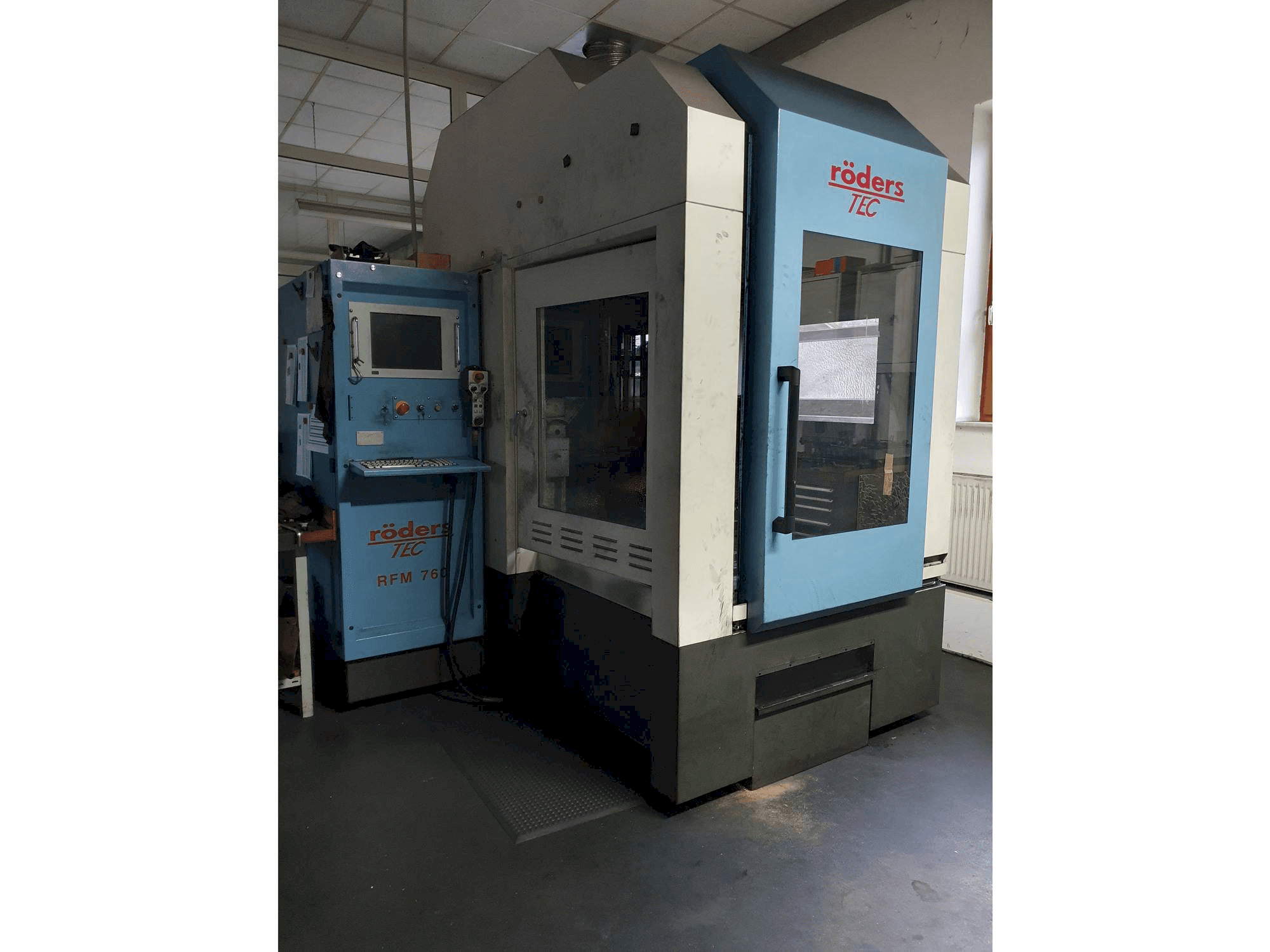

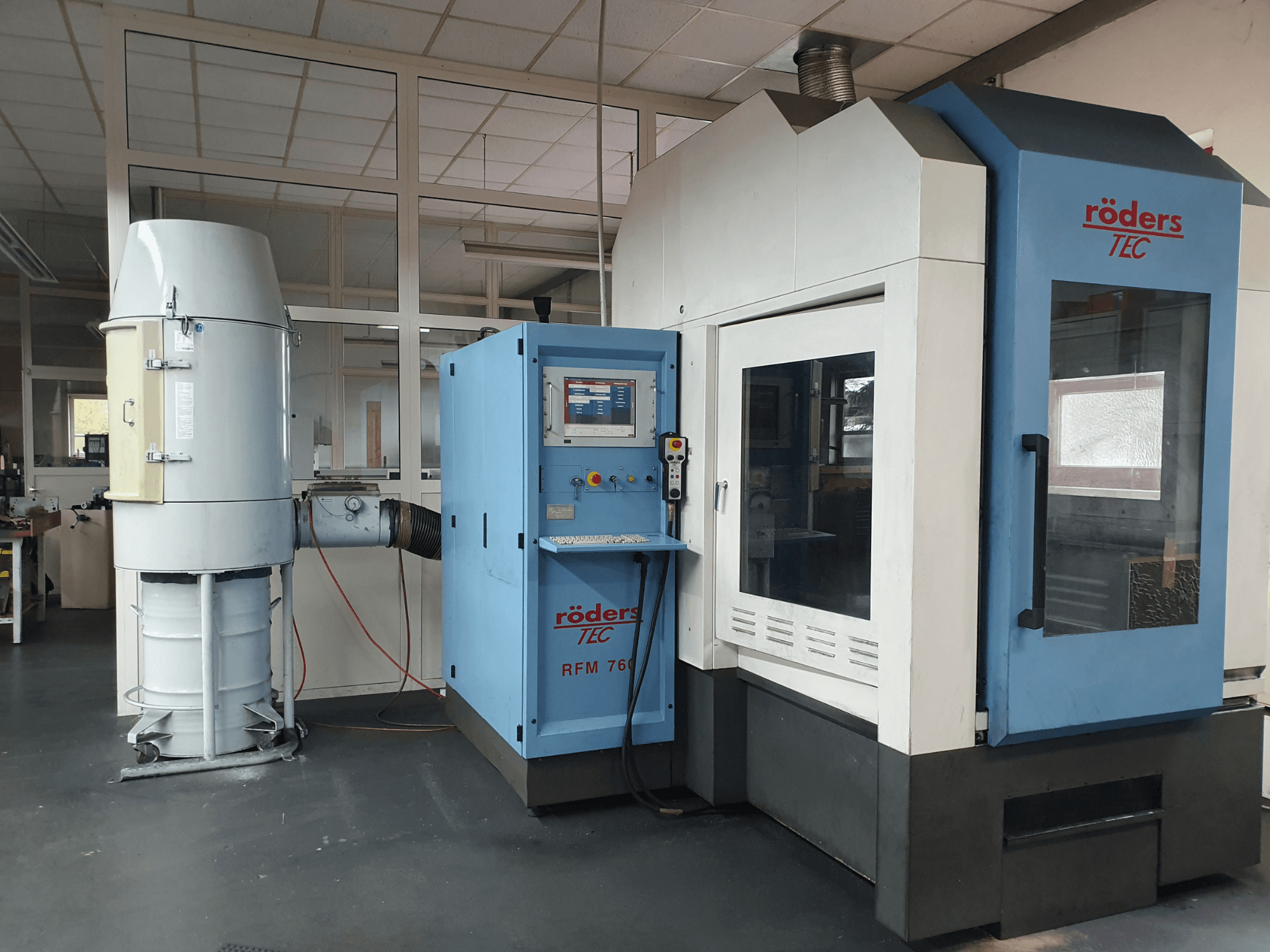

This Röders RFM760-099 Vertical Machining Center was manufactured in the year 2000. The machine has a spindle speed of 42000 rpm.
Overview
- brand: RÖDERS
- year: 2000
- MODEL: RFM 760/2
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
Technical Information - RÖDERS RFM 760/2
Dimensions
- Machine Depth: 2500 mm
- Machine Weight: 6500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 760 mm
- Y-axis Travel: 550 mm
- Z-axis Travel: 300 mm
Technical Specification
- Spindle Speed: 42000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
Tool shrink unit
Dust extraction (graphite)
Tool holders
Software: RMS6V3.15 (211)
Working Area: 760 x 550 x 300 mm
Table Size: 860 x 550 mm
Spindle: Fischer MFW-1230/42 spindle (42,000 rpm, new as of December 2022)
Spindle Taper/Mount: ISO HSK E40
Tool Changer: 25-position tool changer
Laser Tool Measurement: Integrated for length and diameter
Workpiece Measurement: IR 3D probe
Extraction System: Dust extraction (graphite)
Cooling System: Cooling unit and spray cooling for tool/workpiece
Shrink-Fitter: Röders tool shrink-fitter
Chuck: Fixed chuck (new in 2022)
Included Accessories: Milling chuck, consumables, tool holders, and manual service tools
Machine Status: In working order; EROWA clamping system and HD vise have been removed and are excluded from the deal
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
