SCHÜCO - AS 450DE-MIL-SCH-2016-00001

Name: SCHÜCO AS 450
Brand: SCHÜCO
SKU: DE-MIL-SCH-2016-00001
Price: 15000 EUR
Availability: InStock

15,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used SCHÜCO AS 450 For Sale | gindumac.com

Show in original language

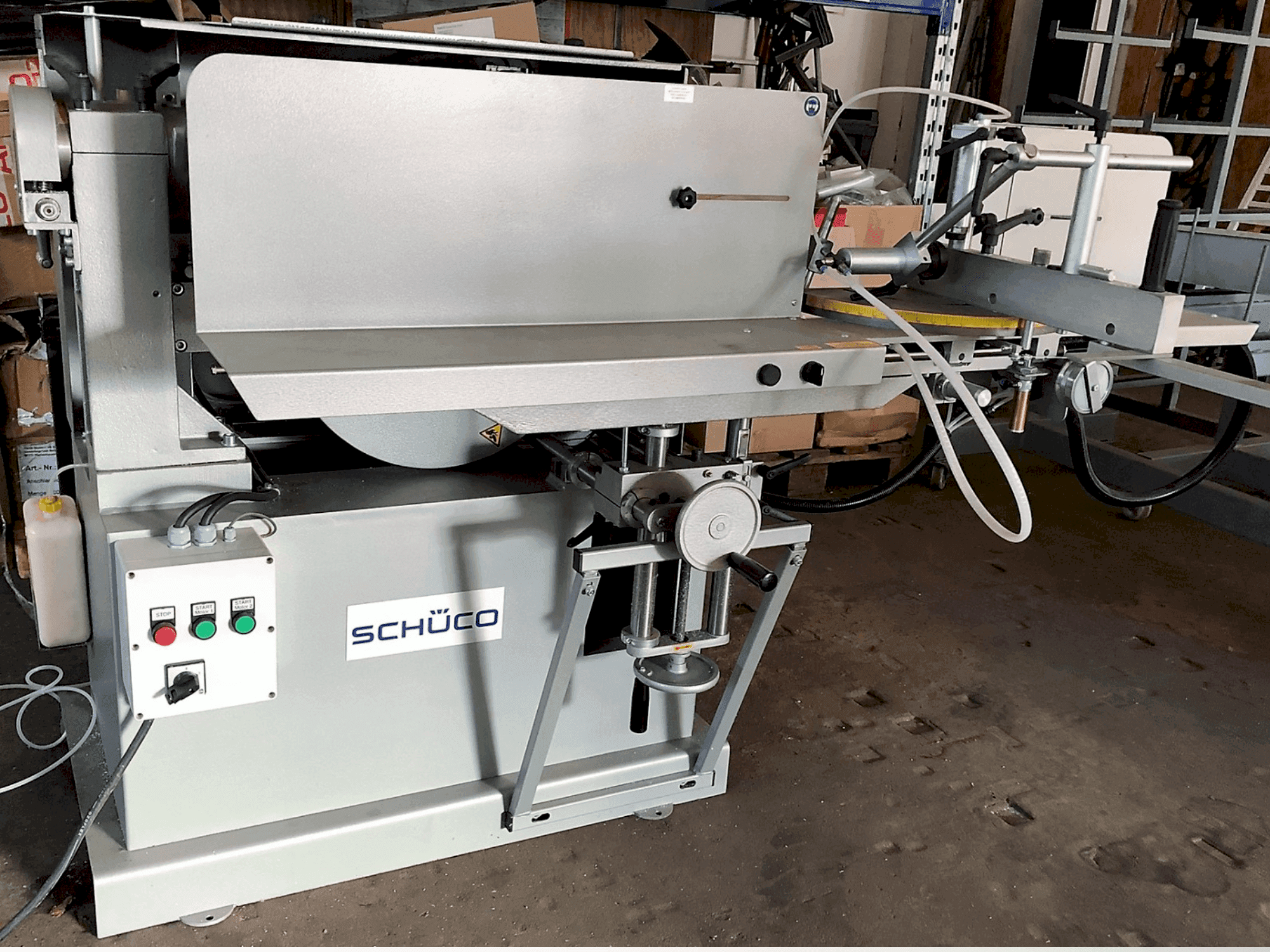

This SCHÜCO AS 450 was manufactured in 2016. A robust horizontal machining center featuring a direct drive at 2800 rpm and dual three-phase 400 V, 3 kW brake motors. It includes a vertical tool diameter of 450 mm and a horizontal diameter of 350 mm, both with a 40 mm tool holder. The machine weighs approximately 400 kg and offers adjustable sliding carriages and fixed stops. Ideal for precise notching tasks. For more information about this horizontal machining center, please reach out to us.

Overview

brand: SCHÜCO
year: 2016
MODEL: AS 450
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
availability: Immediately

Technical Information - SCHÜCO AS 450

General Data

Machine weight: 400 KG

Main drive

Spindle speed range: 2800 1/MIN
Main motor power: 2 three-phase 400 V, 3 kW brake motors

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Blade diameter: vertical unit: 450 mm horizontal unit: 350 mm
- - Tool holder: vertical unit: 40 mm diameter, horizontal unit: 40 mm diameter
- - Cutting height: 153 mm
- - Notching depth: 110 mm
- - Notching width: 250 mm
- - Air connection: 6 bar
Qualitative Machine Benefits:
- - Sliding carriage adjustable in height and depth via hand wheels
- - Fixed material stop adjustable
- - Vertical saw unit can be tilted from 90° to 45°
- - Horizontal saw unit adjustable in height and depth
- - Adjustable fixed stops for each axis

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
