SCHÜCO - MFM DC 500DE-MIL-SCH-2009-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used SCHÜCO MFM DC 500 For Sale | gindumac.com

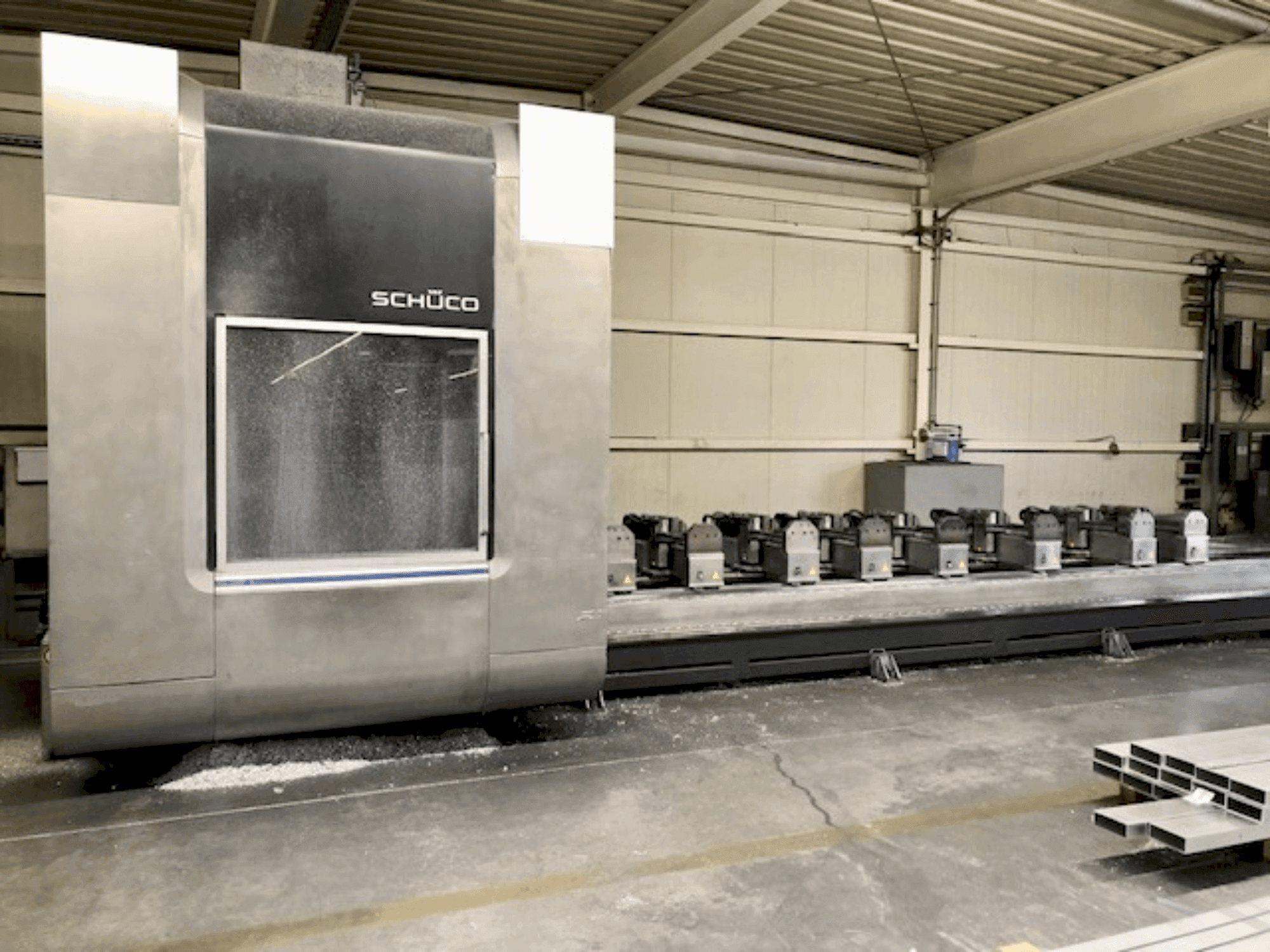

This 5-axis SCHÜCO MFM DC 500 vertical machining center was manufactured in 2009. It features a high-capacity tool magazine with 16 spaces, automatic clamping, and a robust milling motor output of 16 kW. The machine can handle a maximum processing length of 7500 mm and speeds up to 60 m/min in X/Y axes. Ideal for complex, multi-axis tasks, the SCHÜCO MFM DC 500 vertical machining center we have for sale is equipped with a 19” touch TFT color display. Contact us for more information.
Overview
- brand: SCHÜCO
- year: 2009
- MODEL: MFM DC 500
- production hours: 40000
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- availability: Immediately
Technical Information - SCHÜCO MFM DC 500
General Data
- Measurements width: 5500 MM
- Measurements depth: 15000 MM
- Measurements height: 3900 MM
- Machine weight: 12000 KG
Main drive
- Spindle speed range: 24000 1/MIN
- Spindle motor power: 16 kw
- Tool taper: HSK-63F
Movement
- X-AXIS Rapid traverse: 60 m/min
- Y-AXIS Rapid traverse: 60 m/min
- Z-AXIS Rapid traverse: 30 m/min
Additional Equipment
- - Automatic central lubrication: SPC driven
- - Air conditioning unit
- - Control panel: 19” touch TFT colour display
- - Software: SchüCam
Additional Information
- Technical Machine Benefits:
- - Number of controlled nc axes: 14
- - Processing length: 7500 mm
- - Rotation of a axis: continuously from +110° to -110°
- - Rotation of c axis: continuously from +220° to -220°
- - Number of spaces in moving tool magazine: 16
- - Number of special positions for tools: 2
- - Automatic clamping
- - Number of clamps: 8 - 12
- - High-speed processing with a maximum speed of 24,000 rpm
- - Capable of processing steel up to a wall thickness of 5 mm
- Qualitative Machine Benefits:
- - Profile supports with quick release system
- - Max. Cross section (w x h) / length – single bar processing: 400 x 300 / 7500 mm (for 200 mm tool length)
- - Min. Cross section (w x h) / length – single bar processing: 30 x 30 / 300 mm (for 200 mm tool length)
- - Max. Number of profiles per machine: up to 8 bars (depending on individual bar lengths)
- - Number of fixed profile stops: 1
- - Changing the clamps in 2 operations: automatic
- - Finish: ral 9006 (white aluminium), ral 7016 (anthracite grey)
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
