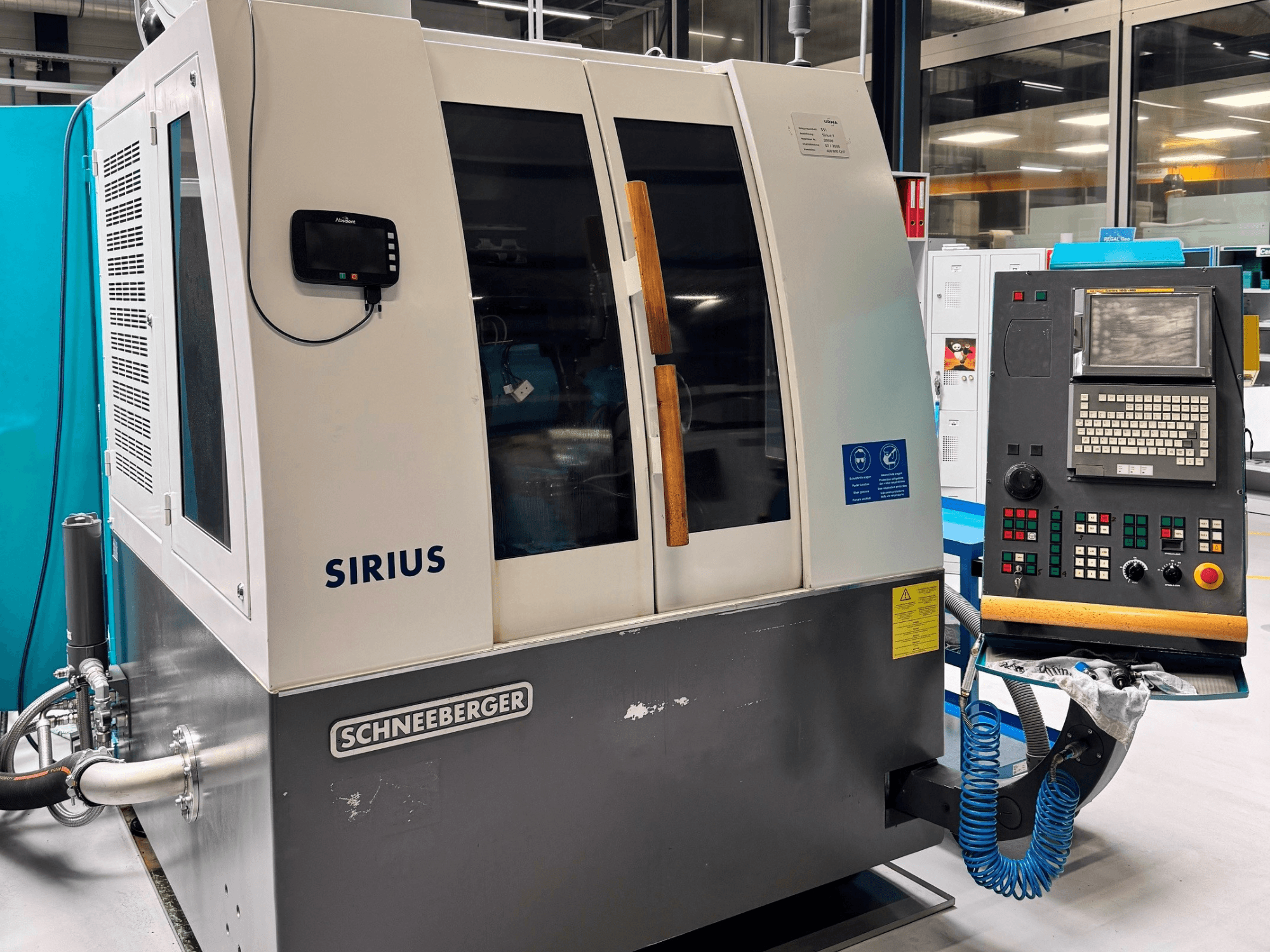

This 5-axis Schneeberger Sirius HPM was manufactured in 2006. It features a powerful control unit, GE Fanuc Series 160i-MB, and operates with grinding oil. The machine is equipped with an Absolent A5 oil mist extraction system for enhanced performance. If you are looking to get high-quality grinding capabilities, consider the Schneeberger Sirius HPM surface grinding machine we have for sale. Contact us for further details.
Overview
- brand: Schneeberger
- year: 2006
- MODEL: Sirius HPM
- production hours: 45852
- application type: Grinding
- Location: Switzerland
- machine type: Surface Grinding Machine
- control unit brand: FANUC
Technical Information - Schneeberger Sirius HPM
Control Unit
- Control Brand: FANUC
- Control Model: Series 160i-MB
Dimensions
- Machine Height: 2200 mm
- Machine Length: 2500 mm
- Machine Weight: 8000 kg
Movement
- Number of Axes: 5
- X-axis Travel: 420 mm
- Y-axis Travel: 310 mm
- Z-axis Travel: 340 mm
Technical Specification
- Spindle Power: 9 kW
- Spindle Speed: 6000 RPM
Additional Information
- Control Unit: GE Fanuc Series 160i-MB / Quinto 4
- Operating Medium: Grinding oil
- Automation: None / Without loader
- Working Voltage: 3 x 400 VAC
- Kind of Current: 3L + PE
- Frequency: 50 Hz
- Control Voltage: 230 VAC / 24 VDC
- Rating: 48 kW / 41 kW
- Rated Current: 83 A
- Optional Equipment: Absolent A5 oil mist extraction system (visible mounted on top of the machine)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
