➤ Used SCM Gabbiani A3 130 - Saw For Sale | gindumac.com

Show in original language

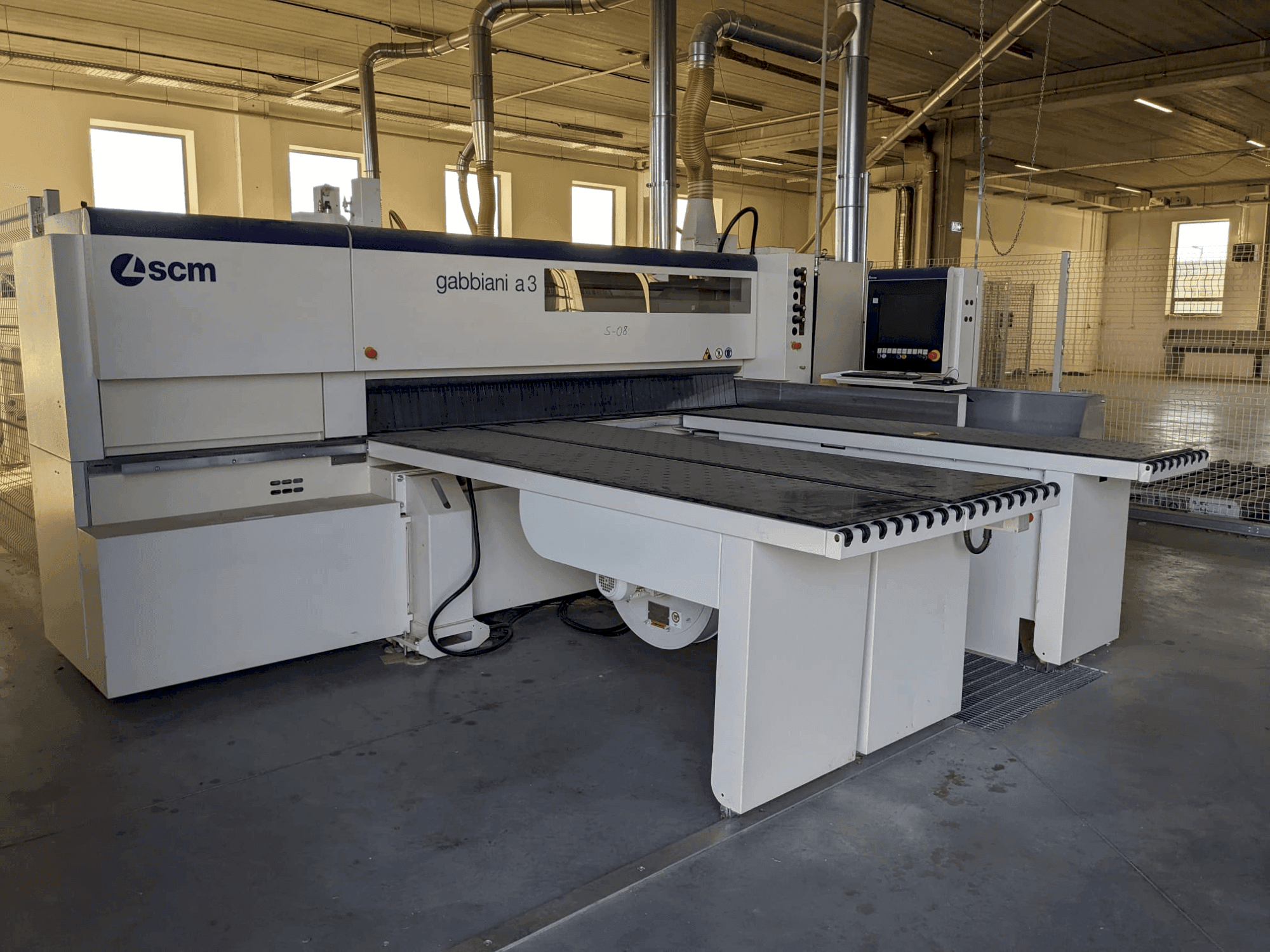

This SCM Gabbiani A3 130 panel saw was manufactured in 2019. It features a longitudinal cutting range of 3200 mm and a cross-cutting range of 2440 mm, with a main saw motor power of 18 kW and a maximum saw blade diameter of 430 mm. The machine supports a maximum panel size of 3200 x 2440 mm and can handle a loading weight up to 6500 kg. Consider the opportunity to buy this SCM Gabbiani A3 130 panel saw. Contact us for more information.

Overview

brand: SCM
year: 2019
MODEL: Gabbiani A3 130
application type: Sawing (Wood)
Location: Poland
machine type: Panel Saw

Technical Information - SCM Gabbiani A3 130

Main drive

Spindle speed range: 3500 1/MIN

Table

Table load: 6500 kg

Additional Information

Additional equipment

Shredder for waste
Tiltable side pressure rollers in the cross-cutting area
Vibration conveyor for waste after longitudinal cutting
Tiltable grippers in the longitudinal cutting area
FLEXCUT 02 with 2 movable sets and 3 double grippers in each set
Label editor with barcode printer capability
Online diagnosis

Machine Benefits

Technical Machine Benefits

Easyfix quick tool change
Precise and easy handling
Extremely secure fastening (20-24 kn)
Tested and safe system

Extra Information

Movement Saw carriage speed (longitudinal/cross-cutting): 0-170 m/min Saw carriage return speed: 170 m/min Workpiece Min./max. length of panels: 1600 / 3200 mm Min./max. panel width: 1200 / 2440 mm Min./max. belt width: 100 / 2200 mm Min. panel thickness: 10 mm Min. width of edging: 15 mm Minimum panel dimensions: 150 x 100 mm Table Max. panel dimensions: 3200 x 2440 mm Loading height: 600 mm Lifting/lowering speed: 0.75 m/min Motor power: 0.75 kW Tools EASYFIX quick mechanical fastening of the saws Mount Position (Assembly) Machine in left-hand version Media Electrical power: 400 V, 50 Hz Installed power: 35 kW Compressed air: 1200 Nl/min, 7 bar Extraction requirements: Exhaust air speed 28 m/s, total exhaust air volume 11600 m3/h

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
