- ➤ Used SCM M400F - Wood Mill For Sale | gindumac.com

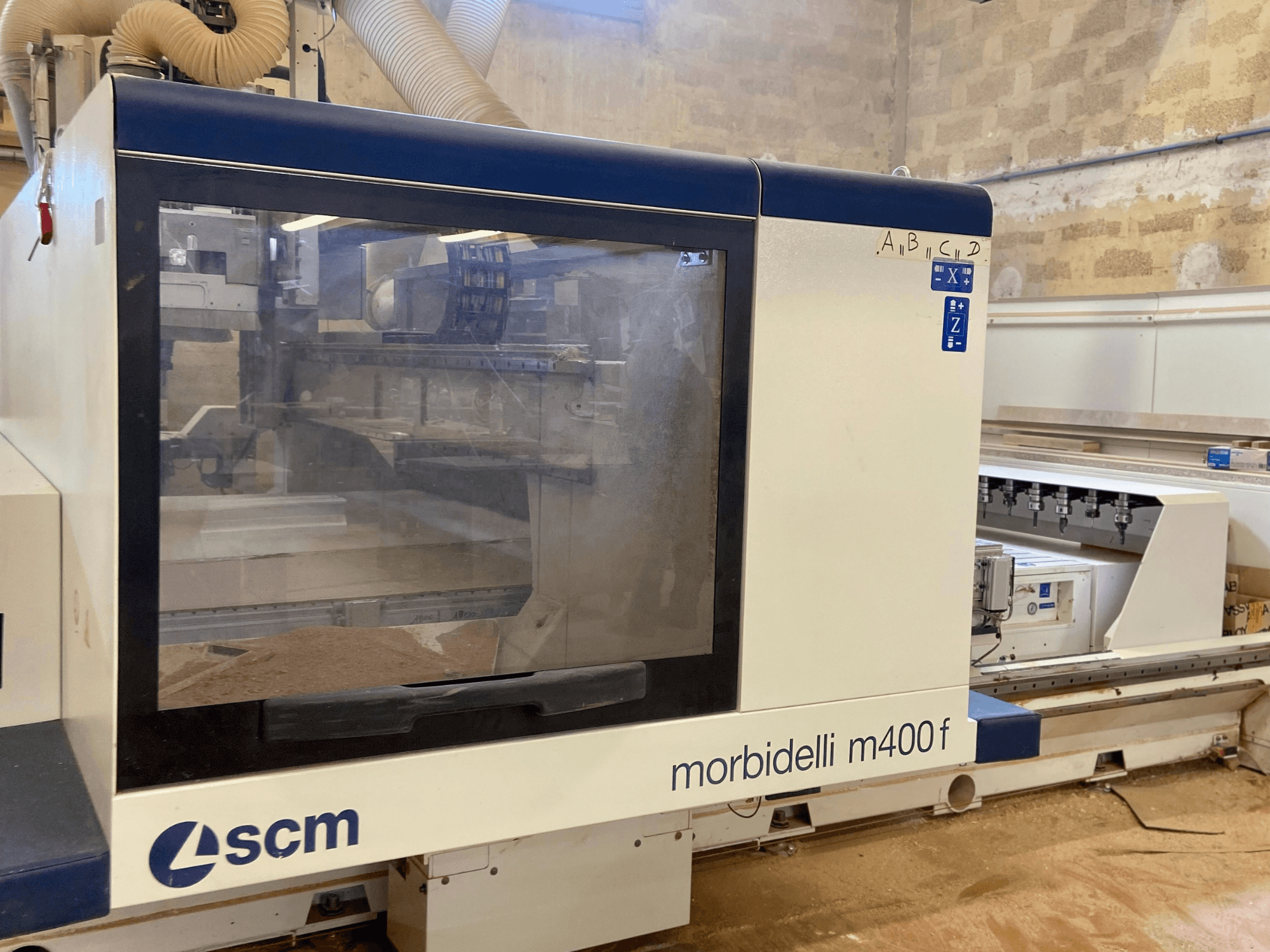

This 3s SCM M400F wood mill was manufactured in 2018. It features a modular CNC design with a multifunction worktable, ensuring high-quality machining. The machine boasts remarkable performance with a mobile gantry structure and intuitive programming via Maestro CNC software. It offers a maximum spindle speed of 24,000 RPM and a tool magazine capacity of 36 positions. If you are looking to get high-quality milling capabilities, consider the SCM M400F machine we have for sale. Contact us for further details.
Overview
- brand: SCM
- year: 2018
- MODEL: M400F
- application type: Milling (Wood)
- Location: France
- machine type: Wood Mill
Technical Information - SCM M400F
Movement
- Number of Axes: 3
- X-axis Travel: 3650 mm
- Y-axis Travel: 2120 mm
- Z-axis Travel: 170 mm
Technical Specification
- Spindle Power: 15 kW
- Spindle Speed: 24000 RPM
Additional Information
Panel clearance in Z: 170 mm
Workpiece length in dual-station mode: 1650 mm
Axes speeds: vector speed X–Y 85 m/min; Z 30 m/min
Tool magazine: up to 36 positions
Drilling unit: 25 independent vertical spindles; up to 12 independent horizontal spindles; max 8,000 rpm
Integrated blades: X-axis blade Ø125 mm; tilting blade 0–90° Ø160 mm
Operations: vertical drilling on panel surface; horizontal drilling on all 4 sides; disc cutter milling; 3/4/5-axis milling
5-axis operator unit: “Prisma”
CNC/Software: Maestro CNC (“Xilog Maestro”)
Additional equipment
Automated cell version available with loading lift and unloading conveyor belt (optional/subject to configuration)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
