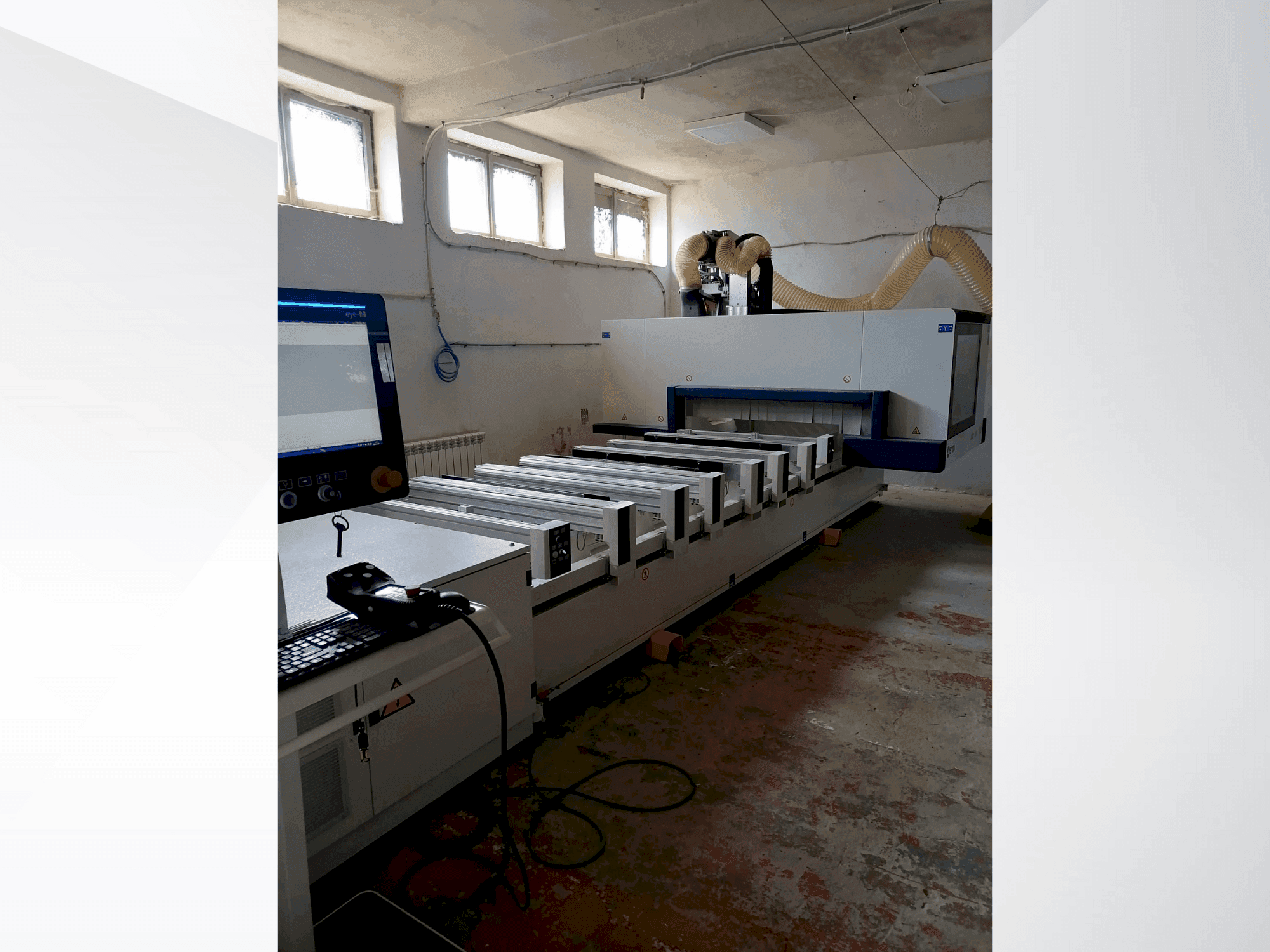

Front view of SCM Morbidelli M100  machine

SCM - Morbidelli M100PL-WOO-SCM-2019-00001

65,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis SCM Morbidelli M100 woodworking machine was manufactured in 2019. It features a working area of 3110x1320 mm, with a pass-through height of 180 mm. Equipped with a vertical milling spindle of 9.5 kW and a speed range of 1500-24000 rpm, it also includes a tool magazine with a capacity for 14 tools. The integrated saw and multiple drilling units enhance versatility. A great opportunity to buy this SCM Morbidelli M100 woodworking machine. Contact us for further details regarding this woodworking machine.

Overview

  • brand: SCM
  • year: 2019
  • MODEL: Morbidelli M100
  • production hours: 7300
  • application type: CNC Wood Machining
  • Location: Poland
  • machine type: CNC Router
  • availability: Immediately

Technical Information - SCM Morbidelli M100

Main drive

  • Spindle speed range: 1500-24000 (Vertical milling spindle), 8000 (Drilling Head) 1/MIN
  • Spindle motor power: 9.5 kW
  • Spindle bore: 10 mm
  • Tool taper: HSK 63F
  • Number of axis: 3

Movement

  • X-AXIS Movement: 3110 mm
  • Y-AXIS Movement: 1320 mm
  • Z-AXIS Movement: 180 mm

Tools

  • Max weight: 8 kg
  • Max tool diameter: 280 mm (saw), 180 mm (cutter or angular unit)

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Drilling head f23l with 13 independent vertical spindles and 5 horizontal drilling units
      • - Integrated saw along x-axis
      • - Programmable right/left rotation air cooling system with coaxial fan ceramic bearings
      • - Distance between positions: 7 positions at 110 mm, 7 positions at 130 mm
      • - Positioning accuracy (repeatability) x/y/z-axis: ± 0. 003 mm
    • Qualitative Machine Benefits:
      • - Work table tv flex with areas of work: a (i offset) and d (l offset)

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
