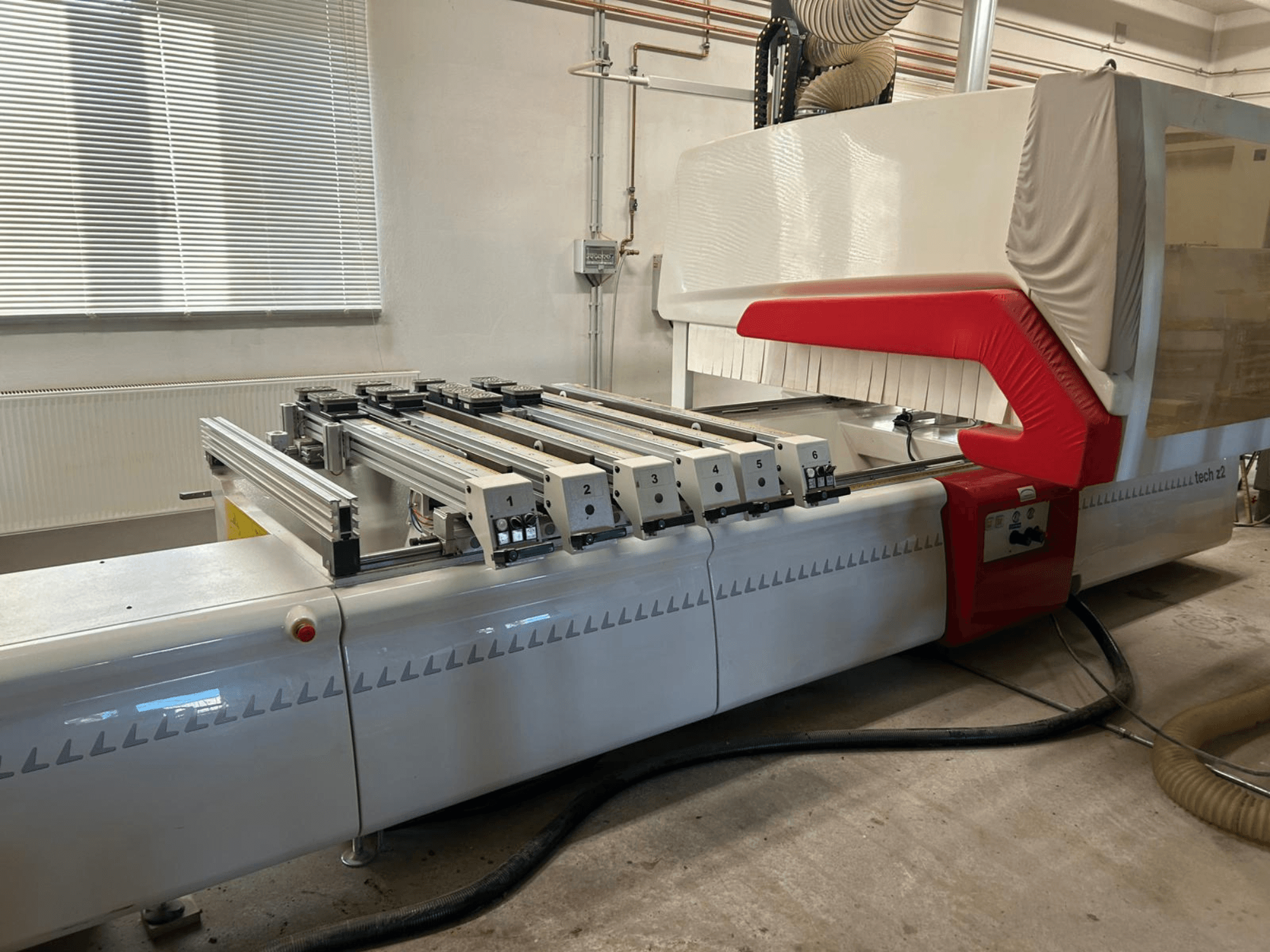

This 4-axis SCM TECH Z2-27-C wood boring machine was manufactured in 2010. It features a maximum workpiece height of 160 mm, length of 2700 mm, and width of 1300 mm. The machine includes a routing spindle and a horizontal boring unit, ensuring versatility in operations. If you are looking to get high-quality wood processing capabilities, consider the SCM TECH Z2-27-C machine we have for sale. Contact us for further details.
Overview
- brand: SCM
- year: 2010
- MODEL: TECH Z2-27-C
- production hours: 1000
- application type: Boring & Drilling (Wood)
- Location: Germany
- machine type: Wood Boring Machine
Technical Information - SCM TECH Z2-27-C
Dimensions
- Machine Weight: 2000 kg
Movement
- Number of Axes: 4
- X-axis Travel: 3060 mm
- Y-axis Travel: 1735 mm
- Z-axis Travel: 250 mm
Additional Information
Electrical: 400 V, 3 + N, 33 A, 50 Hz, breaking capacity 10 kA
Control: Xilog Plus
Machining units: saw unit (included), horizontal boring unit (included), routing spindle: 1
Workpiece capacity: max height 160 mm; max length 2700 mm; max width 1300 mm; max width (double posts) 1210 mm
Max travel speed: 60 m/min
Clamping system: pneumatic locking bars; number of clamping bars: 6
Suction cup sizes: 120x120 mm and 55x120 mm
Machine on: 5.500 h
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
