Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.

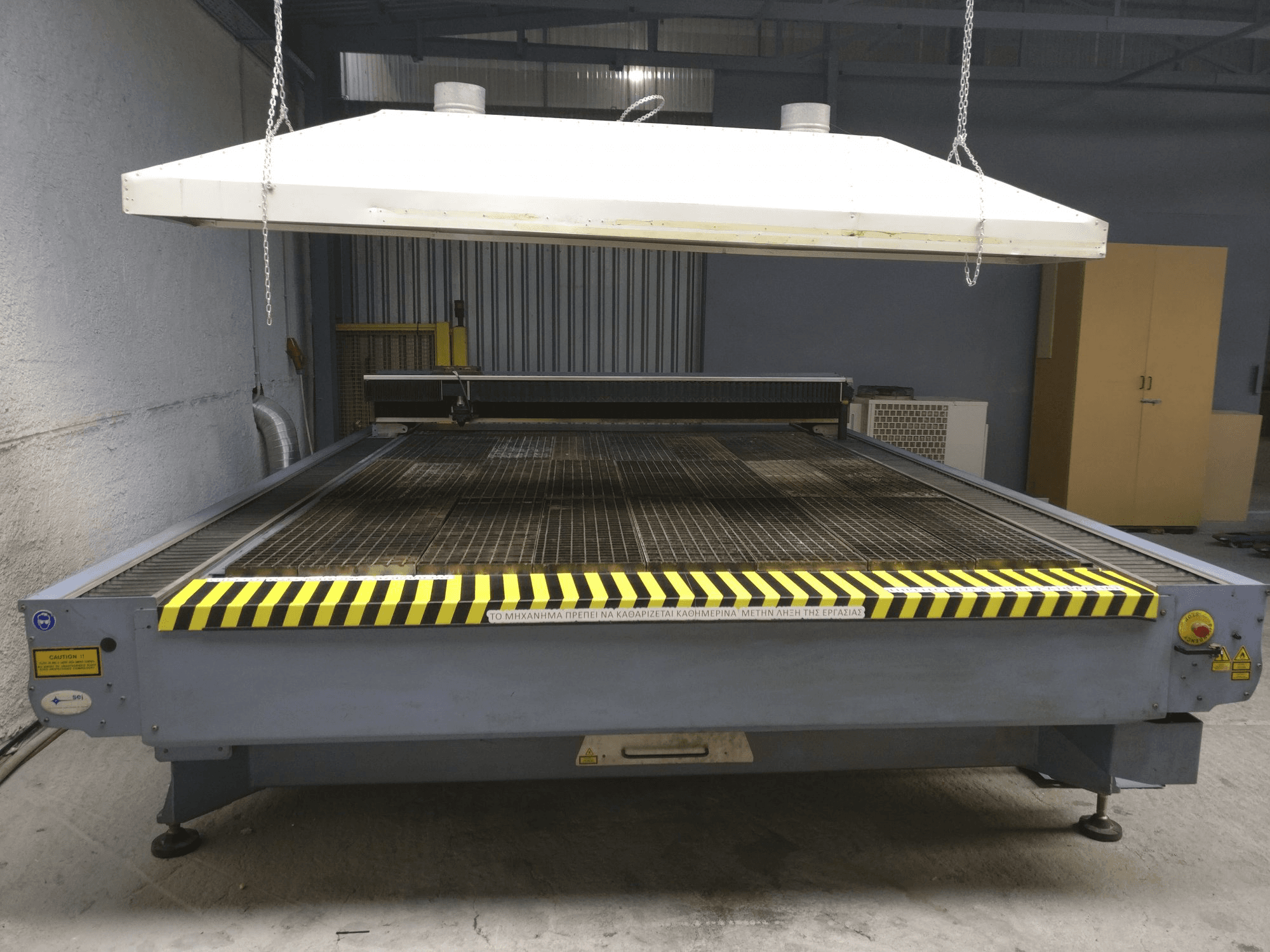

SEI Laser - MERCURY 603GR-LAS-SEI-2006-00001
Do you have further questions? Contact us.

Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com

- GINDUMAC
- Products
- Sheet Metal Machinery
- SEI Laser MERCURY 603 Laser Cutting Machine
This SEI Laser MERCURY 603 Laser Cutting Machine was manufactured in Italy in 2006 and has a working record of 22000 production hours. Operated through a ROFIN SC x30 control unit, the model has low maintenance costs and stands out for its accurate laser: it can work with several materials (steel, stainless steel, wood and acrylic) at excellent speed and providing cutting quality without the need of further finishes. In the past, this machine has worked mostly with acrylic of up to 25 mm and wood of up to 50 mm, producing displays, exhibition kiosks and mirrors for various industry types. A complementary metal head (by SEI Laser) is included as additional equipment.
Overview
- brand: SEI Laser
- year: 2006
- MODEL: MERCURY 603
- production hours: 22000
- application type: Cutting
- Location: Greece
- machine type: CO2 Laser Cutting Machine
Technical Information - SEI Laser MERCURY 603
General Data
- Measurements width: 4250 mm
- Measurements depth: 3050 mm
- Measurements height: 1250 mm
- Machine weight: 3500 kg
Control Unit
- Model: SC x30
Main drive
- Laserpower: 0.35 kW
- Laser type: CO2
- Laser brand: SEI Laser
Movement
- X-AXIS Movement: 2080 mm
- Y-AXIS Movement: 3060 mm
- Z-AXIS Movement: 100 mm
Workpiece
- Workpiece x: 3050 mm
- Workpiece y: 2050 mm
- Workpiece z: 25 mm
- Workpiece weight: 200 kg
Max Material thickness
- Steel: 3 mm
- Stainless steel: 2 mm
Media
- Main electronic connection: 400 V / 50-60 Hz
- Power consumption: 21 kW / 32A
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
