➤ Used SEIGER SLZ 1200S For Sale | gindumac.com

Show in original language

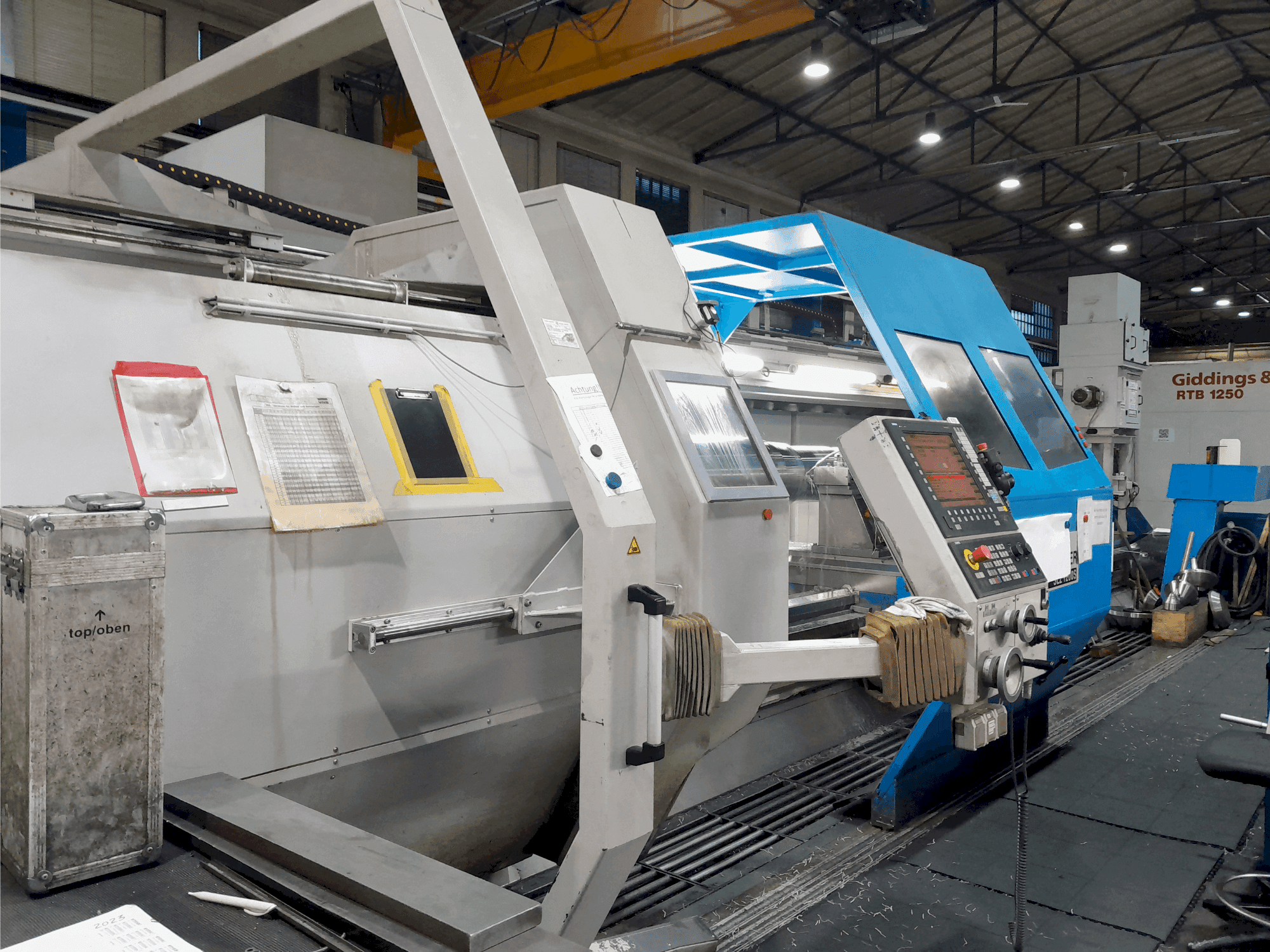

This horizontal turning machine was manufactured in 2013. The SEIGER SLZ 1200S features a peak width of 6000mm, circulation diameter over bed track 1250mm, and a spindle diameter in the front bearing of 240mm. It supports a maximum torque on the spindle of 12,000 Nm and a speed range of 5-710 min-1. Consider the opportunity to buy this SEIGER SLZ 1200S horizontal turning machine. Contact us for more information about this machine.

Overview

brand: SEIGER
year: 2013
MODEL: SLZ 1200S
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine

Technical Information - SEIGER SLZ 1200S

Dimensions

Machine Depth: 15000 mm
Machine Height: 3000 mm
Machine Weight: 29000 kg

Technical Specification

Spindle Speed: 710 RPM

Additional Information

Additional equipment

Tailstock with quill diameter 220mm and quill stroke 315mm
Steady rest with passage 450mm
Permissible workpiece dimensions: Between centre without steady rest: 7000 kg / Between centres with a steady rest: 8500 kg / Between centres with two steady rests: 10000 kg
Overhung in the face plate: 2200 kg
Column movement: 3500 kg
Electric control cabinet: 1000 kg
Machine centre width: 6000 mm: 125000 x 3400 x 2780 mm

Machine Benefits

Technical Machine Benefits

Peak width 6000 mm
Circulation diameter over bed track 1250 mm / circulation diameter over flat slide 870 mm
Sliding movement of the facing slide 700 mm
Bed width 900 mm
Spindle diameter in the front bearing 240 mm
Chuck diameter 110 mm
X feed force 100% ed 220 mm / z feed force 100% ed 315 m / y rapid traverse 4 m/min
Mx rapid traverse 6 m/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
