Sodick VL 400Q

Photo Gallery

Sodick - VL 400QSK-EDM-SOD-2017-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

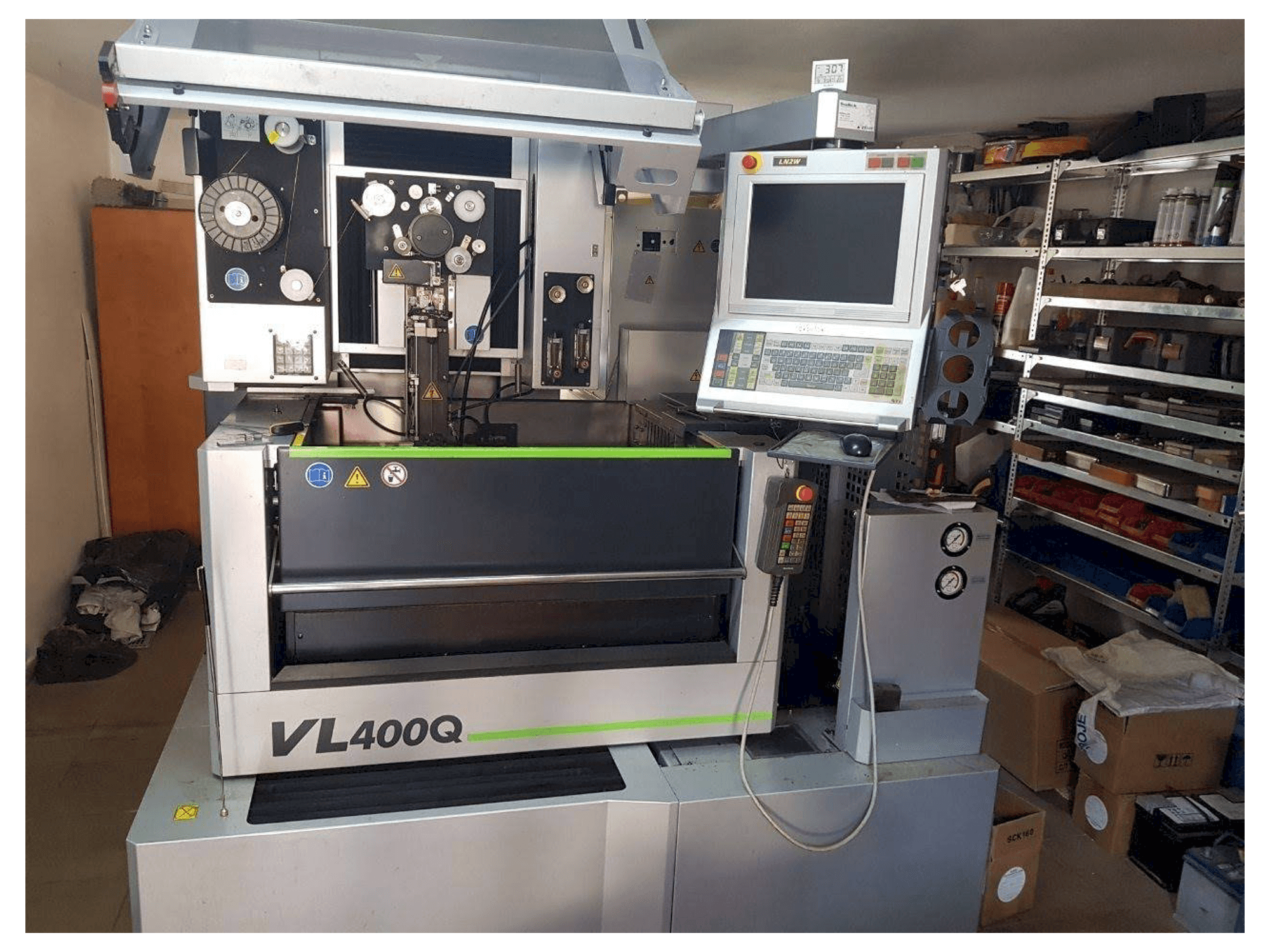

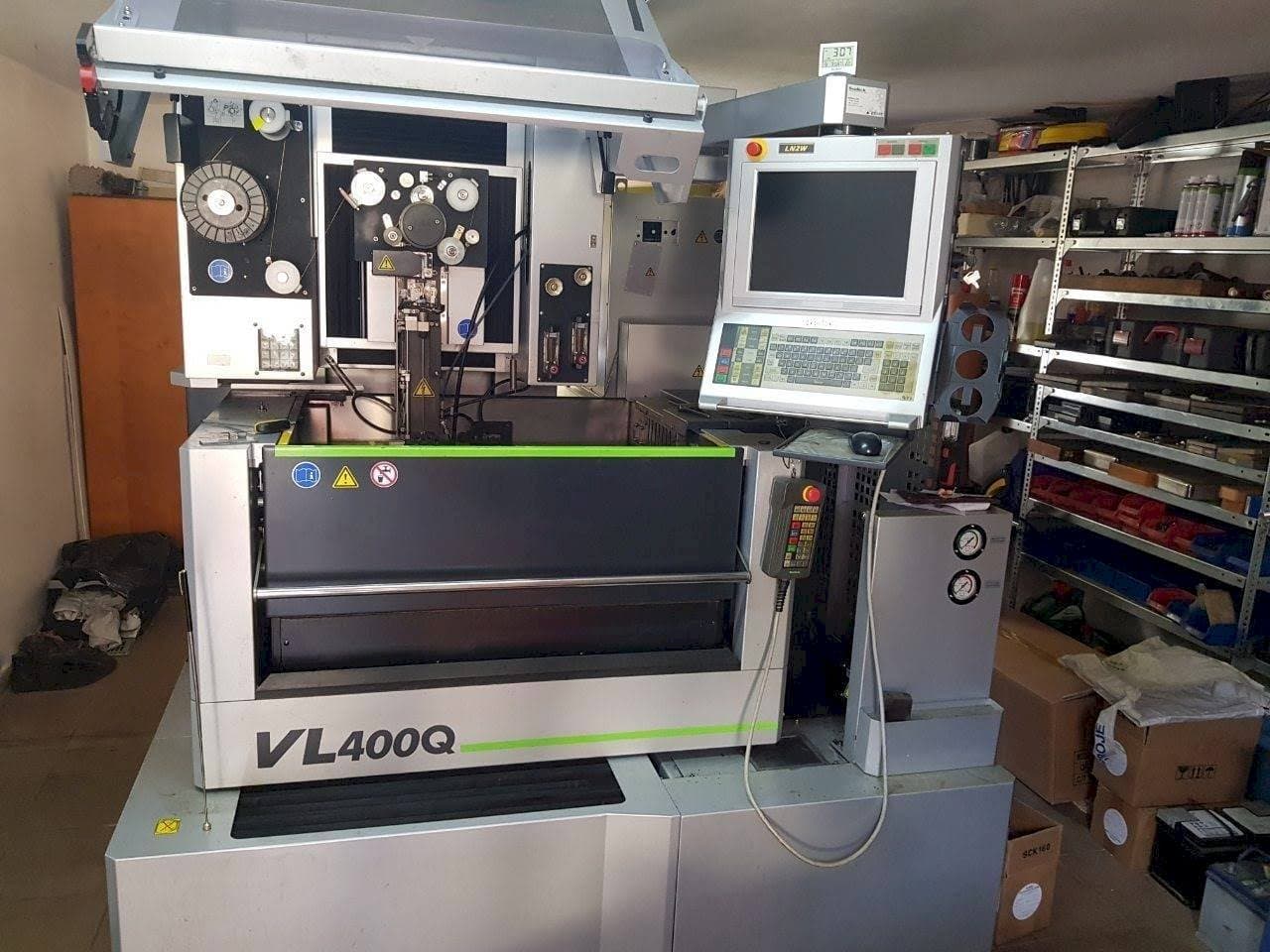

Sodick VL 400Q Erosion Machine

Show in original language

This Sodick VL 400Q Erosion Machine was made in 2017 in Japan. It has been working for only 3100 hours. It is equipped with a Sodick LN2W control unit. This machine can work with a wire diameter of 0.1 to 0.3 mm. Machine in top condition, like new.

Overview

brand: Sodick
year: 2017
MODEL: VL 400Q
production hours: 3100
application type: EDM
Location: Slovakia
machine type: Wire EDM Machine
control unit brand: SODICK

Technical Information - Sodick VL 400Q

Control Unit

Control Brand: SODICK
Control Model: LN2W

Dimensions

Machine Depth: 2310 mm
Machine Height: 1990 mm
Machine Weight: 2750 kg

Movement

X-axis Travel: 400 mm
Y-axis Travel: 300 mm
Z-axis Travel: 220 mm

Technical Specification

Max. Wire Diameter: 0.3 mm
Min. Wire Diameter: 0.1 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Machine in top condition, like new!

Technical Machine Benefits

Wire feed speed (max. ) 420 mm/sec
Work tank dimensions (w×d) 860 x 690 mm
U x v axis travel 90 x 90 mm
Taper angle (at workpiece thickness of 120mm) +/- 15 degrees
Wire tension 3-23 n
Distance from floor to table top 900 mm
Dielectric capacity/amount 380 kg/590 l
"filtration 2 replaceable paper filters (internal-pressure type)"
Linear motor + absolute linear scales (x, y, u, v axis)
Ceramic components

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
