- ➤ Used SPINNER VC 560 For Sale | gindumac.com

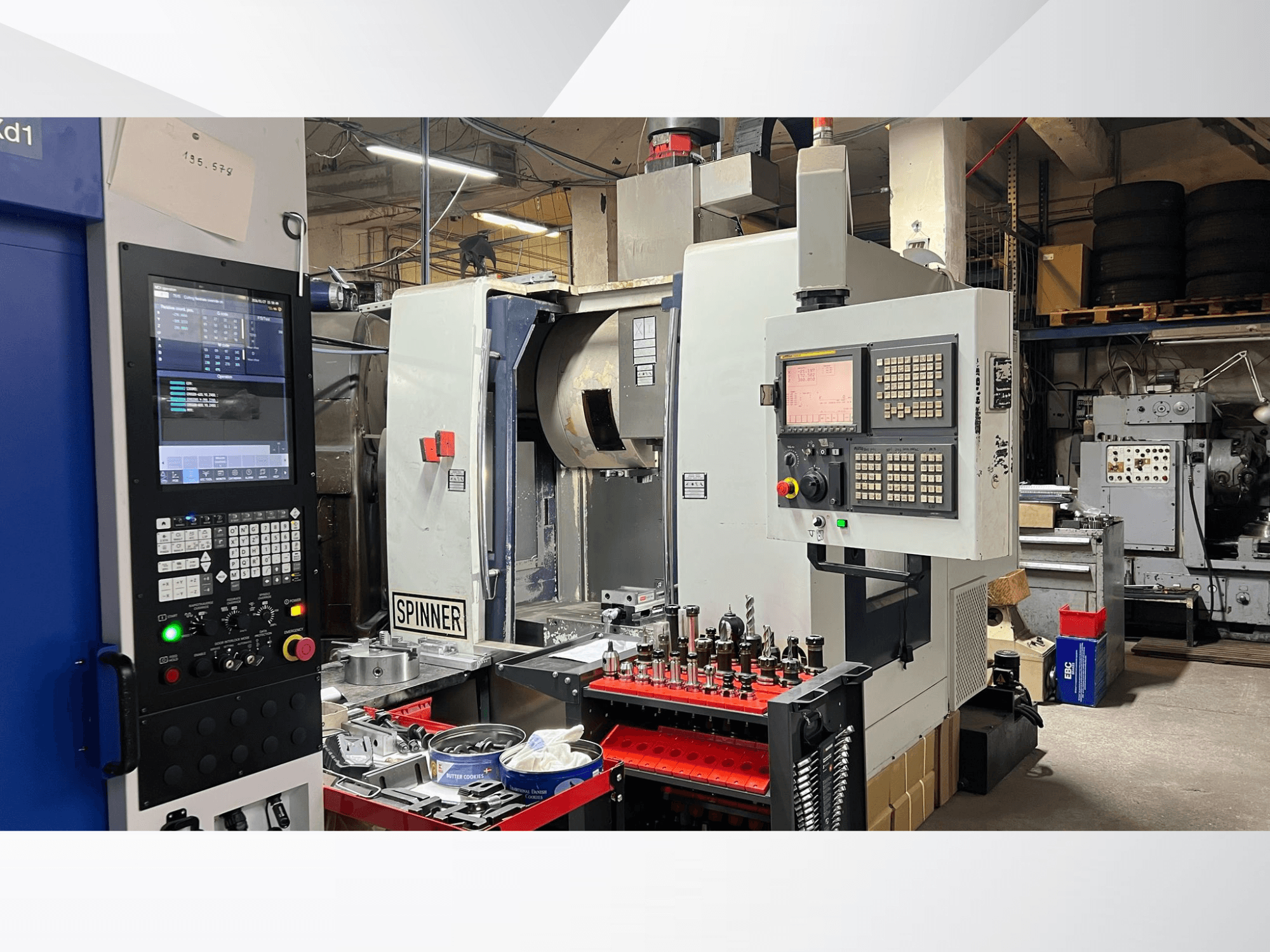

This 3s SPINNER VC 560s was manufactured in 2007. It is a CNC Milling Machine featuring a 3-axis configuration, prepared for a 4th axis (included but not installed). The machine is operational and comes complete with all tooling and a tool cabinet. With a maximum spindle speed of 12,000 rpm and rapid traverse of 48 m/min, consider the opportunity to buy this SPINNER VC 560 vertical machining centre. Contact us for further details.
Overview
- brand: SPINNER
- year: 2007
- MODEL: VC 560
- application type: Milling
- Location: Romania
- machine type: Vertical Machining Centre
Technical Information - SPINNER VC 560
Dimensions
- Machine Height: 2500 mm
- Machine Length: 2400 mm
- Machine Weight: 5500 kg
- Machine Width: 1800 mm
- Table Load: 250 kg
Movement
- X-axis Travel: 560 mm
- Y-axis Travel: 410 mm
- Z-axis Travel: 410 mm
Technical Specification
- Max. Tool Weight: 5 kg
- Spindle Speed: 12000 RPM
- Taper Size: SK 40
Additional Information
Condition: Operational; reportedly very low usage
Control: To be confirmed
Power supply: 3 x 400 V / 50 Hz
Total power: 20 kVA
Compressed air: 6 bar
Table: 650 x 410 mm; 3 T-slots (14 mm)
Rapid traverse: 48 m/min
Tool magazine: 24 positions; max tool Ø 77 mm (125 mm with adjacent pocket free); max tool length 200 mm; tool change time 1.3 s
Coolant system: 250 L
Spindle hours: Unknown (reported very low)
Additional equipment
New 4th axis (included, never installed, unused, still in box)
Complete tooling set included (as shown in the pictures)
Tool cabinet (as shown in the pictures)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
