SPINNER - JCL-75/1000-TC 82SI-TUR-SPI-2003-00001

14,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

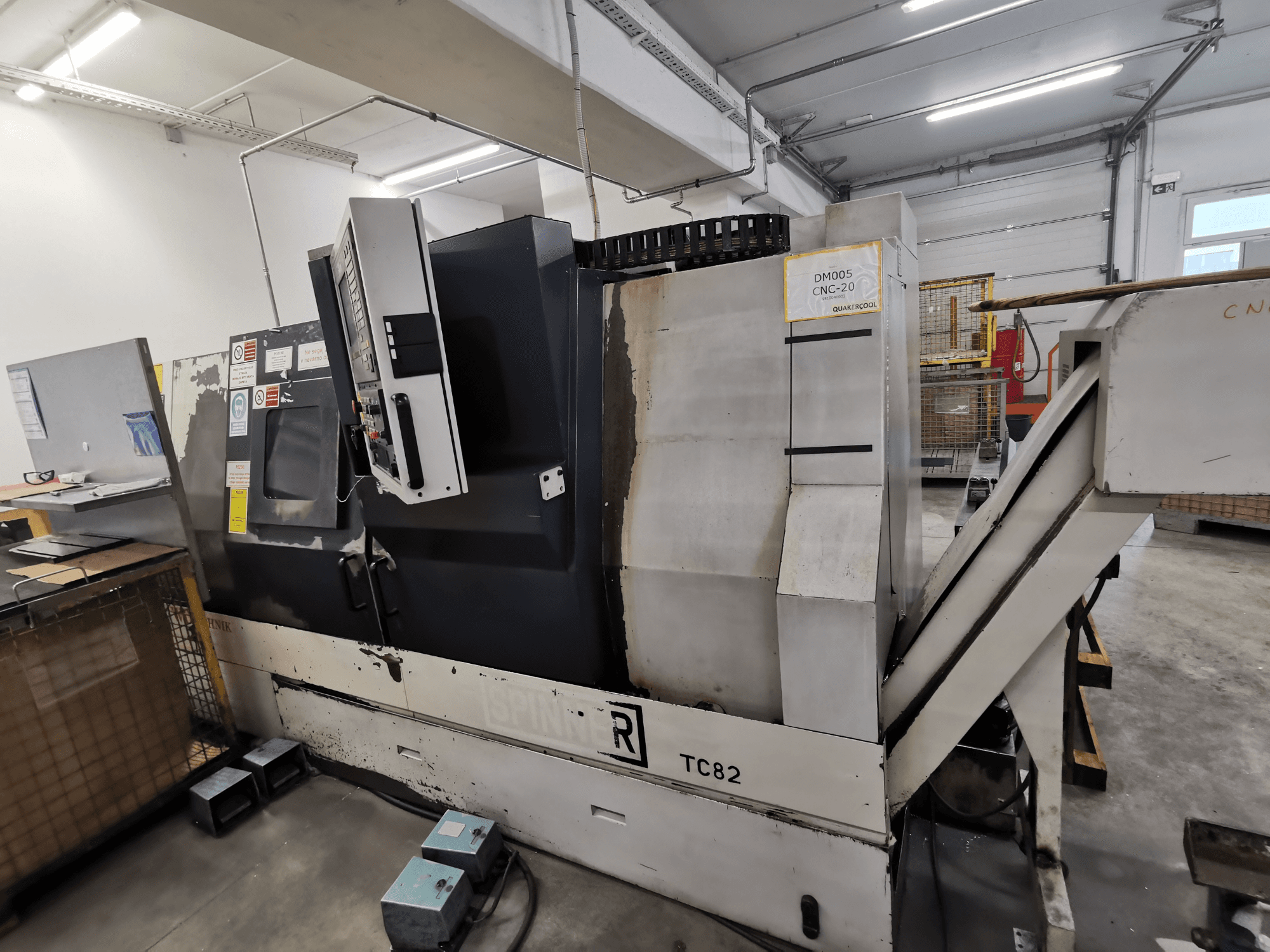

This SPINNER JCL-75/1000-TC 82 was manufactured in 2003. A robust horizontal turning machine featuring a max turning diameter over bed of 555 mm and over carriage of 350 mm. It includes a 12-station turret with a VDI 40 tool interface and a spindle motor power of 30 kW. Consider the opportunity to buy this SPINNER JCL-75/1000-TC 82 horizontal turning machine. Contact us for more information about this machine.

Overview

  • brand: SPINNER
  • year: 2003
  • MODEL: JCL-75/1000-TC 82
  • production hours: 78554
  • application type: Turning
  • Location: Slovenia
  • machine type: Horizontal Turning Machine
  • control unit brand: SIEMENS

Technical Information - SPINNER JCL-75/1000-TC 82

Control Unit

  • Control Brand: SIEMENS
  • Control Model: Sinumerik

Dimensions

  • Machine Length: 4900 mm
  • Machine Weight: 8200 kg

Movement

  • Number of Axes: 2
  • X-axis Travel: 305 mm
  • Z-axis Travel: 1140 mm

Technical Specification

  • Spindle Power: 30 kW
  • Spindle Speed: 3200 RPM

Additional Information

  • Turning capacity

    • Max turning diameter over bed: 555 mm

    • Max turning diameter over carriage: 350 mm

  • Spindle

    • Bar capacity: 75 mm

    • Standard chuck diameter: 315 mm

    • Optional chuck diameter: 400 mm

  • Main spindle motor

    • Torque: 1055 Nm

  • Turret

    • Number of stations: 12

    • Tool interface: VDI 40

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
