➤ Used SPINNER MVC 1600 For Sale | gindumac.com

Show in original language

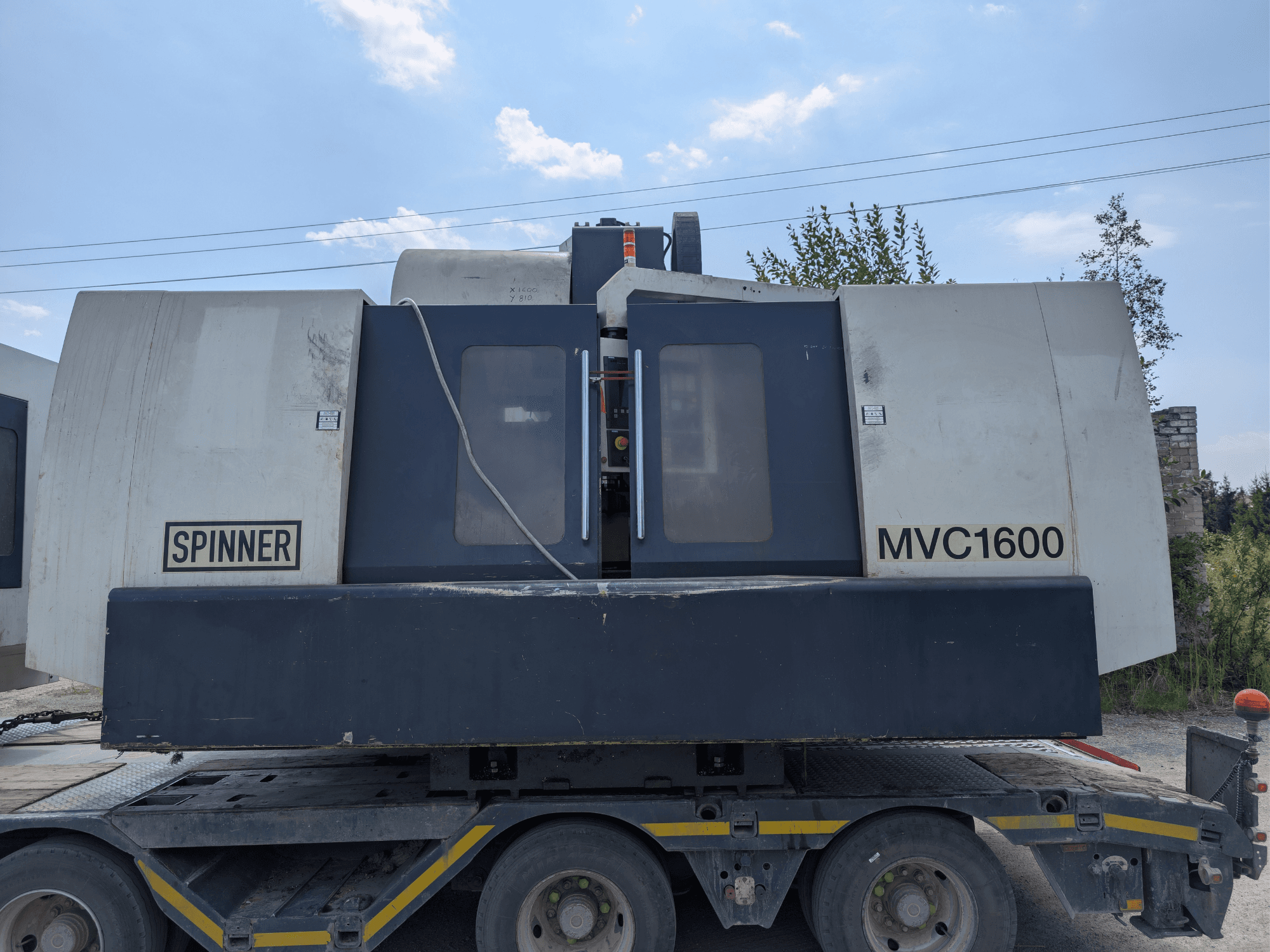

This 3-axis SPINNER MVC 1600 was manufactured in 2006. It features an impressive X-axis travel of 1,600 mm, Y-axis travel of 810 mm, and Z-axis travel of 700 mm. The machine includes a robust table size of 1,800 × 810 mm and a maximum table load of 2,000 kg. If you are looking to get high-quality machining capabilities, consider the SPINNER MVC 1600 vertical machining centre we have for sale. Contact us for further details.

Overview

brand: SPINNER
year: 2006
MODEL: MVC 1600
application type: Milling
Location: Lithuania
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - SPINNER MVC 1600

Control Unit

Control Brand: SIEMENS
Control Model: 840D Solution Line

Dimensions

Machine Weight: 13000 kg
Table Load: 2000 kg

Movement

Number of Axes: 3
X-axis Travel: 1600 mm
Y-axis Travel: 810 mm
Z-axis Travel: 700 mm

Technical Specification

Spindle Power: 22 kW
Spindle Speed: 10000 RPM
Taper Size: SK 40
Tool Stations: 24

Additional Information

Table: 1,800 × 810 mm
Rapid traverse (X/Y/Z): 18 / 18 / 15 m/min
Probing interface: Available (probe not specified)
Electrical: 3/PE ~ 400 V, 50/60 Hz; rated current 50 A
Electrical cabinet: Habor Precise Industries heat pipe heat exchanger (Model 7A2)
Drive system: Siemens SIMODRIVE 611 modular drive system
Logistics: Crane loading on truck available (~800 EUR)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
