SPINNER - TC 800DE-TUR-SPI-2020-00003

Name: SPINNER TC 800
Brand: SPINNER
SKU: DE-TUR-SPI-2020-00003
Price: 115000 EUR
Availability: InStock

115,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used SPINNER TC 800 For Sale | gindumac.com

Show in original language

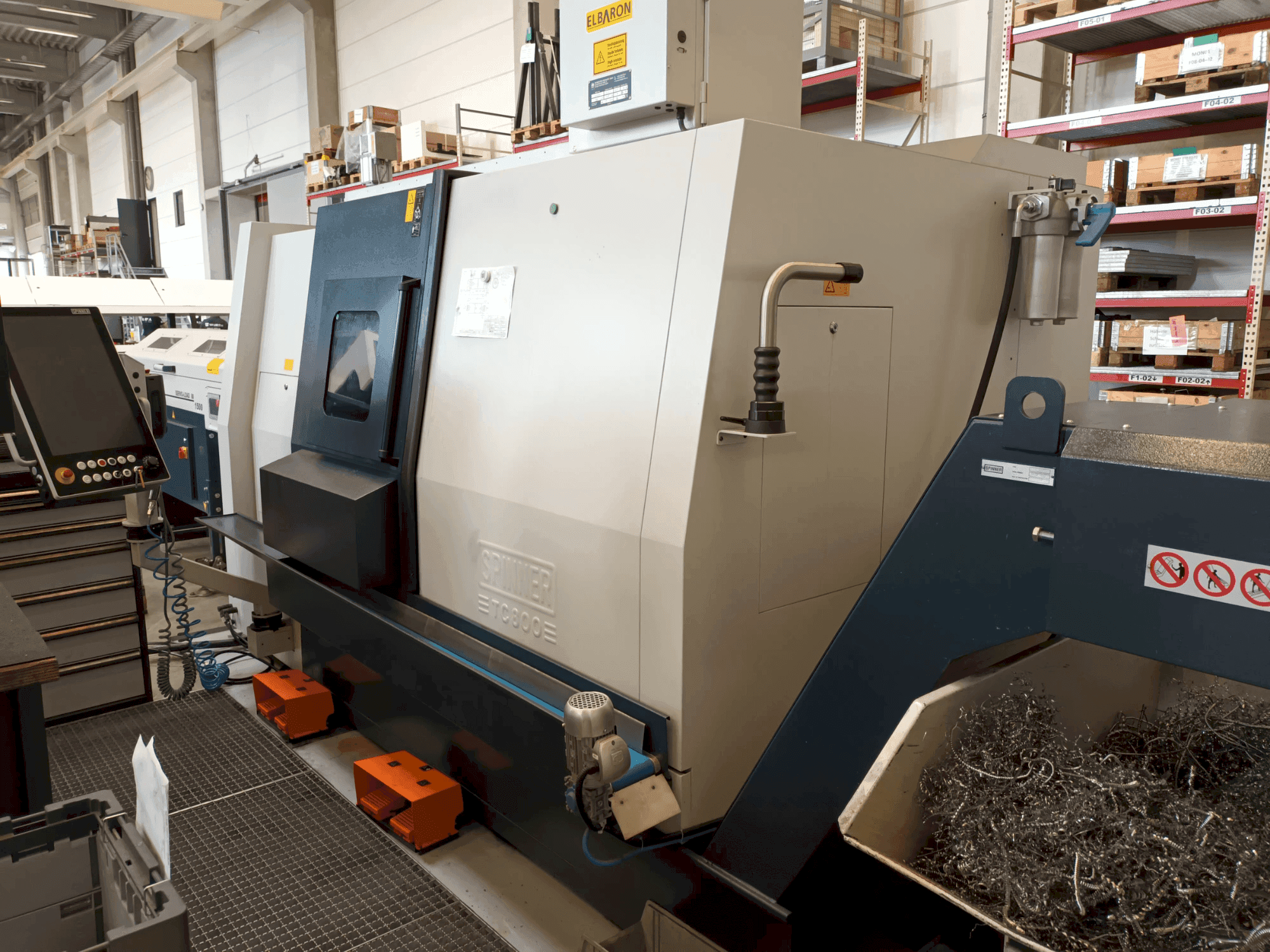

This 4-axis SPINNER TC 800 horizontal turning machine was manufactured in 2020. It features a twin-spindle design with a 45° inclined bed, hardened and ground slideways, and a servo turret with a CNC-controlled Y-axis. The main spindle offers a speed range up to 3,400 rpm with a bar capacity of 85 mm. It includes a SIEMENS 840DE control with a 24" touchscreen and supports Industry 4.0 capabilities. For more information about this machine, please reach out to us.

Overview

brand: SPINNER
year: 2020
MODEL: TC 800
production hours: 2200
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: SIEMENS

Technical Information - SPINNER TC 800

Control Unit

Brand: SIEMENS
Model: 840DE

Main drive

Number of spindles: 2
Spindle speed range: 3400 1/MIN
Spindle motor power: 95 kW
Number of axis: 4

Movement

X-AXIS Movement: 360 mm
Z-AXIS Movement: 900 mm

Turret

Number of turrets: 1
Tool taper: DIN 69880 / DIN ISO 10889 (size VD140)

Tools

Number of stations: 16

Additional Equipment

- Mist extraction system: For the work area
- Parts catcher: Integrated in the work area door with collection chute
- Optional: Conveyor belt for parts removal
- UNIMAG interface: For bar loading magazines

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Technically flawless and functional
- - The bar feeder has never been used
- - The parts catcher as well
- - Type: servo turret with cnc-controlled y-axis (vertical adjustment)
- - Swivel speed: adjustable via feed potentiometer
- - Touch probe: for tool measurement in the work area (quick-change coupling)

Extra information

- Control Unit Controller: SIEMENS 840DE Control panel: 24" touchscreen (SPINNER SPIOS for Industry 4.0) Height-adjustable, rotatable, and tiltable Functions: Engraving cycles 3D simulation Residual material detection Languages: German (primary) English (secondary) Multifunctional handheld unit: With display for axis positions, spindle speed, feed rate, etc. Main Drive Main spindle: Torque: 930 Nm Bar capacity: 85 mm Clamping system: Hydraulic hollow clamping cylinder Chuck: SMW-Autoblok BHD (Ø 315 mm, 3-jaw) Spindle nose: DIN 55026/A8 Counter spindle: Speed range: 0-5000 rpm Power (Pmax): 23.5 kW Torque: 150 Nm Clamping system: Hydraulic hollow clamping cylinder Chuck: SMW-Autoblok BHD (Ø 210 mm, 3-jaw) Spindle nose: DIN /A6 Additional functions: Integrated ejector unit, spindle flushing for coolant

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
