STAMA - MC 326 DE-MIL-STA-2011-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used STAMA MC 326 For Sale | gindumac.com

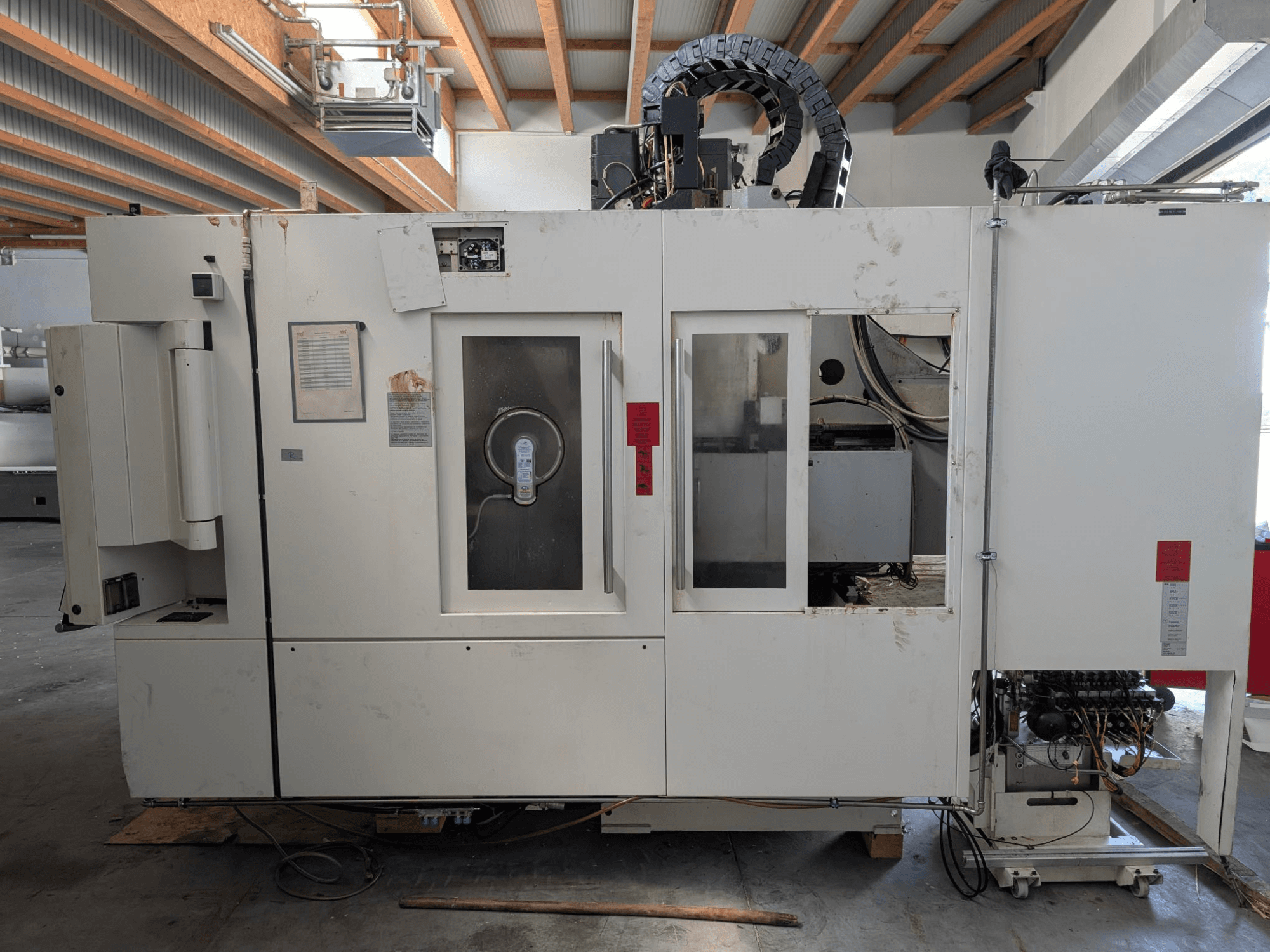

This 4-axis STAMA MC 326 vertical machining centre was manufactured in 2011. It features a travel of 700 mm in the X-axis, 400 mm in the Y-axis, and 360 mm in the Z-axis. The machine is equipped with a spindle power of 18.5 kW and a tool magazine capacity of 48 tools. If you are looking to get high-quality machining capabilities, consider the STAMA MC 326 machine we have for sale. Contact us for further details.
Overview
- brand: STAMA
- year: 2011
- MODEL: MC 326
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - STAMA MC 326
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D
Dimensions
- Machine Weight: 6200 kg
Movement
- Number of Axes: 4
- X-axis Travel: 700 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 360 mm
Technical Specification
- Max. Tool Weight: 5 kg
- Spindle Power: 18.5 kW
- Spindle Speed: 10000 RPM
- Taper Size: SK 40
Additional Information
Rapid traverse (X/Y/Z): 60 m/min
Feed rate: 1–10,000 mm/min
Acceleration: X/Y 5 m/s², Z 12 m/s²
Spindle: up to 300 Nm
Tool magazine: 48 tools; max tool Ø 88 mm; max tool length 300 mm; tool change approx. 2.4 s
Rotary table: diameter 180 mm (NC 4th axis)
Coolant system: tank 900 L; filtration 50 µm; pressure up to 25 bar
Hydraulics: 250 bar
Compressed air supply: 6 bar
Connected load: 28 kVA
Power supply: 3 × 400 V / 50 Hz
Additional equipment
Rear chip conveyor
NC rotary table (4th axis), Ø 180 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
