STAMA - MC 726CH-TUR-STA-2006-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- STAMA MC 726

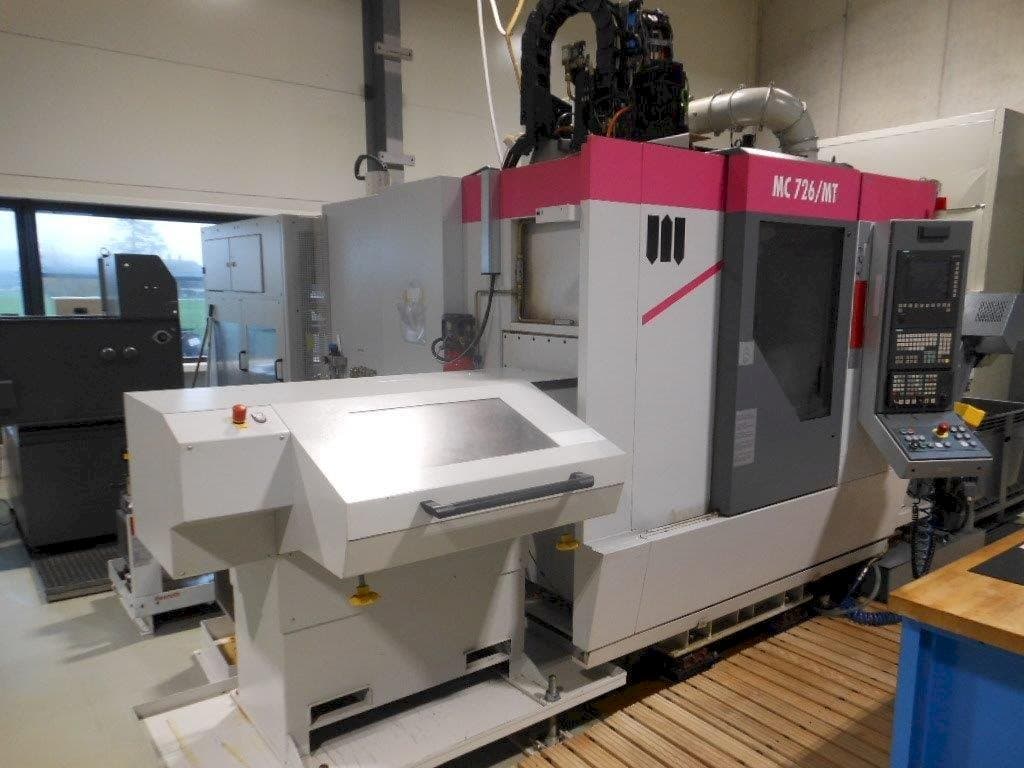

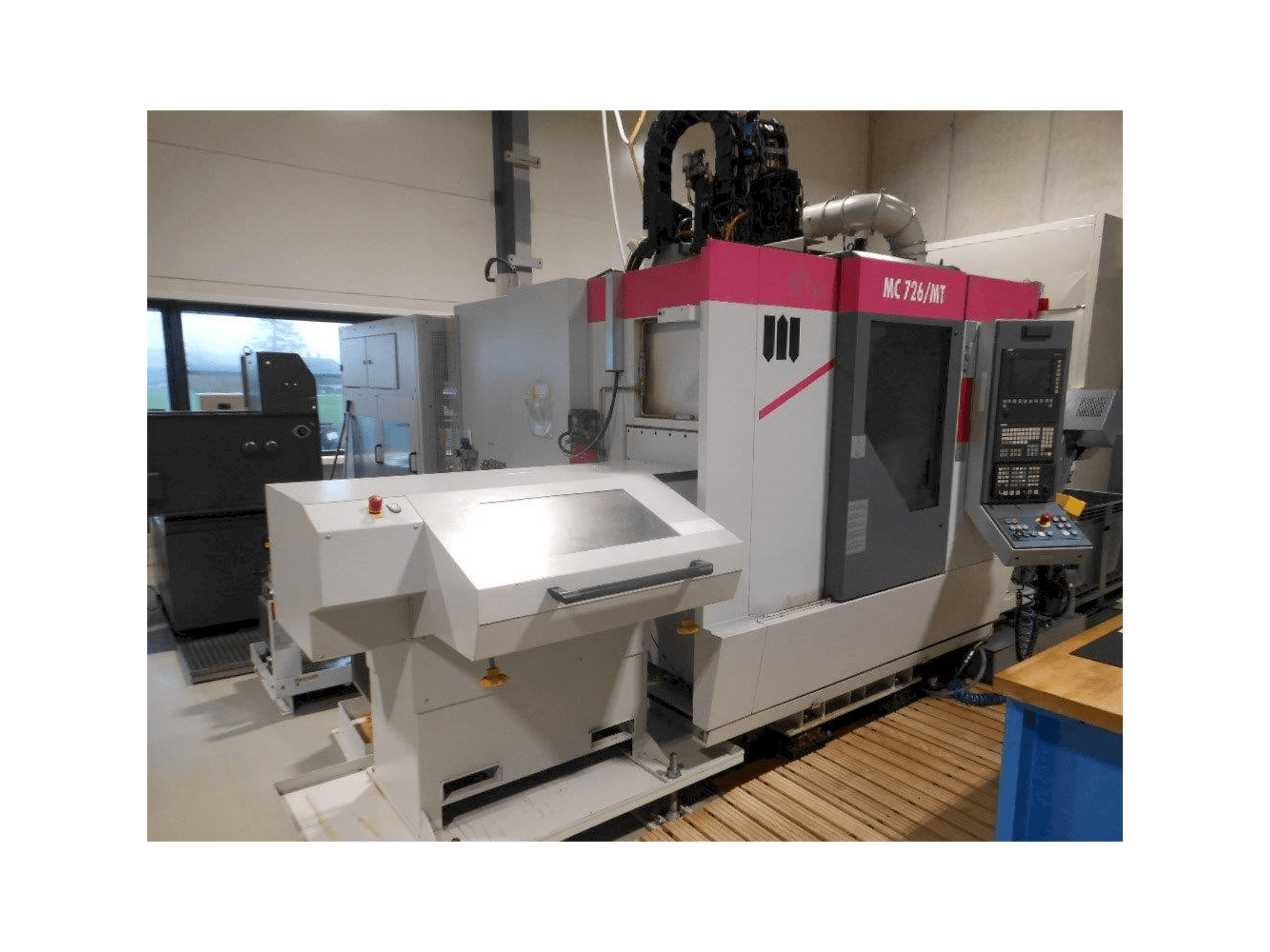

This STAMA MC 726 multitasking lathe milling-turning center was manufactured in Germany in the year 2006. This 7 axis machine is operated through a SIEMENS SINUMERIK control unit. It works with a spindle speed range 36-12000 rpm. This machine includes several options and additional equipment as a 3D probe and a bar feeder. Its PCU was changed and it had a major maintenance in 2018.
Overview
- brand: STAMA
- year: 2006
- MODEL: MC 726
- application type: Milling
- Location: Switzerland
- machine type: Horizontal Machining Centre
- control unit brand: SIEMENS
Technical Information - STAMA MC 726
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK
Dimensions
- Machine Depth: 7200 mm
- Machine Height: 3300 mm
- Machine Weight: 7000 kg
Movement
- Number of Axes: 7
- X-axis Travel: 500 mm
- Y-axis Travel: 380 mm
- Z-axis Travel: 360 mm
Technical Specification
- Spindle Speed: 12000 RPM
Additional Information
Additional equipment
- 3D probe
- Bar feeder 1m
- Blum laser
- Additional magazine
- Hainbuch chuck and various collets
Machine Benefits
Qualitative Machine Benefits
- Major maintenance in 2018
- Service of the hydraulic unit
Technical Machine Benefits
- Spindle bearing 65 mm
- Max. Torque 45 nm
- Pcu changed in 2018
- New cooling unit for control cabinet
- Baluff system for tool data / holder data
- Artis breakage monitoring
- Oil extraction
- Extinguishing system from kraft&bauer
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
