STAR-BEND STAR 800 CN6/GEN/L
STAR-BEND - STAR 800 CN6/GEN/L
2006
33,000 €
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- STAR-BEND STAR 800 CN6/GEN/L Bending machine

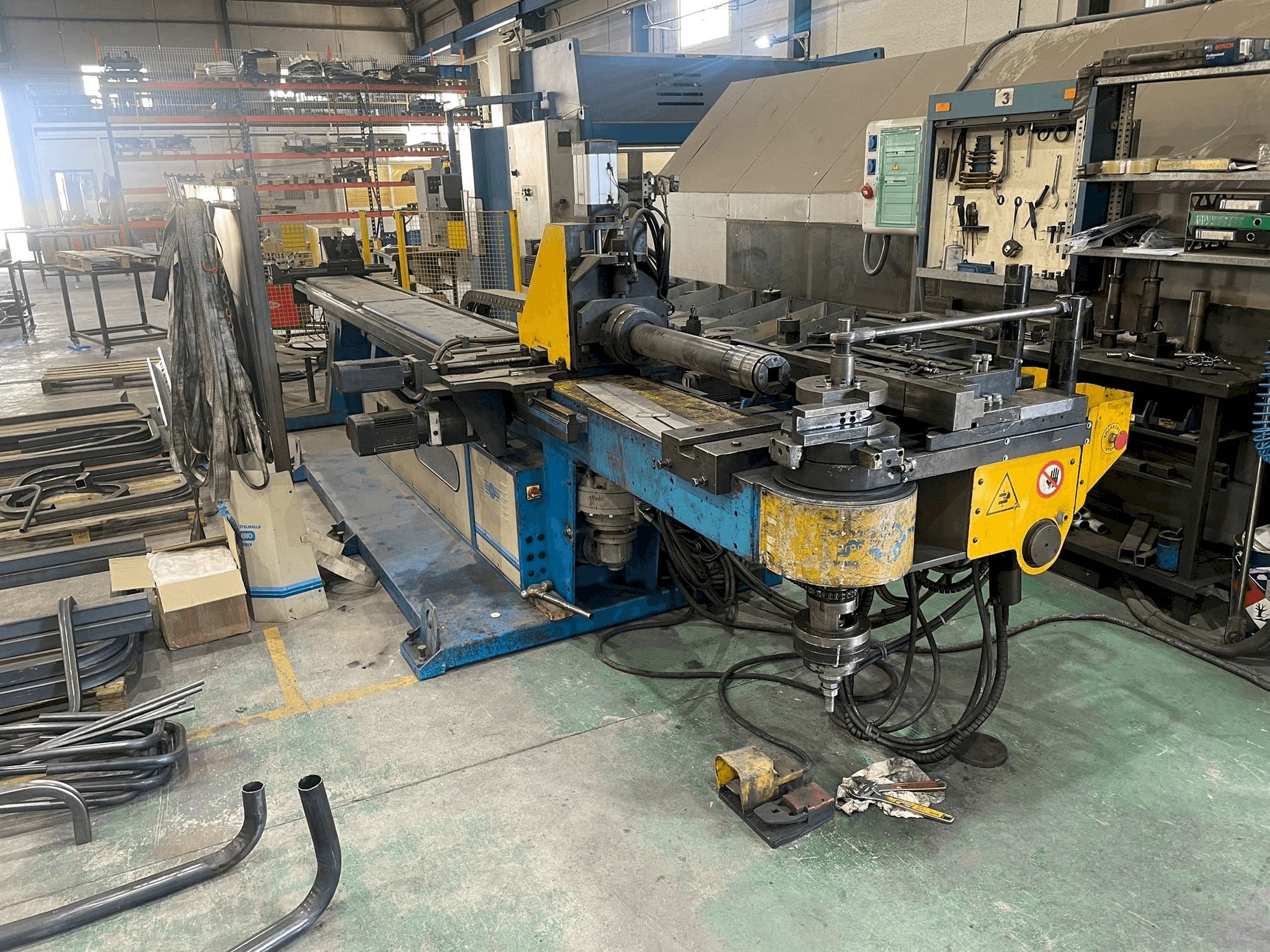

This STAR-BEND STAR 800 CN6/GEN/L Bending machine was manufactured in the year 2006 in Italy. It is equipped with a STAR-BEND control unit and has 6 axis.
Overview
- brand: STAR-BEND
- year: 2006
- MODEL: STAR 800 CN6/GEN/L
- application type: Bending
- Location: Spain
- machine type: Bending machines
- availability: 01 06 2024
- control unit brand: STAR-BEND
- GINDUMAC ID: ES-BEN-STA-2006-00001
Technical Information
Control Unit
- Brand: STAR-BEND
Main drive
- Number of axis: 6
Additional Information
- Technical Machine Benefits:
- - Minimum inner bending radius (_1) with standard shaft (Ø 60 mm) <= 40 mm
- - Maximum bending radius with standard arm (on the axis of the tube) 320 mm
- - Maximum bending radius with special arm (on the axis of the tube) 600 mm
- - Useful length on spindle (_3) 6000 mm
- - Spindle neck (over the die center) 1200 mm
- - Head height (from die throat center) 520 mm
- - Working height from die center to floor (_2) 1210 mm
- - Maximum bending angle 220 °.
- - Inner pitch of the positioning 80 mm
- - Adjustable clamping carriage stroke 120 mm, adjustable spindle travel (_2) 0-100 mm, adjustable stroke of contrast slide 120 mm
- Qualitative Machine Benefits:
- - Precision speed: max. Bending speed (y-axis)(*2) 90°/1".
- - Max. Translation speed (x-axis) 1000 mm/1".
- - Max. Rotation speed (z axis) 360°/1".
- - Repeatability translation rate (x axis) +/- 0. 1 mm.
- - Repeatability of bending angle (y-axis) +/- 0. 1°.
- - Repeatability rotation angle (z axis) +/- 0. 1 °.
- - Maximum productivity (with bends at 90°) 500 cycle / hour
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
