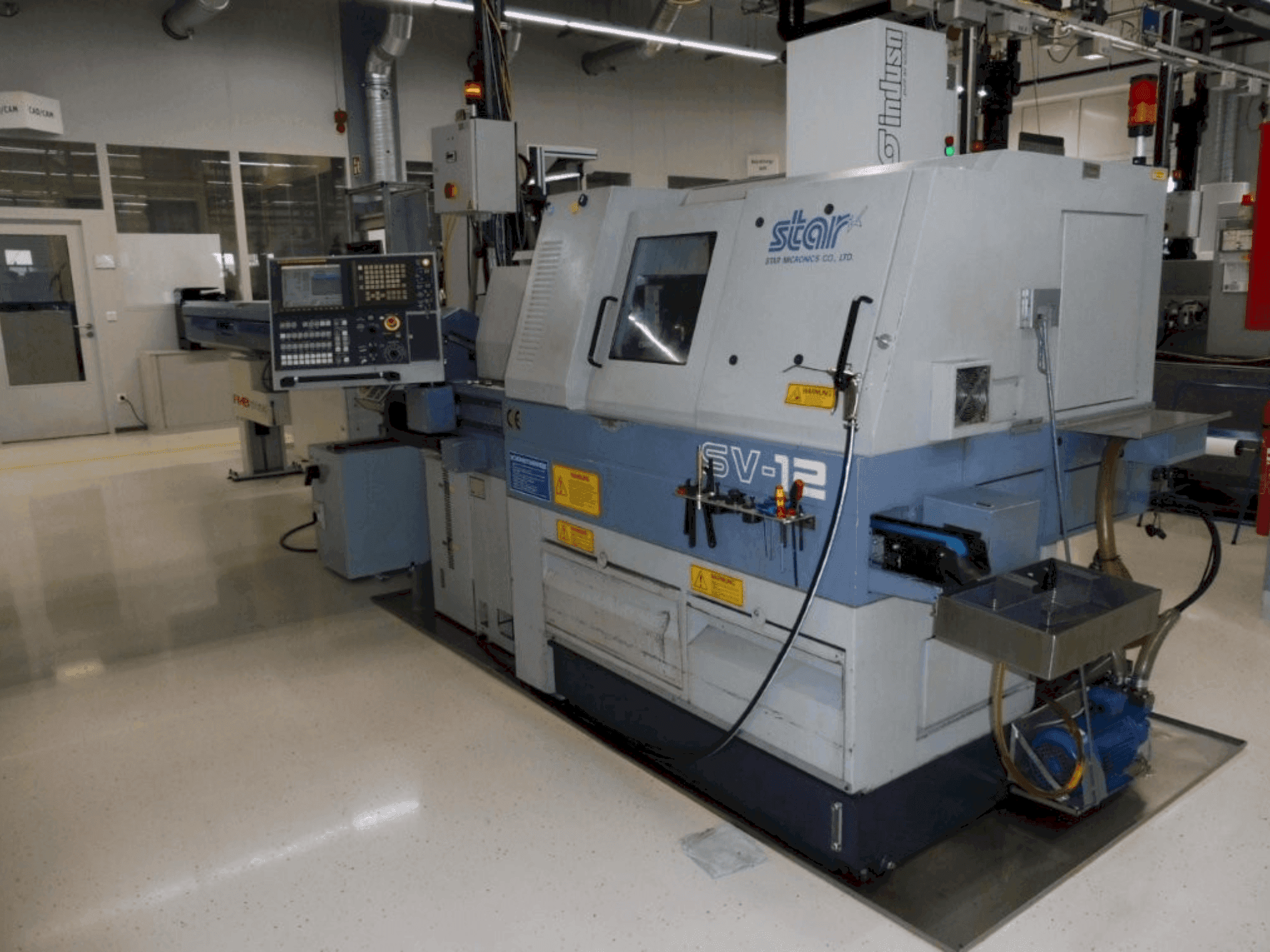

Front view of STAR MICRONICS SV-12  machine

STAR MICRONICS - SV-12DE-TUR-STA-2004-00001

30,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This STAR MICRONICS SV-12 was manufactured in 2004. A reliable Swiss type turning machine, it offers precision and efficiency for specialized turning operations. If you are looking to get high quality turning capabilities consider the STAR MICRONICS SV-12 machine we have for sale. Contact us for more information about this machine.

Overview

  • brand: STAR MICRONICS
  • year: 2004
  • MODEL: SV-12
  • production hours: 67000
  • application type: Turning
  • Location: Germany
  • machine type: Swiss Type Turning Machine
  • availability: Immediately
  • control unit brand: FANUC

Technical Information - STAR MICRONICS SV-12

General Data

  • Measurements width: 1375 mm
  • Measurements depth: 2670 mm
  • Measurements height: 1660 mm
  • Machine weight: 3400 kg

Control Unit

  • Brand: FANUC
  • Model: Series 16i-T

Main drive

  • Spindle speed range: 500–12000 min⁻¹ 1/MIN
  • Spindle motor power: 2.2 kW (CONT.) / 3.7 kW (15 min/50% ED)

Movement

  • X-AXIS Movement: 15000 MM
  • Y-AXIS Movement: 15000 MM
  • Z-AXIS Movement: 18000 MM

Media

  • Internal cooling: Yes

    Additional Equipment

    • - Bar Feeder: Yes
    • - Indusa Extraction System: Yes
    • - Loading Magazine: FMB Minimag 18
    • - Workpiece drm: Φ13 mm

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Several parts are completely new, including: power supply cable for a-axis sv-12, control cable for a-axis sv-12, brake cable for a-axis sv-12, alpha servo a3b/3000 a64+s
        • - Technical machine benefits: integrated mechanical/electrical/hydraulic structure
        • - Qualitative machine benefits: well-maintained from the medical sector
        • - Operation mode: right-handed machine
        • - Maximum machining diameter: Φ13 mm /maximum drilling: stationary tool: Φ10 mm, power-driven tool: Φ8 mm /maximum tapping: stationary tool: m8 × p1. 25, power-driven tool: m6 × p1. 0 /maximum milling: Φ10 mm /maximum die cutting: m8 × p1. 25 / maximum slotting: 2 mm width × 6 mm depth
        • - Coolant oil: water-soluble / non-water-soluble
        • - Hydraulic oil: mineral hydraulic oil (viscosity grade: iso vg32)
        • - Lubrication oil: sliding surface lubricant (viscosity grade: iso vg68)
        • - Power supply: voltage: 3 phase ac200v ±10%, frequency: 50/60 hz ±1 hz, capacity: loading power average: 10 kva
      • Qualitative Machine Benefits:
        • - The machine is very well-maintained, as it comes from the medical sector.

      Extra information

      • - Tools Whirling Holder Polygon Apparatus Driven Holders (3) Swiveling Driven Holder Double Holders (2) Tool Holders (2) Fixed Holders (5)

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
