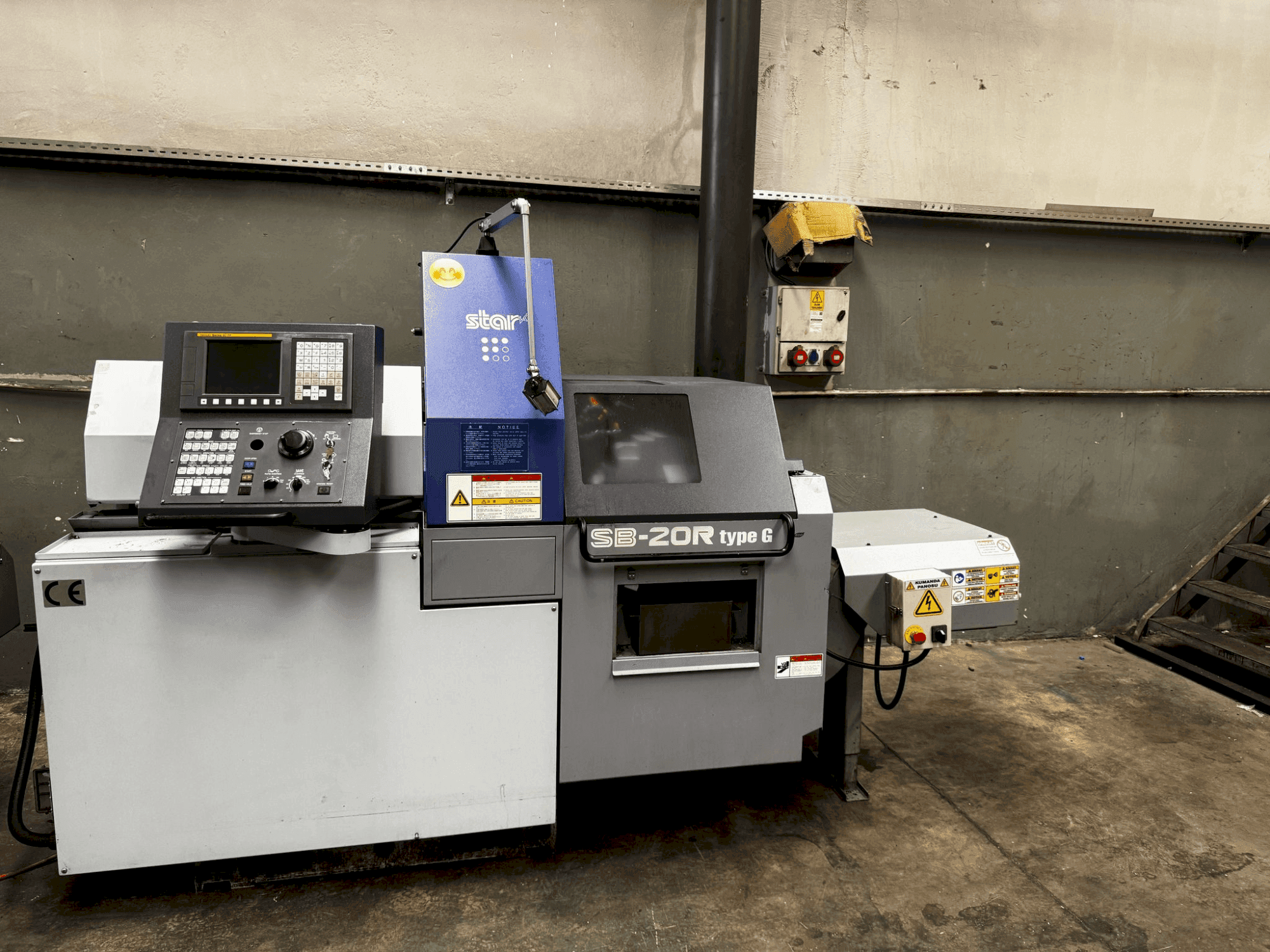

This 7-axis Star SB-20R type G was manufactured in 2020, featuring a Fanuc Oi-TF Plus CNC control and a rapid traverse speed of 35 m/min. It has a coolant tank capacity of 180 liters and can handle a maximum machining diameter of 20 mm. Ideal for precision turning, this machine weighs 1750 kg and has dimensions of 2070 × 1177 × 1760 mm. Consider the opportunity to buy this Star SB-20R type G swiss type turning machine. Contact us for more information.
Overview
- brand: Star
- year: 2020
- MODEL: SB-20R type G
- application type: Turning
- Location: Turkey
- machine type: Swiss Type Turning Machine
- control unit brand: FANUC
Technical Information - Star SB-20R type G
Control Unit
- Control Brand: FANUC
- Control Model: 0i-TF Plus
Dimensions
- Machine Depth: 2070 mm
- Machine Height: 1760 mm
- Machine Weight: 1750 kg
Movement
- Number of Axes: 7
Technical Specification
- Spindle Power: 2.2 kW
- Spindle Speed: 10000 RPM
Additional Information
Additional equipment
- Units Available: 3
Machine Benefits
Technical Machine Benefits
- Rapid traverse speed: 35 m/min (axes: x1, y1, z1, x2, z2)
- Linear slide: x1 / y1 axis
- Max. Machining diameter: 20 mm (23 mm option)
- Max. Headstock stroke: 205 mm
- Turning tools: 6 × □ 12 mm (7 × □ 10 mm option)
- Drilling tools: 4
- Cross-machining tools: max. 5
- Coolant tank capacity: 180 liters
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
