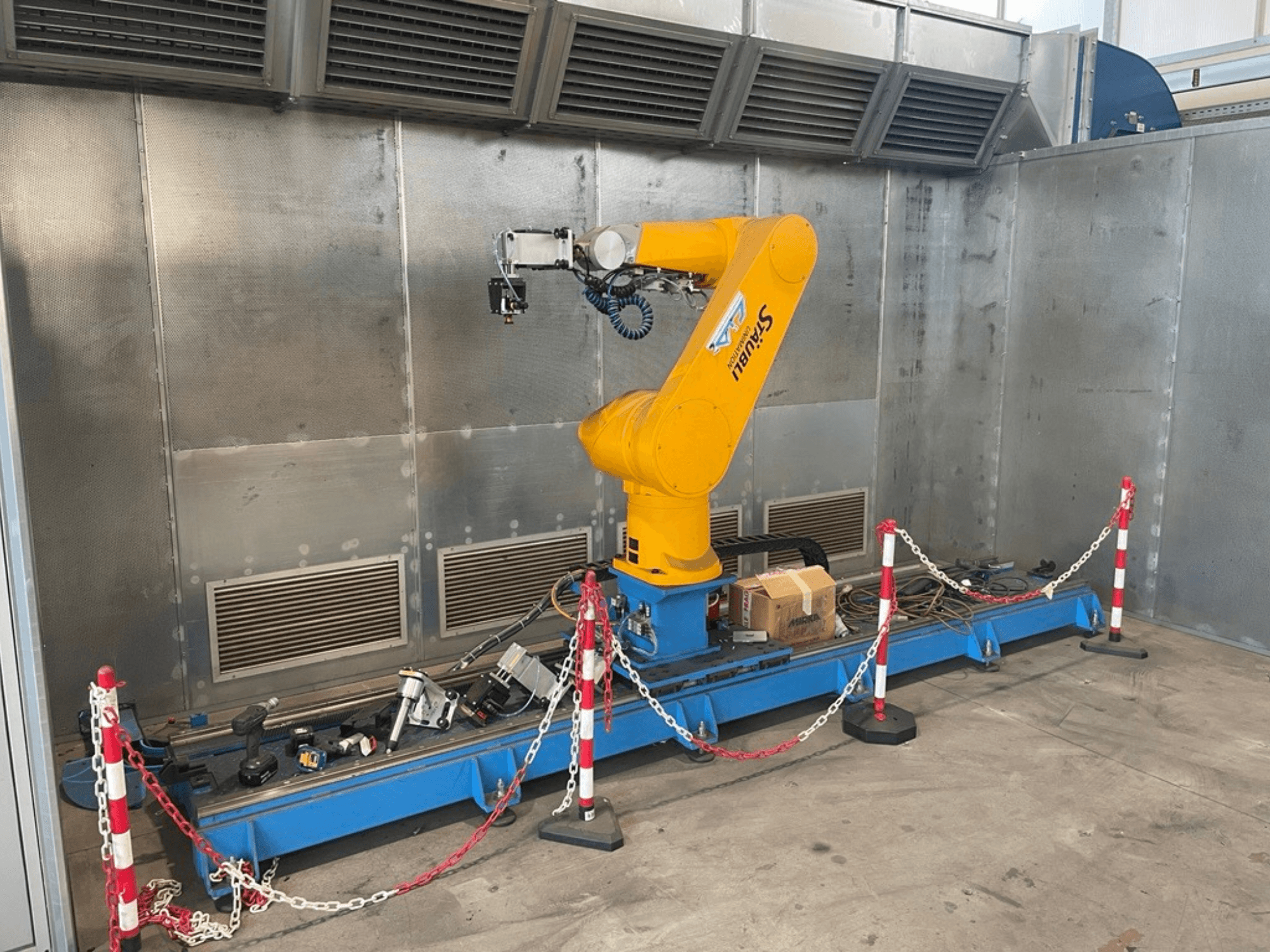

STAUBLI CS8C-RX160 robot arm in a workshop, side view, with cables and various tools on a blue base surrounded by protective barriers.
STAUBLI CS8C-RX160 robot arm in a workshop, side view, with cables and various tools on a blue base surrounded by protective barriers.

STAUBLI - CS8C-RX160IT-ROB-STA-2017-00001

19,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 6-axis Stäubli CS8C-RX160 was manufactured in 2017. It features a maximum payload of 30 kg and a reach of 1710 mm, making it suitable for various applications. The robot arm is designed for high-speed performance with a maximum TCP speed of 10.3 m/s. If you are looking to get high-quality automation capabilities, consider the Stäubli CS8C-RX160 robot arm we have for sale. Contact us for further details.

Overview

  • brand: STAUBLI
  • year: 2017
  • MODEL: CS8C-RX160
  • application type: Robotics
  • Location: Italy
  • machine type: Robot Arm

Technical Information - STAUBLI CS8C-RX160

Dimensions

  • Machine Weight: 1300 kg

Movement

  • Number of Axes: 6

Technical Specification

  • Max. Handling Weight: 30 kg
  • Max. Reach: 1600 mm

Additional Information

  • Controller: Stäubli CS8C

  • Payload: nominal 20 kg; max 30 kg (up to 34 kg under conditions)

  • Reach (axis 1–6): 1710 mm

  • Repeatability: ±0.05 mm

  • Axis range of motion:

    • Axis 1: ±160°

    • Axis 2: ±137.5°

    • Axis 3: ±150°

    • Axis 4: ±270°

    • Axis 5: +120° / -105°

    • Axis 6: ±270° (configurable up to ±18000°)

  • Max axis speeds:

    • Axis 1: 200°/s

    • Axis 2: 200°/s

    • Axis 3: 255°/s

    • Axis 4: 315°/s

    • Axis 5: 360°/s

    • Axis 6: 870°/s

  • Working envelope:

    • Min reach (axis 1–5): 312 mm

    • Min reach (axis 2–5): 422 mm

    • Distance axis 3–5: 625 mm

  • Performance:

    • Max TCP speed: 10.3 m/s

    • Max inertia axis 5: 4 kg·m²

    • Max inertia axis 6: 1 kg·m²

    • Brakes: all axes

  • Installation and environment:

    • Temperature: +5°C to +40°C

    • Humidity: 30–95% (non-condensing)

    • Mounting: Floor / Ceiling

  • Protection and interfaces:

    • Protection class: IP65 / IP67

    • Cleanroom class: ISO 14644-1 Class 5

    • Electrical connection: 19-pin connector

    • Pneumatic: Optional valves

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
