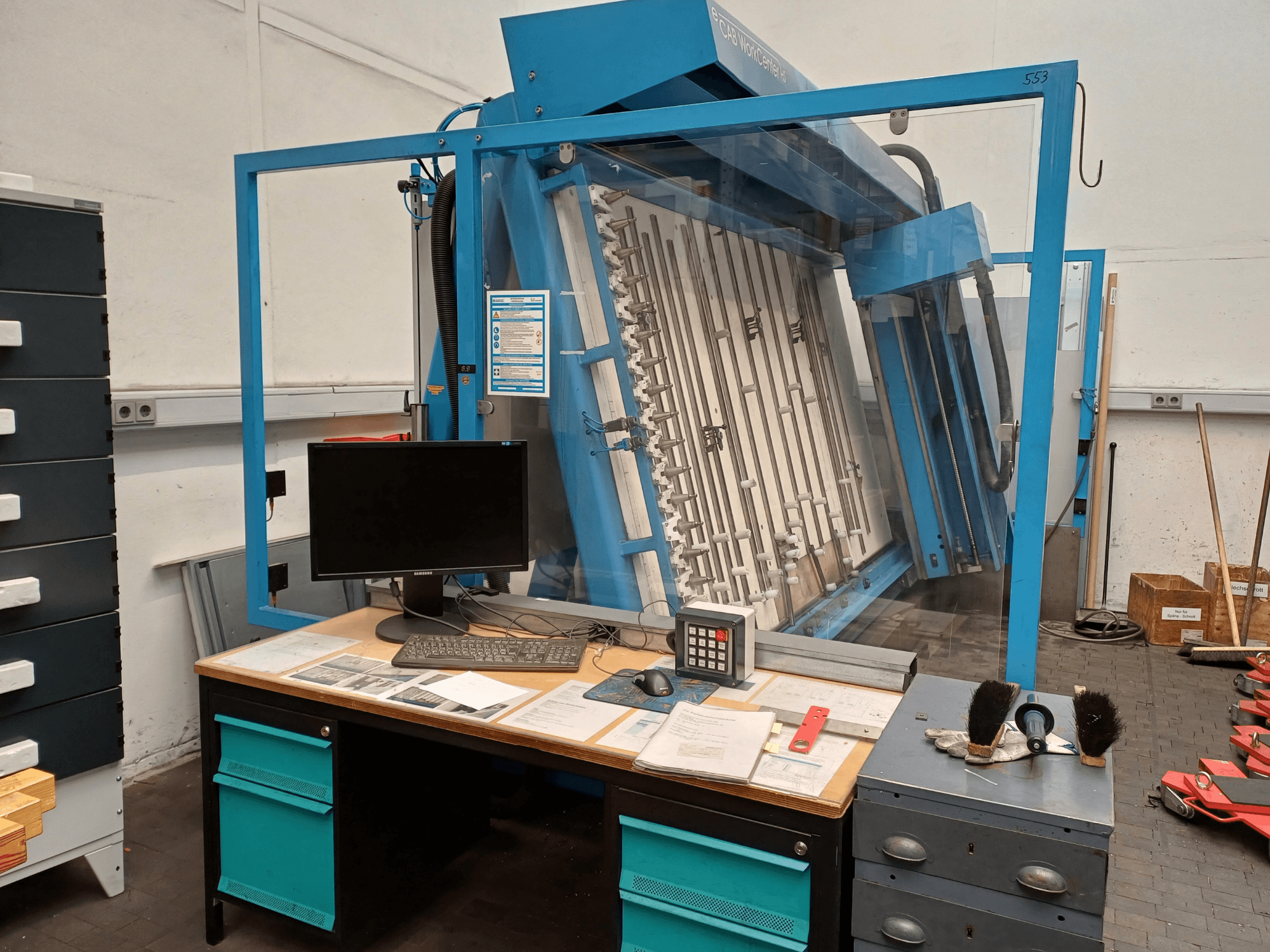

Blue glass display case with machinery inside, a monitor, and tools on a desk, photographed from the left side view.
Blue glass display case with machinery inside, a monitor, and tools on a desk, photographed from the left side view.

Thank you for your visit

This machine was recently sold.

Browse similar machines

STEINHAUER - eCAB S 2415 HSDE-OTH-STE-2005-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis STEINHAUER eCAB S 2415 HS was manufactured in 2005. It features a 4-axis CNC Beckhoff control, a high-frequency spindle with a maximum speed of 6,000 rpm, and a milling speed up to 5,000 mm/min. The machine can handle workpieces up to 2400 mm in length and 1550 mm in width. If you are looking to get high-quality milling capabilities, consider the STEINHAUER eCAB S 2415 HS machine we have for sale. Contact us for more information.

Overview

  • brand: STEINHAUER
  • year: 2005
  • MODEL: eCAB S 2415 HS
  • application type: Other Machine Tools
  • Location: Germany
  • machine type: Machine Tool

Technical Information - STEINHAUER eCAB S 2415 HS

Dimensions

  • Machine Depth: 2500 mm
  • Machine Height: 2350 mm
  • Machine Length: 3490 mm
  • Machine Weight: 2500 kg

Additional Information

  • X, Y, Z Traverse Speed: 32 m/min

  • Repeatability (all axes): 0.04 mm

  • Max. Workpiece Width (front): 1550 mm

  • Max. Workpiece Length (front): 2400 mm

  • Min. Workpiece Width (front): 200 mm

  • Min. Workpiece Length (front): 150 mm

  • Tool Diameter with ER32 Collet: 3-20 mm

  • Tool Diameter with ER25 Collet: 1.5-2.5 mm

  • Tools Standard / Max.: 12 / 18 pieces, freely configurable

  • Drills: D1.5-D20

  • Threads: M2-M12

  • Cutters: D2-D6

  • CNC High-Frequency Spindle ISO30/DIN69871: 5.5 kW/18000 rpm

  • Scope of Delivery: Machine, Clamping Devices, 18 Tool Holders, PC with Software, Monitor, Mouse & Keyboard, Manual

  • Power Supply: 3+400V 50760 Hz

  • Compressed Air: 8 bar, approx. 3300 l/min intake capacity

  • Data Interface: 10/100 mbps Ethernet, RJ 45

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
