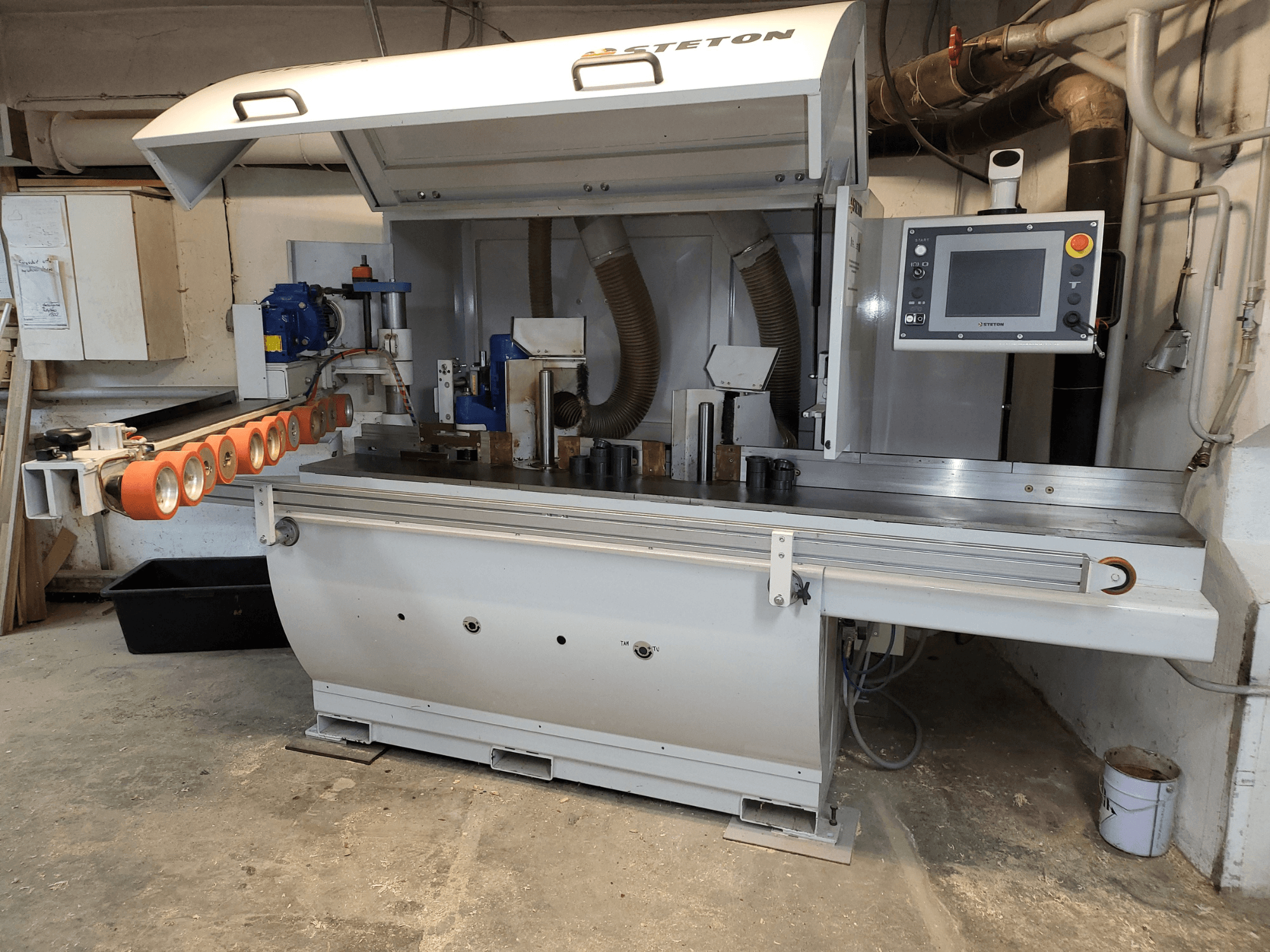

Spindle moulder manufactured in 2015. This STETON INDEX machine features a programmable electronic control system with a 10.4” color touch screen, allowing for efficient management of machining parameters. It includes two profiling spindles with a vertical stroke of 265 mm and a maximum tool diameter of 240 mm, providing versatility in operations. Consider the opportunity to buy this STETON INDEX spindle moulder. Contact us for further details.
Overview
- brand: STETON
- year: 2015
- MODEL: INDEX
- application type: Profiling
- Location: Poland
- machine type: Spindle Moulder
Technical Information - STETON INDEX
Dimensions
- Machine Height: 1800 mm
- Machine Length: 2700 mm
- Machine Weight: 1850 kg
- Machine Width: 1400 mm
Technical Specification
- Spindle Power: 7.5 kW
- Spindle Speed: 6000 RPM
Additional Information
Control system
Electronic control with programmable system
10.4” color TFT touch screen
Control of vertical movement of 1st and 2nd profiling spindles
Program memory for machine parameters, tools, and machining programs
Frame or single element processing management
USB port (data input, backup, service)
Automatic star–delta motor start
Self-braking electric motors
Emergency stop and limit switches
Profiling spindle 1
Usable length: 320 mm
Spindle diameter: 50 mm
Vertical stroke: 265 mm
Speed: 6000 rpm
Max. tool diameter: 240 mm
Pneumatic center guide
Motor power: 7.5 kW (15 A)
Extraction outlet diameter: 150 mm
Rotation: clockwise / counterclockwise (anti-tear function possible)
Profiling spindle 2
Usable length: 320 mm
Spindle diameter: 50 mm
Vertical stroke: 265 mm
Speed: 6000 rpm
Max. tool diameter: 240 mm
Pneumatic center guide
Motor power: 7.5 kW (15 A)
Extraction outlet diameter: 150 mm
Rotation: counterclockwise
Grooving spindle (3rd spindle)
Horizontal movement: pneumatic
Vertical stroke: 40 mm
Horizontal stroke: 150 mm
Spindle height: 80 mm
Spindle diameter: 30 mm
Speed: 6000 rpm
Max. tool diameter: 200 mm
Motor power: 3.0 kW
Rotation: counterclockwise
Feed unit
Feed speed: 3–15 m/min (variable)
12 rubber-coated rollers
Roller diameter: 120 mm
Feed motor power: 0.75 kW
Pneumatic vertical adjustment of first two rollers (photo-cell controlled)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
