➤ Used SUMITOMO SHI DEMAG Intelect 2 50/370-110 For Sale

Show in original language

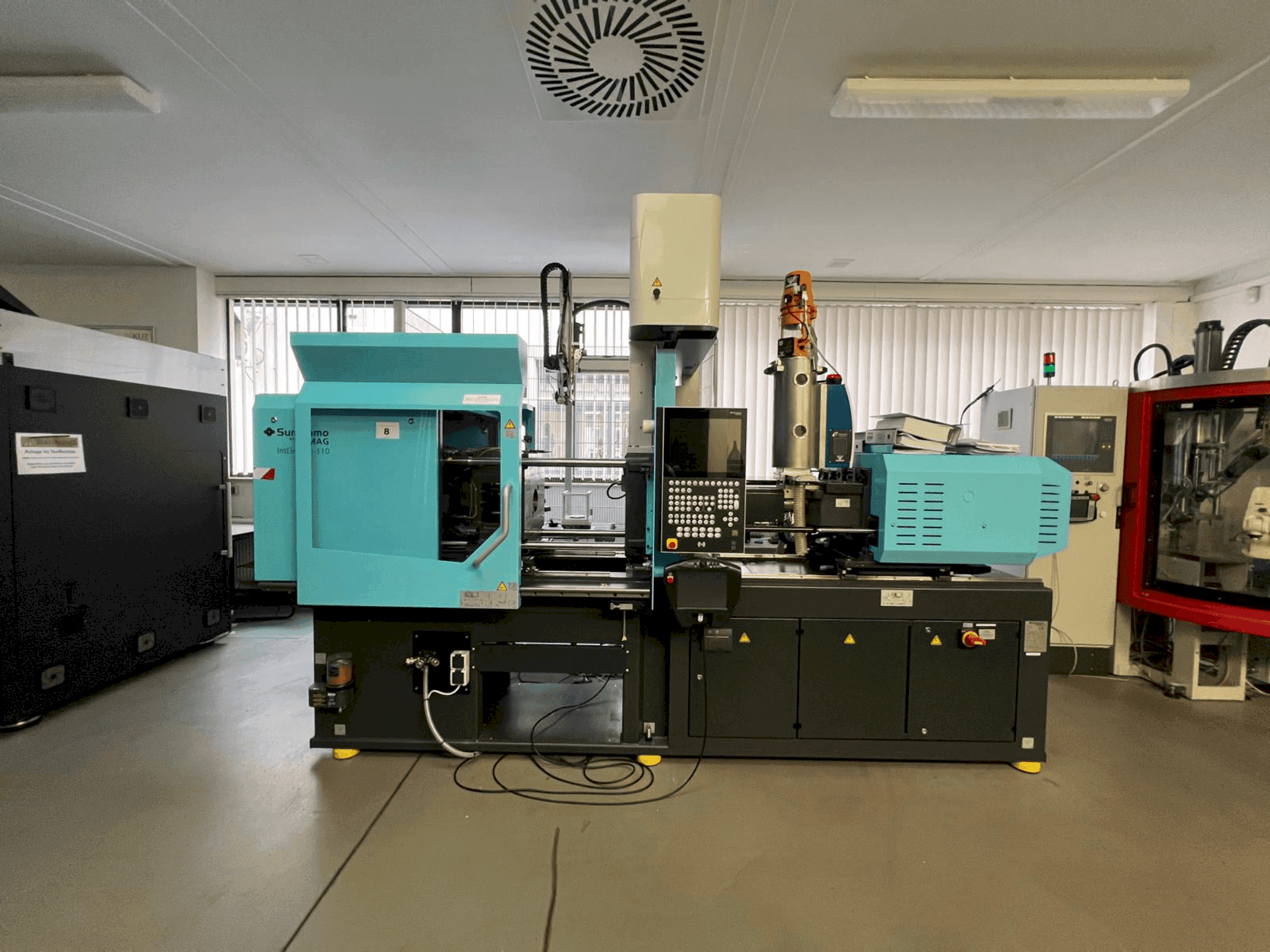

This SUMITOMO SHI DEMAG Intelect 2 50/370-110 was manufactured in 2020. It features a fully electric direct-drive system, NC5+ control for enhanced energy efficiency, and precise injection dynamics. Includes a granule dryer, industrial robot, conveyor belt, and temperature units. Ideal for high-quality injection moulding processes. Contact us for more information about this machine.

Overview

brand: SUMITOMO SHI DEMAG
year: 2020
MODEL: Intelect 2 50/370-110
production hours: 8000
application type: Injection Moulding
Location: Germany
machine type: Electrical Injection Moulding Machine

Technical Information - SUMITOMO SHI DEMAG Intelect 2 50/370-110

General Data

Measurements width: 1264 mm
Measurements depth: 4308 mm
Measurements height: 1779 mm
Machine weight: 4200 kg

Injection Unit

Screw diameter: 25 mm
Shot weight: 46 g
Heating capacity: 5.7 kW
Nozzle pressure: 30 kN

Clamping unit

Clamping force: 500 kN
Max open daylight: 710 mm
Distance between bars: 370 x 370 mm
Mould height min: 200 mm
Mould height max: 410 mm
Ejector stroke: 90 mm
Ejector force for / back: 25 kN

General Data

Measurements width: 1264 mm
Measurements depth: 4308 mm
Measurements height: 1779 mm
Machine weight: 4200 kg

Injection Unit

Screw diameter: 25 mm
Shot weight: 46 g
Heating capacity: 5.7 kW
Nozzle pressure: 30 kN

Clamping unit

Clamping force: 500 kN
Max open daylight: 710 mm
Distance between bars: 370 x 370 mm
Mould height min: 200 mm
Mould height max: 410 mm
Ejector stroke: 90 mm
Ejector force for / back: 25 kN

Additional Information

Additional equipment

Granule Dryer
Handling System
Conveyor Belt - 1400 mm x 400 mm
Precision Scale
Temperature Units - 2x HB‑Therm

Machine Benefits

Technical Machine Benefits

Exceptional energy efficiency
Enhanced platen rigidity and mold safety
Fully electric direct-drive system
Ultra-precise direct-drive motors with 0. 1 ms response time
Displacement: 52 cm³
Spray pressure: 2180 bar
Tool clamping platens: 520 x 570 mm

Extra Information

Control Unit Advanced control system with NC5+ Automatic mold height and clamping force adjustment Energy-saving routines

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
