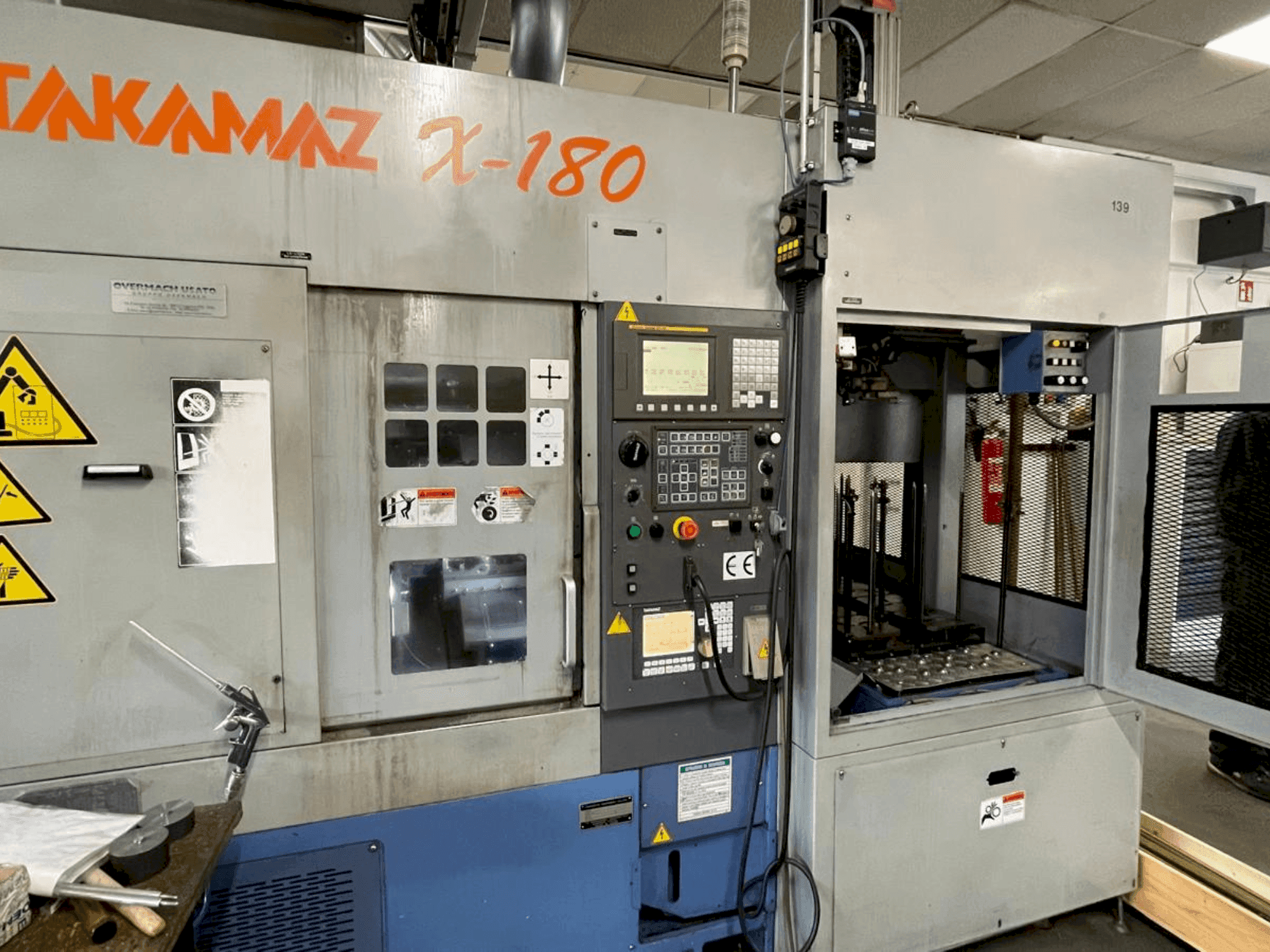

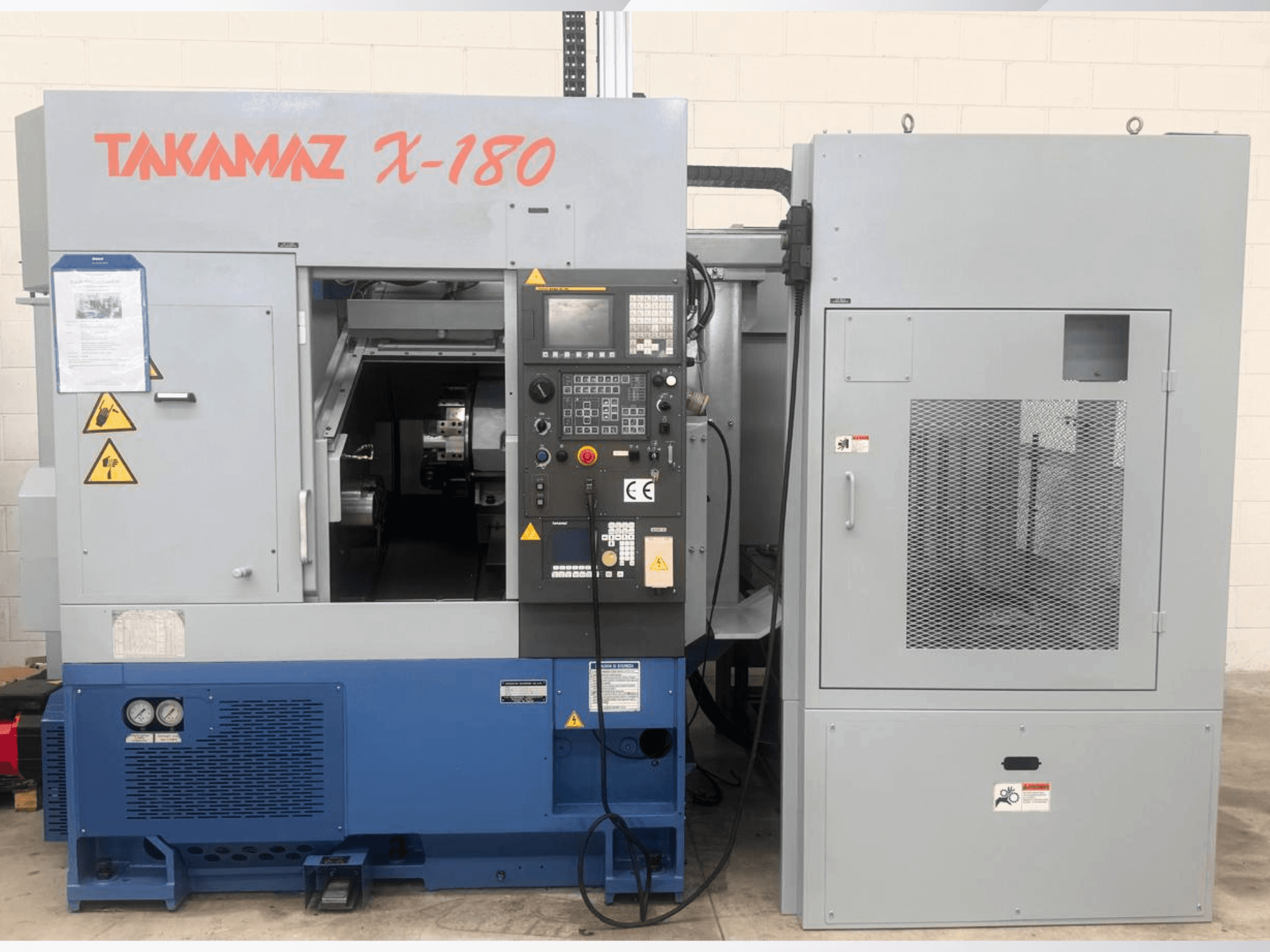

This 3-axis Takamaz X-180 horizontal turning machine was manufactured in 2008. It features a maximum turning diameter of Ø 210 mm, a turning length up to 230 mm, and a bar diameter capacity of Ø 51 mm. The spindle supports speeds up to 3,500 RPM, enhancing productivity. Ideal for precision machining, it includes a 12-station revolver turret and rapid traverse speeds of 24 m/min on both X and Z axes. Contact us for more information about this machine.
Overview
- brand: Takamaz
- year: 2008
- MODEL: X-180
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
- availability: Immediately
- control unit brand: FANUC
Technical Information - Takamaz X-180
General Data
- Measurements depth: 1835 mm
- Measurements height: 1525 mm
- Machine weight: 3500 kg
Control Unit
- Brand: FANUC
- Model: Series 0i-TC
Main drive
- Spindle speed range: 3500 1/MIN
- Spindle bore: 61 mm
- Number of axis: 3
Movement
- X-AXIS Movement: 175 mm
- X-AXIS Rapid traverse: 24 m/min
- Z-AXIS Movement: 330 mm
- Z-AXIS Rapid traverse: 24 m/min
Additional Equipment
- - Chuck dimensions: 8 inches
Additional Information
- Technical Machine Benefits:
- - Maximum turning diameter: Ø 210 mm // maximum turning length: 230 mm (collet 278 mm)
- - Maximum bar diameter: Ø 51 mm (Ø 42 mm)
- - Spindle nose: jis a2-6
- - Spindle bearing internal diameter: Ø 100 mm
- - Type: revolver with 12 stations
- - Tool dimensions: 25 mm²
- - Internal diameter of boring toolholder: Ø 32 mm
- - Tools maximum speed: max. 3600 min⁻¹
- - Drilling capacity: Ø 12 mm // milling cutter capacity: Ø 16 mm
- - Tapping capacity: m8
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
Products related to Takamaz X-180

XW-130
Takamaz - Horizontal Turning Machine

CD/FM 325
Celoria - Horizontal Turning Machine

L300 LMC
Hyundai Wia - Horizontal Turning Machine

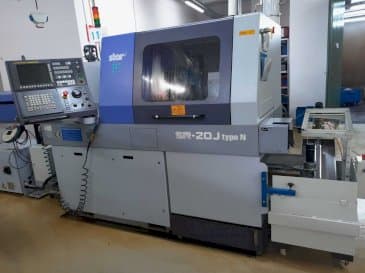

SR20JN
