Takisawa - EX 2000 MSIT-TUR-TAK-2020-00001

Name: Takisawa EX 2000 MS
Brand: Takisawa
SKU: IT-TUR-TAK-2020-00001
Price: 100000 EUR
Availability: InStock

100,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Takisawa EX 2000 MS For Sale | gindumac.com

Show in original language

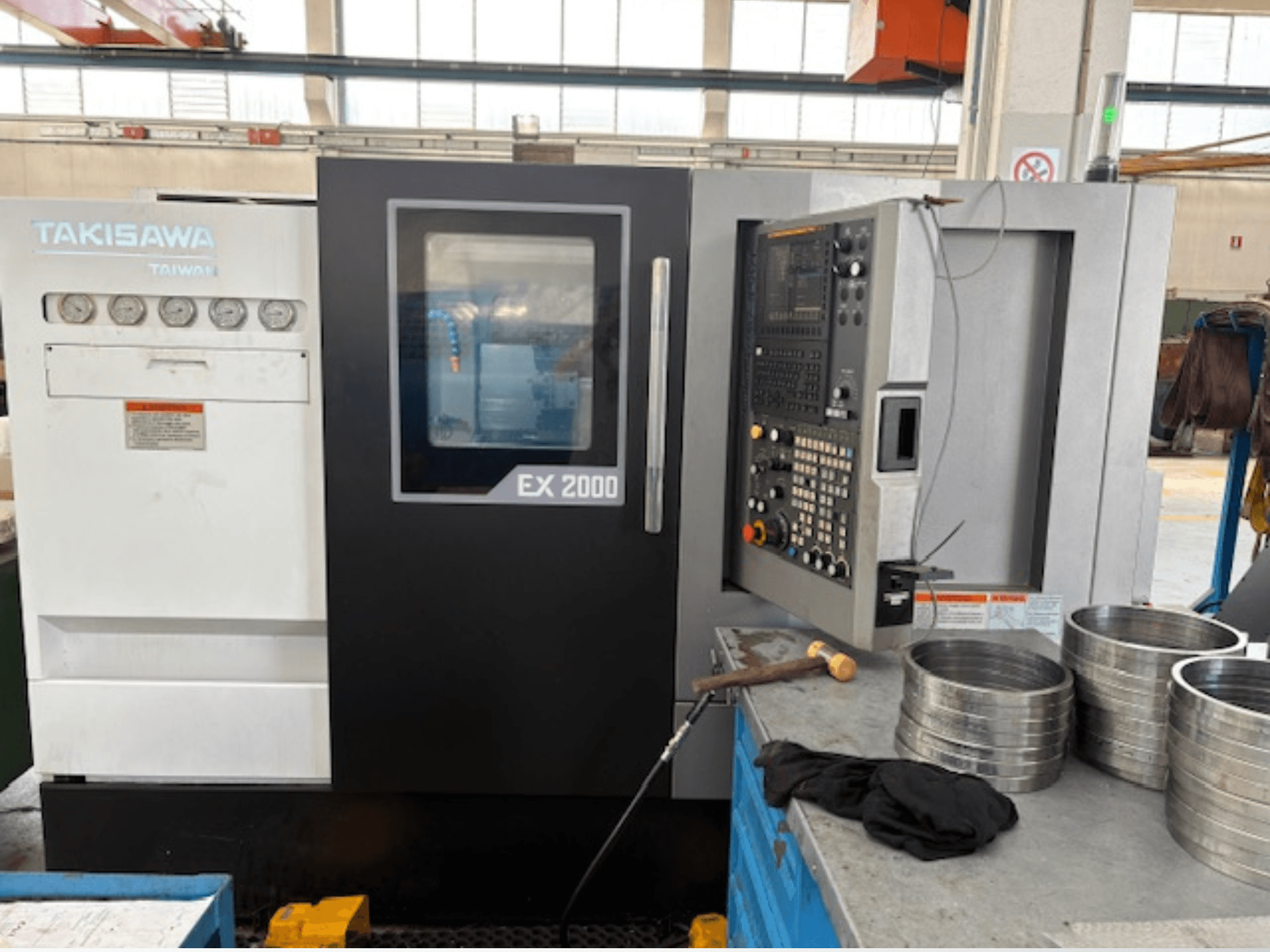

This 4-axis Takisawa EX 2000 MS was manufactured in 2020, featuring a Fanuc 0i-T Plus control system. It offers a max turning diameter of Ø 390 mm and a length of 510.5 mm, with a bar capacity of Ø 65 mm. The machine includes a 12-position driven turret and rapid traverse rates of 30 m/min on the X-axis and 36 m/min on the Z-axis. If you are looking to get high quality turning capabilities consider the Takisawa EX 2000 MS machine we have for sale. Contact us for more information.

Overview

brand: Takisawa
year: 2020
MODEL: EX 2000 MS
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine

Technical Information - Takisawa EX 2000 MS

General Data

Measurements width: 1987 mm
Measurements depth: 3847 mm
Measurements height: 1700 mm
Machine weight: 4200 kg

Movement

X-AXIS Movement: 250 mm
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 590 mm
B-AXIS Movement: 570 mm

Additional Information

Main Spindle Power: 15 kW
Sub Spindle Power: 11 kW
Main Spindle Torque: 224 Nm
Sub Spindle Torque: 58.5 Nm
Main Spindle Speed: 4500 rpm
Sub Spindle Speed: 5000 rpm
Main Spindle Nose: A2-6
Sub Spindle Nose: A2-5
Chuck Size Main: 8”
Chuck Size Sub: 6”
Table Size: 1350 × 690 mm
Positions: 12 driven positions
Max Turning Diameter: Ø 390 mm
Max Turning Length: 510.5 mm
Max Bar Capacity: Ø 65 mm
Max Swing Diameter: Ø 800 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
