- TAKISAWA TMM250-M3 Lathe

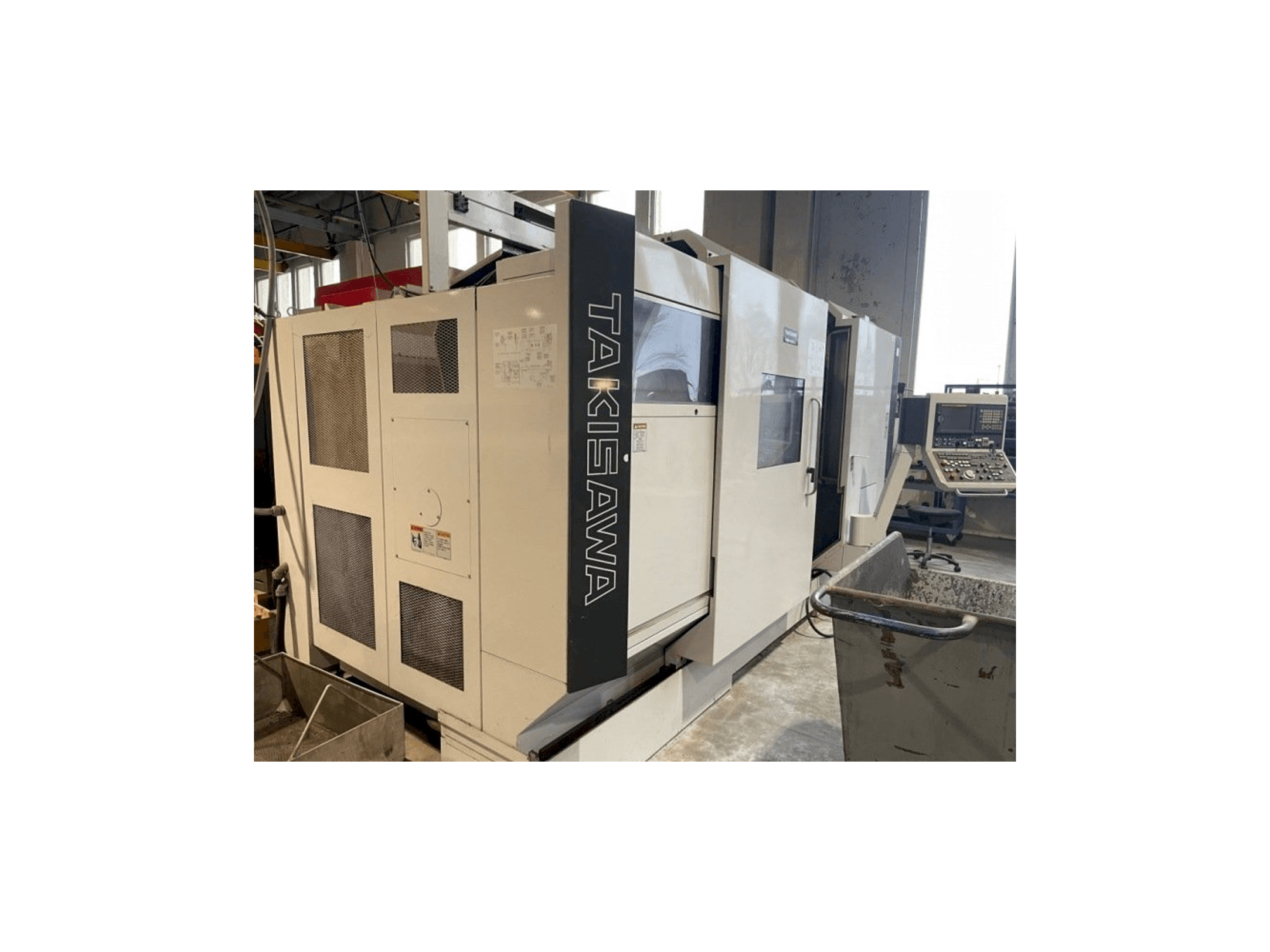

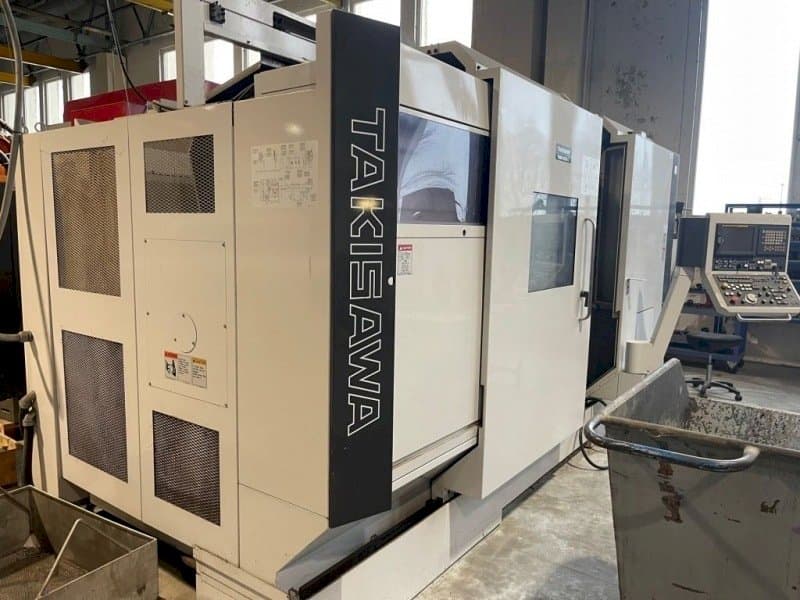

This TAKISAWA TMM250-M3 Lathe was made in 2008. It is equipped with a FANUC Series 180is-TB control unit. The machine has a spindle speed of 40-4000 rpm.
Overview
- brand: Takisawa
- year: 2008
- MODEL: TMM250-M3
- application type: Turning
- Location: France
- machine type: Lathe
- availability: Sold
- control unit brand: FANUC
Technical Information - Takisawa TMM250-M3
General Data
- Measurements width: 4880 mm
- Measurements depth: 2200 mm
- Measurements height: 3050 mm
- Machine weight: 10000 kg
Control Unit
- Brand: FANUC
- Model: Series 180is-TB
Main drive
- Number of spindles: 1
- Spindle speed range: 40-4000 1/MIN
- Spindle motor power: 22 kW
Movement
- X-AXIS Movement: 560 mm
- Y-AXIS Movement: 260 mm
- Z-AXIS Movement: 1300 mm
- B-AXIS Movement: 360º MM
Additional Information
- Technical Machine Benefits:
- - Capacity ø350×1300 mm, x1 y1 z1 x2 z2 a / b c 560×260 (±130)×1300×228×1260×1300 mm / 230°×360° (0,001° increment)
- - Swing over bed ø780 mm
- - Max turning diameter ø350 (500) mm
- - Maximum turning length between centers 1300 mm
- - Height of the spindle axis relative to the ground 1220 mm
- - Maximum distance between centres 1630 mm
- - Torque 433 nm
- - Nose a2-8
- - Recommended chuck size ø250 mm
- - Bar passage ø75 mm
- Qualitative Machine Benefits:
- - Indexable lower turret x2-axis 228 mm z2-axis 1260 mm
- - C-axis 0,001°
- - Bore ø86mm
- - Full power from 485 rpm
- - 30× atc
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
