- ➤ Used TECHNOLOGY TP 356 Alpha Series Punching machine

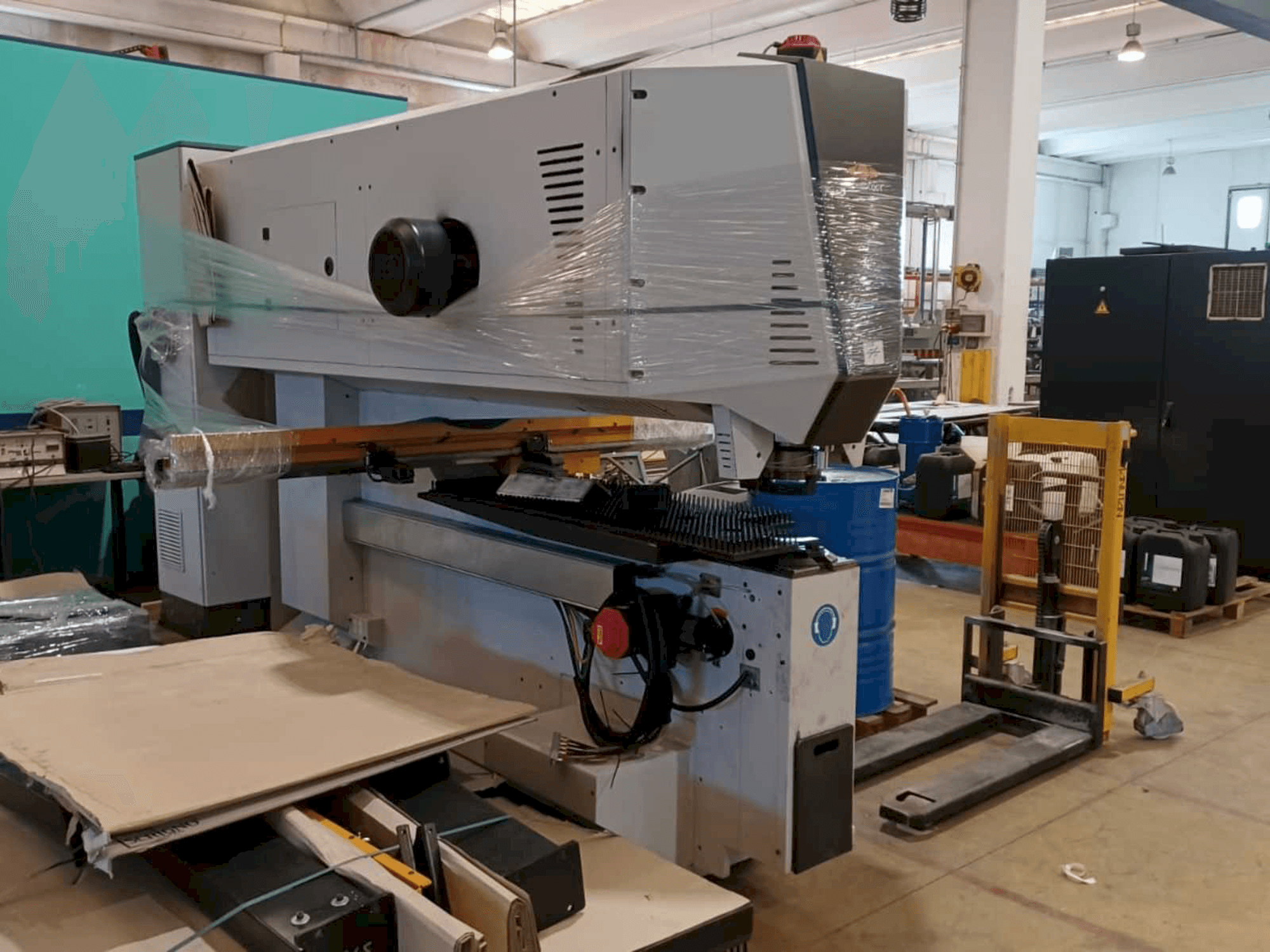

This TECHNOLOGY TP 356 Alpha Series Punching machine was manufactured in the year 2015. It is equipped with a Fanuc control unit. The machine has a punching force of 300 kN.
Overview
- brand: TECHNOLOGY
- year: 2015
- MODEL: TP 356 Alpha Series
- application type: Punching
- Location: Italy
- machine type: Punch-Laser Combination
- control unit brand: FANUC
Technical Information - TECHNOLOGY TP 356 Alpha Series
Control Unit
- Control Brand: FANUC
Dimensions
- Machine Depth: 4700 mm
- Machine Height: 2300 mm
- Machine Weight: 9500 kg
- Table Length: 1250 mm
- Table Width: 1550 mm
Technical Specification
- Punching Force: 300 Kn
Additional Information
Machine Benefits
Qualitative Machine Benefits
- The machine comes with 12 months warranty
Technical Machine Benefits
- With repositioning: 1250 x 3000mm
- Maximum sheet thickness: 6mm
- Maximum sheet weight: 150kg
- X axis displacement speed: 75m/min
- Y axis displacement speed: 60 m /min
- Tool change time: 12 seconds, tool change time with multitool: 1,5 seconds
- Punching accuracy: +/- 0,01 – (0,0003”)
- Max power consumption: 7kw, power consumption main motor: 1,5kw
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
