TELSONIC - TelsoSPlice TS3-6 P3.6 TableDE-3DP-TEL-2015-00001

14,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

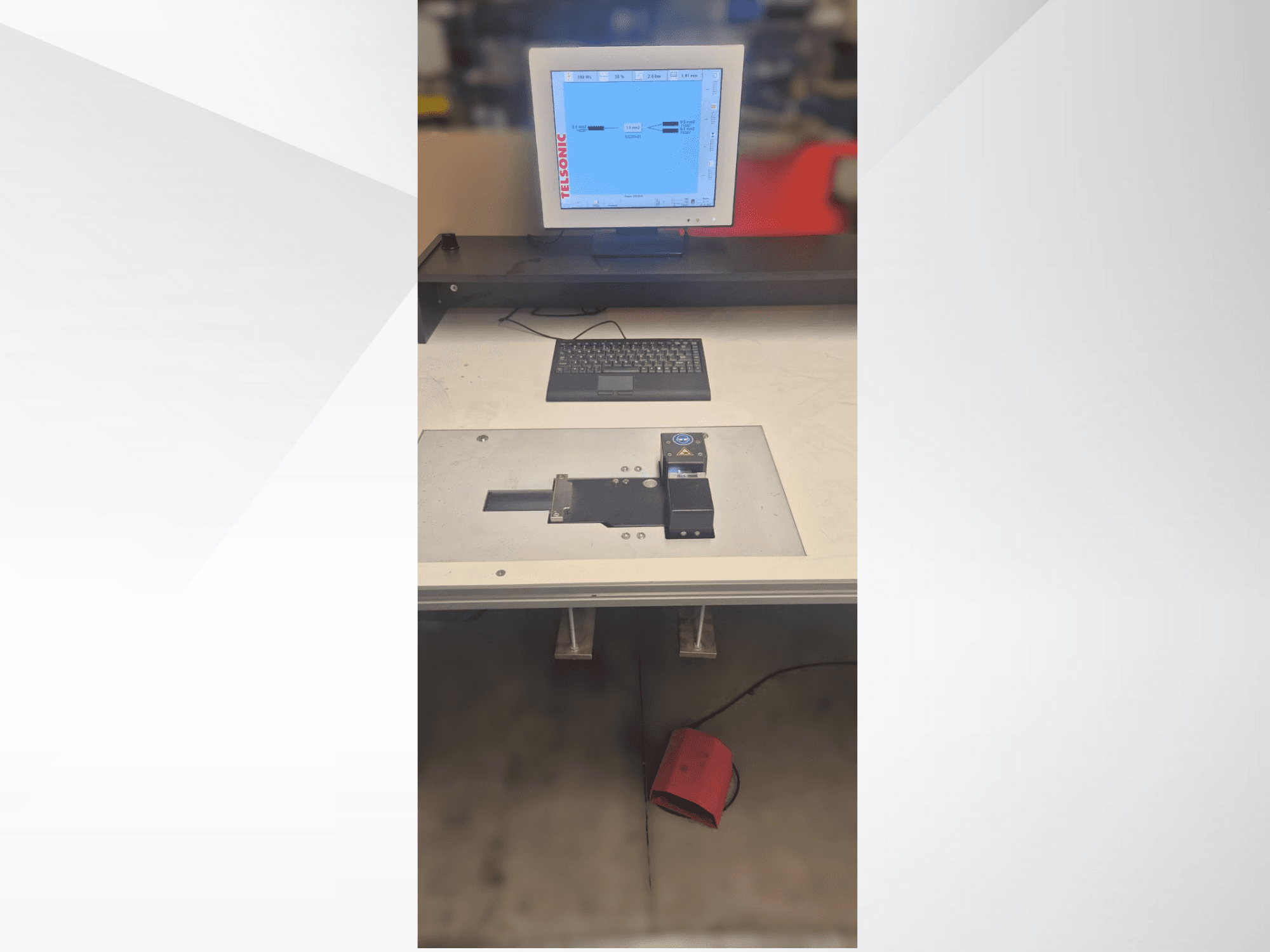

This TELSONIC TelsoSPlice TS3-6 P3.6 wire welding sytem was manufactured in 2015. It features a 15" SVGA touch screen, a pneumatic unit, and a 3.6kW WeldHead. The machine includes a barcode scanner, keyboard, and a spacious 2000 x 1000 mm table. Consider the opportunity to buy this TELSONIC TelsoSPlice TS3-6 P3.6 Table. Contact us for more information about this machine.

Overview

  • brand: TELSONIC
  • year: 2015
  • MODEL: TelsoSPlice TS3-6 P3.6 Table
  • application type: Other Plastic Processing Machinery
  • Location: Germany
  • machine type: Plastic Processing Machine
  • control unit brand:

Additional Information

  • System: TelsoSplice Plus

  • Technology: Ultrasonic wire splicing / wire compaction

  • Application: Ultrasonic welding of wire strands for splice production and compaction

  • Material Capability: Bare copper wires

  • Restriction: Wires must not be tinned

  • Plastic Welding Capability: Not suitable for plastic welding

  • Total Welding Counter: 1490 welds

  • Recorded Welds / Compactions: approx. 490

  • Ultrasonic Frequency: 20 kHz

  • Ultrasonic Power (Welding Tongs): 3 kW

  • Generator Power: 3.6 kW

  • Amplitude Accuracy: Stabilized ±3 %

  • Wire Cross Section Range: 0.26 mm² – 40 mm²

  • Cylinder Force at 6 bar: 1750 N

  • Cylinder Force at 7 bar: 2040 N

  • Insertion Stroke (Opening): 19 mm / 10.5 mm

  • Maximum Tool Torque: 20 Nm

  • Maximum Air Supply Pressure: 10 bar

  • Maximum Operating Pressure: 7 bar

  • Compressed Air Quality: ISO 8573-1:2010 [2:3:2]

  • Pneumatic Connection: Pneumatic hose Ø8 mm

  • Voltage Supply: 3 × 400 V / 230 V

  • Power Supply Type: 3LNPE

  • Frequency: 50 – 60 Hz

  • Nominal Current: 3.3 A

  • Maximum Peak Current: 6.0 A eff

  • Power Factor: cos φ > 0.95

  • Minimum Line Protection: 3 × 13 A slow-blow

  • Protection Class: IP20

  • Control System: SPC Module-4

  • Operating System: Windows Embedded Standard 7

  • Touch Panel PC: 15" SVGA Touchscreen

  • TelsoSplice Software Version: 3.5

  • TelsoSplice.EXE Version: 3.5.50929

  • Microsoft Framework Version: 4.0.30319.34209

  • Ultrasonic Generator: MAG

  • Generator Output Power: 3.6 kW

  • Weld Head: TS3-6

  • Power Cable: 3 × 400 V / 230 V MAG/SPC-4

  • Power Cable Length: 3 m

  • Pneumatic Unit: TelsoSplice TS

  • Adapter / Power Cable: MAG/SPC-4

  • Rack Housing: 19" 8U

  • Emergency Stop: TelsoSplice Table E-Stop

  • Foot Switch: TelsoSplice Foot Switch

  • Barcode Scanner: Manhattan CCD Long-Range

  • Keyboard: US Layout

  • Key Set: TelsoSplice Key Set

  • Cable Set: TelsoSplice Table / Standing Version

  • Machine Table: TelsoSplice Table L

  • Table Size: 2000 × 1000 mm

  • Complete System Weight (Table Version): approx. 103 kg

  • Operating Temperature Range: 10 °C – 40 °C

  • Humidity Range: 20 % – 80 % (non-condensing)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
