TESA - Scan 52DE-MEA-TES-2010-00002

Name: TESA Scan 52
Brand: TESA
SKU: DE-MEA-TES-2010-00002
Price: 10000 EUR
Availability: InStock

10,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used TESA Scan 52 For Sale | gindumac.com

Show in original language

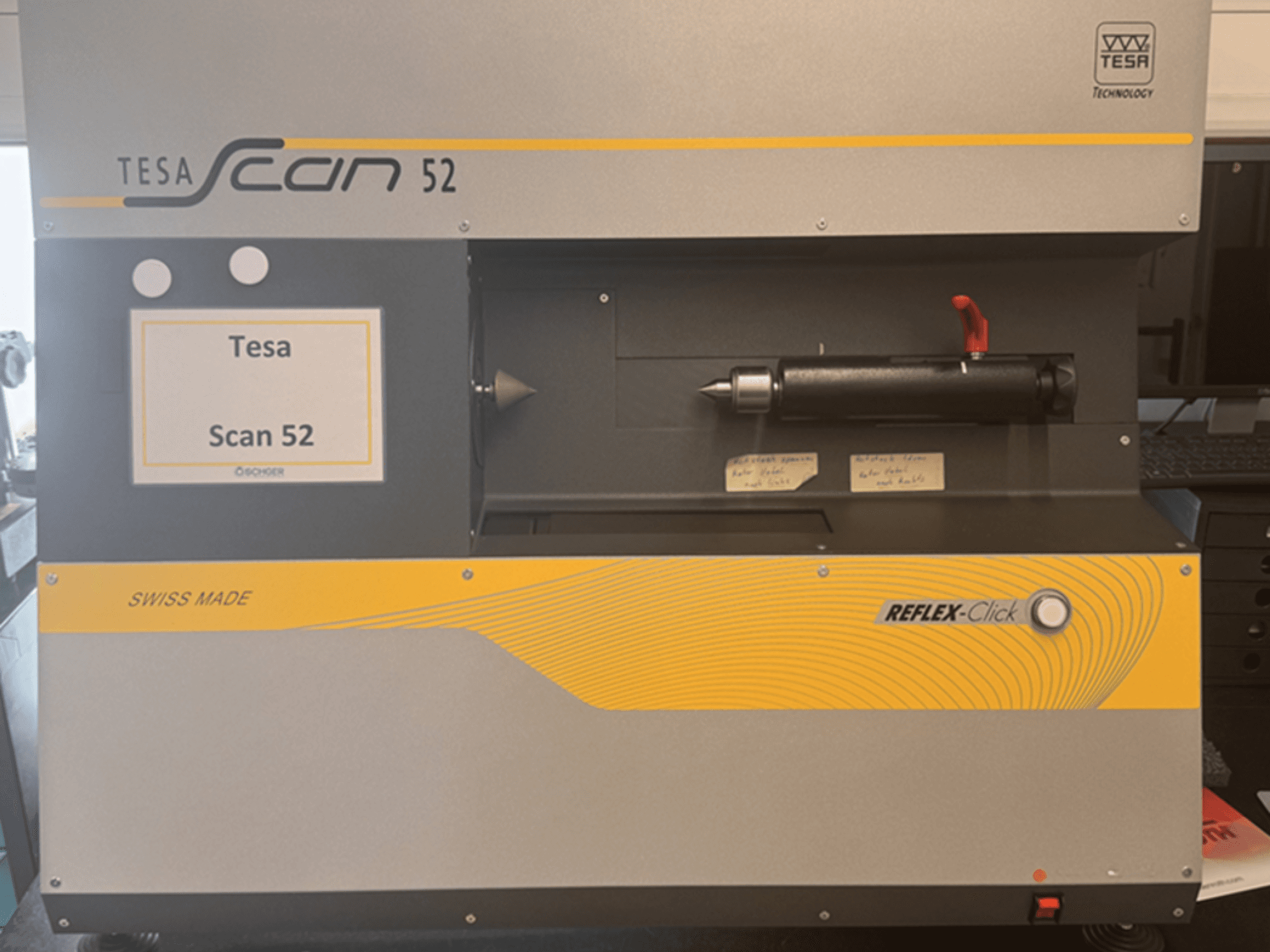

This 3-axis TESA Scan 52 was manufactured in 2010. It features a diameter measuring range of 0.5 - 52 mm and a maximum workpiece length of approximately 300 mm. The machine is equipped for dynamic display of measurement results and non-contact optical measurement, making it suitable for both static and dynamic measurements. If you are looking to get high-quality optical measurement capabilities, consider the TESA Scan 52 optical measurement machine we have for sale. Contact us for further details.

Overview

brand: TESA
year: 2010
MODEL: Scan 52
application type: Measuring
Location: Germany
machine type: Optical Measurement Machine

Additional Information

- Diameter Measuring Range: 0.5 - 52 mm

- Max. Workpiece Length: approx. 300 mm

- Max. Part Weight: 4 kg

- Voltage / Electrical Data: 24 VDC / 5 A

- Special Features: Dynamic display of measurement results, non-contact optical measurement, fast measurement without complex programming, suitable for static and dynamic measurements, Reflex Click

- Evaluation Capabilities: Diameter, length, angle, form and position tolerances, simple thread measurement, testing of steps, shoulders, and contours

- Scope of Delivery / Included Items: TESA Scan 52, centering points, ER32 collet set, monitor, computer/keyboard and mouse, operating/programming manual

- Maintenance & Calibration: Last successfully calibrated on 15.02.2023

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
