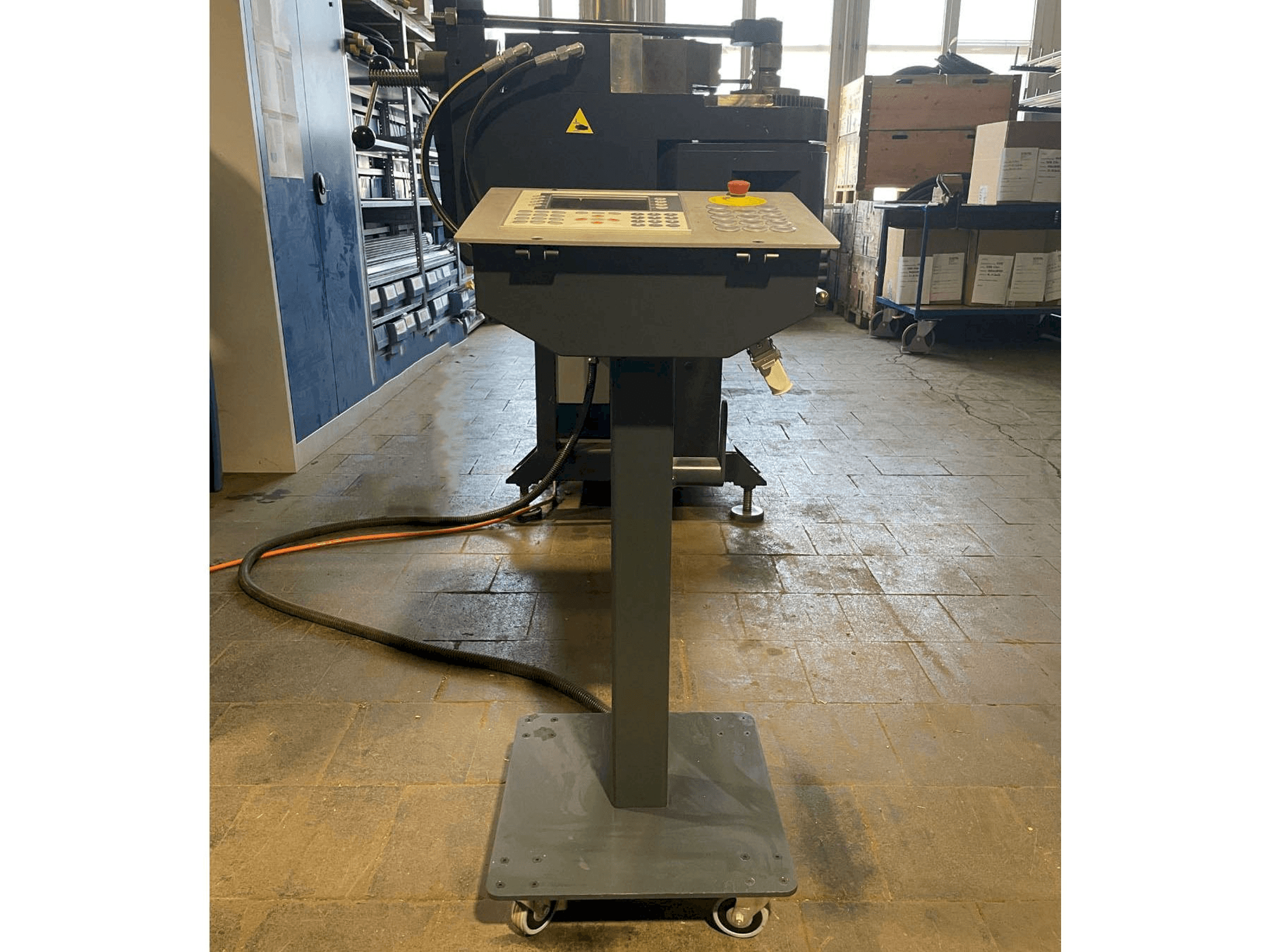

Thoman FK50-3A-NC

Machine Benefits

• Technical Machine Benefits:
  • - Installed drive power 5. 5 k
  • - System pressure 250 bar
  • - Operating voltage 400 v 16
  • - Maximum pipe pull-in dimension 3800mm
  • - Length of machine bed 4500m
  • - Round tubes from 5 to 50 mm x 2. 9 mm steel
  • - Maximum bending radius ra max = 150mm
  • - Maximum bending angle 180° + 10° overbending
  • - Feed speed 300mm/se rotation axis:
  • - Drive controlled hydraulically
• Qualitative Machine Benefits:
  • - Hydraulically controlled drive, rapid-creep positioning
  • - Accuracy 0. 1° - max. Bending speed 45° sec (forward)
  • - Flexible shaft and pinion in one piece, no feather key connection
  • - Flexible shaft with double roller bearings, thus free from play, wear and maintenance (low) - flexible arm supported at the bottom
  • - Clamping cylinder on top adjustable clamping force - anti-clockwise bending direction feed axis:
  • - Drive controlled hydraulically - positioning: rapid-creep-stop - accuracy 0. 3 mm / max.
  • - Positioning: rapid-creep-stop
  • - Clamping function tube feed: - hydraulic - pipe clamping using standard collets - long-neck chuck enables the pipe to be released in the - slide rail area clamping function on the bending tool:
  • - Hydraulic - adjustable clamping force
