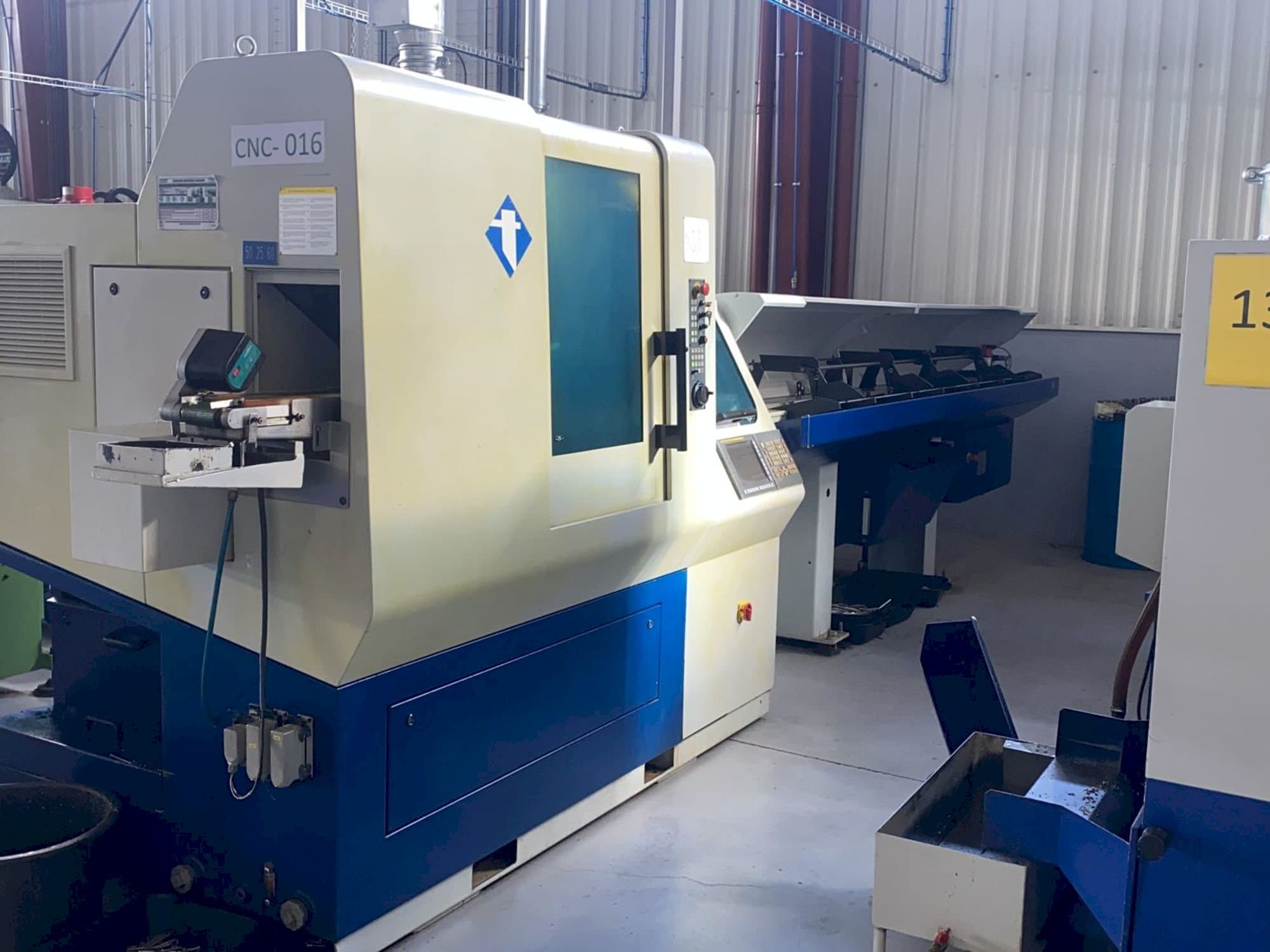

This Tornos DECO 20S Lathe machine from Switzerland was manufactured in 2006. It has been working for 42794 hours. It is operated through a Fanuc 31i control unit. This machine incorporates a spindle speed up to 10000 rpm and a spindle power of 5.5 kW. It includes a ROBOBAR 3000mm bar feeder and a set of tools, guide bush, collects and 3 drivens. Machine in very good condition.
Overview
- brand: Tornos
- year: 2006
- MODEL: DECO 20S
- production hours: 42794
- application type: Turning
- Location: Portugal
- machine type: Lathe
- availability: Sold
- control unit brand: Fanuc
- GINDUMAC ID: PT-TUR-TOR-2006-00001
Technical Information
General Data
- Measurements width: 2400 mm
- Measurements depth: 1380 mm
- Measurements height: 2050 mm
- Machine weight: 3000 kg
Control Unit
- Brand: Fanuc
- Model: 31i
Main drive
- Number of spindles: 2
- Spindle speed range: 10000 1/MIN
- Spindle motor power: 5.5 kW
- Stroke: 230 mm
- Number of axis: 8
Media
- Main electronic connection: 400 V
- Power consumption: 14 kW
Additional Equipment
- - ROBOBAR 3000mm bar feeder
- - set of tools: guide bush, collects and 3 drivens tools
Additional Information
- Technical Machine Benefits:
- - Spindle max. Diameter of the bar: 26 mm
- - Spindle c axis indexing accuracy: 0. 001°
- - Sub-spindle max. Diameter of the bar: 26 mm
- - Sub-spindle speeds: 10000 rpm
- - Sub-spindle power: 5. 5 kw
- - Sub-spindle c-axis indexing accuracy: 0. 1 °
- - Number of guide bushing brackets: 2
- Qualitative Machine Benefits:
- - Very good conditions
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
