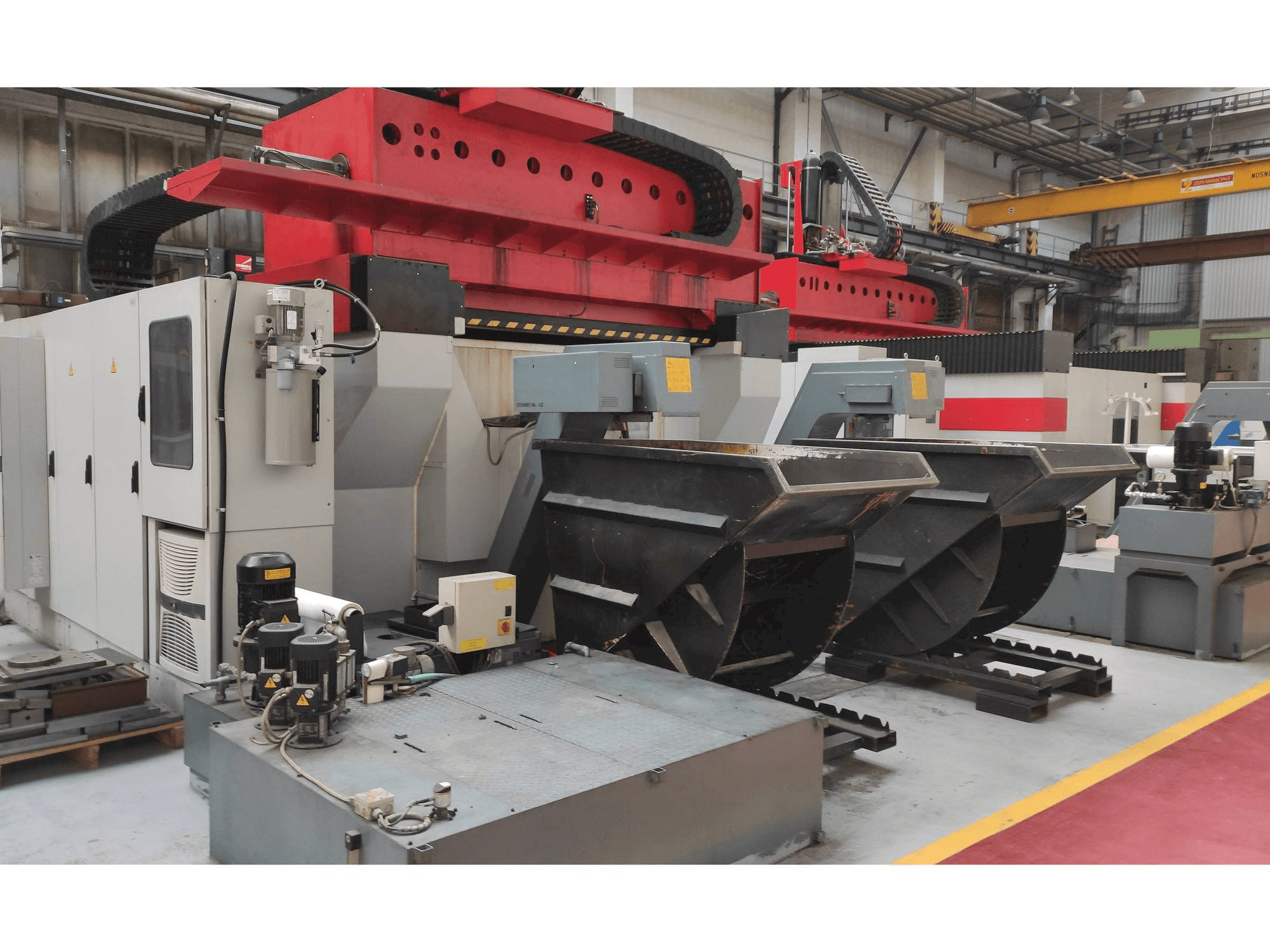

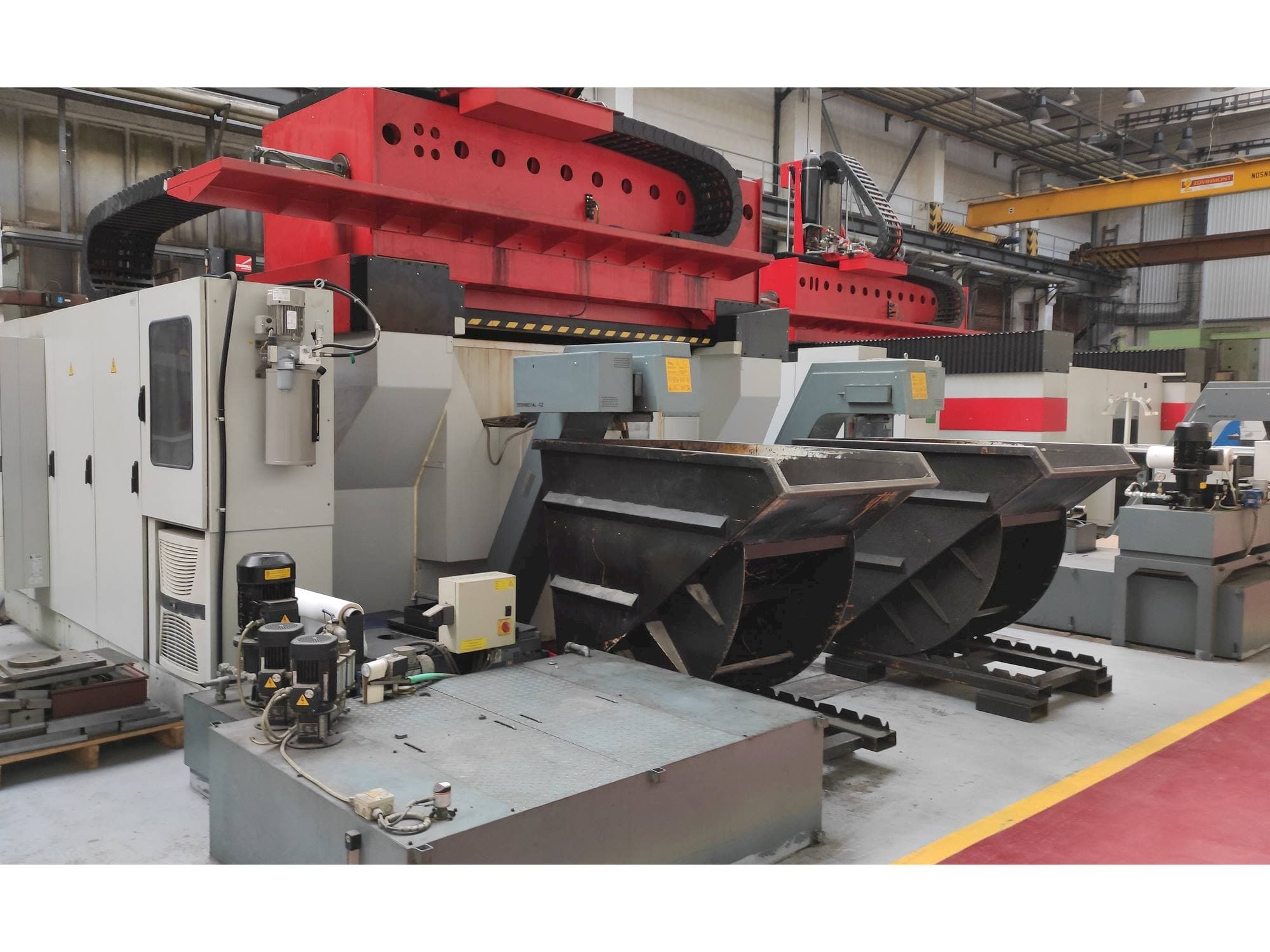

Front view of TRIMILL VU 2313  machine

TRIMILL VU 2313

TRIMILL - VU 2313

2010

142,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Trimill VU 2313 Vertical Machining center was manufactured in the year 2010 in the Czech Republic and has 68648 hours, of which 40637 are spindle hours. It is equipped with a Heidenhain iTNC530 control unit and has 5 axis. The machine has a spindle speed of 10000 rpm, is in good condition, and is well maintained.

Overview

  • brand: TRIMILL
  • year: 2010
  • MODEL: VU 2313
  • production hours: 68648
  • application type: Milling
  • Location: Czech Republic
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: Heidenhain
  • GINDUMAC ID: CZ-MIL-TRI-2010-00001

Technical Information

General Data

  • Machine weight: 36000 kg

Control Unit

  • Brand: Heidenhain
  • Model: iTNC530

Main drive

  • Number of spindles: 1
  • Spindle speed range: 10000 1/MIN
  • Number of axis: 5

Movement

  • X-AXIS Movement: 2300 mm
  • Y-AXIS Movement: 1300 mm
  • Z-AXIS Movement: 1000 mm

Workpiece

  • Workpiece weight: 18000 kg

Table

  • Outer length: 1800 mm
  • Outer width: 1800 mm
  • TSlots size: 11
  • Distance between: 160 mm

Tools

  • Slots in storage: 10
  • Max weight: 12 kg
  • Max tool diameter: 110/125 mm
  • Max tool length: 450 mm
  • Type of tool holder: HSK-A 100

Media

  • Main electronic connection: 3x400 V
  • Power consumption: 59 kVa

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Spindle motor power/torque 25 kw / 195 nm
      • - B-axis (head) -2°/+92°
      • - C-axis table n x 360°
      • - Working feedrates x, y, z 30. 000 mm/min
      • - Rapid feedrates x, y, z 3 m/sec²
      • - Through spindle coolant
    • Qualitative Machine Benefits:
      • - Good condition!

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
