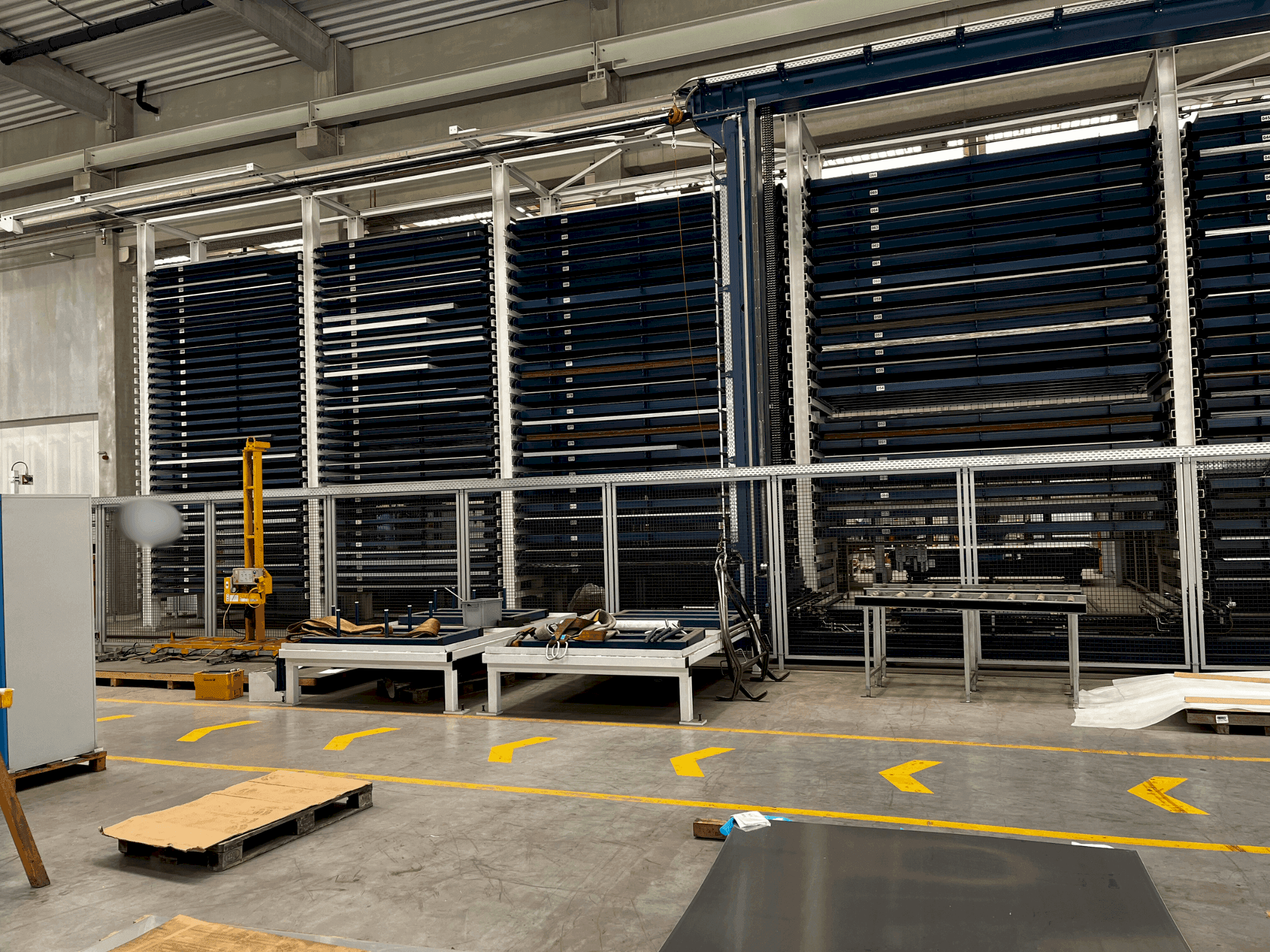

This TRUMPF STOPA was manufactured in 2019. It features a robust storage system with a maximum payload of 5,000 kg per pallet and a system length of approximately 33,600 mm. The machine includes a scissor lift table and pneumatic locks for secure handling. Ideal for large-scale storage and handling, the TRUMPF STOPA machine we have for sale is a significant asset for efficient operations. Contact us for more information.
Overview
- brand: TRUMPF
- year: 2019
- MODEL: STOPA
- application type: Other Automation Equipment
- Location: Germany
- machine type: Automation System
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Racking block configuration 6 x rack blocks, arranged in single rows (0 + 6) 1 x sf rack blocks, arranged in single rows (0 + 1) 3 x xf shelf blocks, arranged in single rows (0 + 3) 2 x gf shelf blocks, arranged in single rows (0 + 2)
- Scissor lift table pluggable stops for common coordinate corner pneumatic carriage lock 3 x pneumatic pallet locks height top edge of pallet: approx. 1,200 mm
- Assembly requirements: at least 200 mm assembly clearance or at least 500 mm clearance with a crane passing over.
- Versatile loading options for manual and automated processes.
Technical Machine Benefits
- Payload per pallet:sf/xf: max. 5,000 kg gf: max. 3,000 kg
- Usable pallet area:sf: max. 6,096 x 2,032 mm xf: max. 4,064 x 2,032 mm gf: max. 3,050 x 1,525 mm
- Loading height per pallet:sf: max. 55 mm xf/gf: max. 90 mm
- Gross number of storage locations:sf: 24 pcs xf: 72 pcs gf: 64 pcs
- Net number of storage locations (loading height 1):sf: 21 pcs xf: 69 pcs gf: 64 pcs
- Longitudinal travel: 100 m/min
- Hoist: 23 m/min
- Pull: 20 m/min
- Station 2 manual loading trulaser 6030, long side sf/xf transport carriage with fixed height pneumatic trolley lock 2 x pneumatic pallet locks height top edge of pallet: approx. 900 mm max. Loading height sf: 55 mm max. Loading height xf: 90 mm 8 m rail above floor
- Station 3 loading trumatic 7000 sheetmaster connection, lengthwise xf/gf transport carriage with fixed height pneumatic trolley lock 2 x pneumatic pallet locks height top edge of pallet: approx. 850 mm max. Loading height xf: 90 mm max. Loading height gf: 90 mm 10 m track above ground
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
