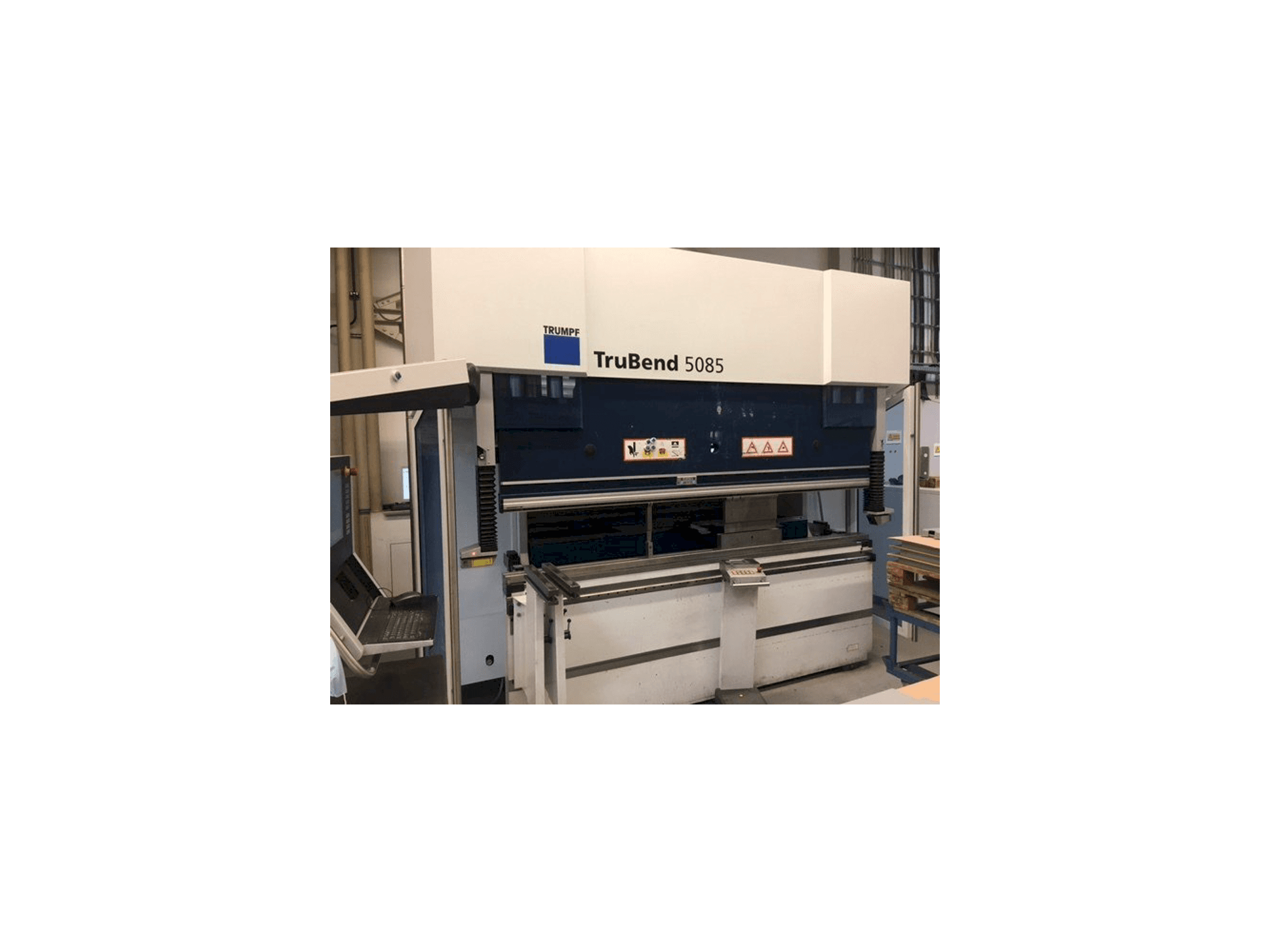

Front view of Trumpf TruBend 5085 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TruBend 5085

TRUMPF - TruBend 5085DE-BEN-TRU-2010-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

This Trumpf TruBend 5085 Bending Machine was built in the year 2010 in Austria. It is equipped with a TRUMPF TASC 6000 control unit. This machine can work with a pressing force up to 850 kN and a bending lenght 2720 mm. It has 4 axis and therefore no separately adjustable stops. This machine is ACB capable

Overview

brand: TRUMPF
year: 2010
MODEL: TruBend 5085
application type: Bending
Location: Germany
machine type: Press Brake
availability: Sold
control unit brand: TRUMPF

Technical Information - TRUMPF TruBend 5085

General Data

Machine weight: 8600 kg

Control Unit

Brand: TRUMPF
Model: TASC 6000

Main drive

Pressing force: 850 KN
Bending length: 2720 Mm
Stroke: 445 mm
Number of axis: 4

Media

Main electronic connection: 400 V 50 HZ
Power consumption: 17 kva
Air pressure: 6 bar

Additional Information

Machine Benefits

Technical Machine Benefits:
- - The machine has 4 axes and therefore no separately adjustable stops
- - The machine is acb capable - no acb are included in the scope of delivery
- - Enlargement installation height/stroke + 230mm
- - Backgauge system 4-axis
- - Upper tool clamping hydraulic
- - Cnc crowning
- - Bendguard (for 220 mm/s)
- - Tool clamping lower tool holder
- - Hydraulic clamping
- - Hardened lower tool shift 2 positions
Qualitative Machine Benefits:
- - Pneumatic

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
