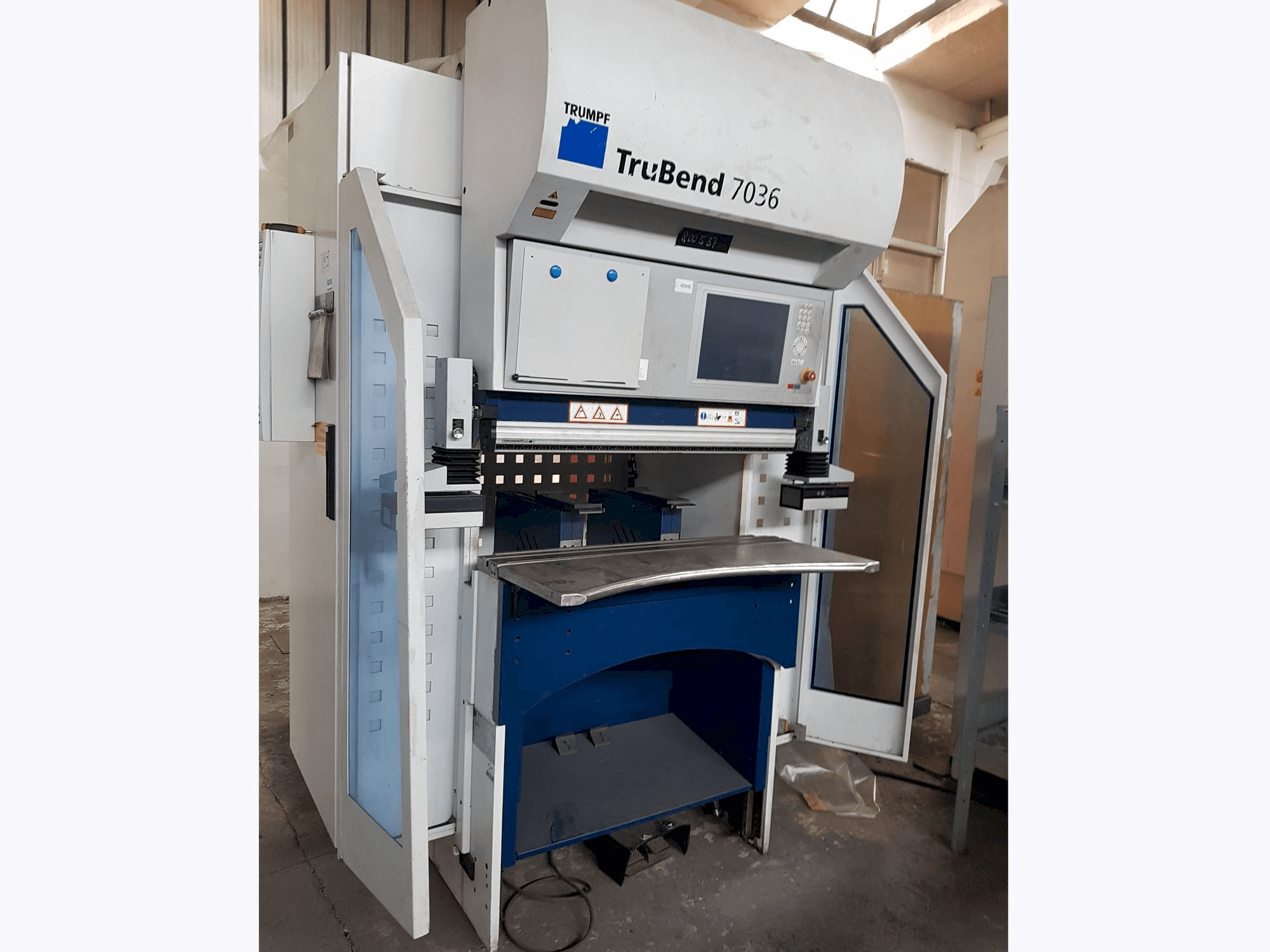

Front view of Trumpf TruBend 7036 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TruBend 7036

Photo Gallery

TRUMPF - TruBend 7036PL-BEN-TRU-2010-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Trumpf TruBend 7036 | Bending Machine For Sale

Show in original language

This Trumpf TruBend 7036 bending machine was manufactured in 2010. The 6 axis machine has a total of 15550 production hours. It is operated through a Trumpf TASC 6000 control unit. It has a press force of 360 kN. The machine is in very good working condition and it is regularly serviced by Trumpf service. The service documents are available and it is ready for tests.

Overview

brand: TRUMPF
year: 2010
MODEL: TruBend 7036
production hours: 15550
application type: Bending
Location: Poland
machine type: Press Brake
control unit brand: TRUMPF

Technical Information - TRUMPF TruBend 7036

Control Unit

Control Brand: TRUMPF
Control Model: TASC 6000

Dimensions

Machine Depth: 1330 mm
Machine Height: 2380 mm
Machine Weight: 2600 kg

Movement

X-axis Travel: 240 mm

Technical Specification

Pressing Force: 360 Kn

Additional Information

Machine Benefits

Technical Machine Benefits

Max bending length- 1020 mm
Usable installation height – 300 mm
Table/beam distance - 420 mm
Width between columns – 932 mm
Y axis stroke- 120 mm
Max gauge area in x 500 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
