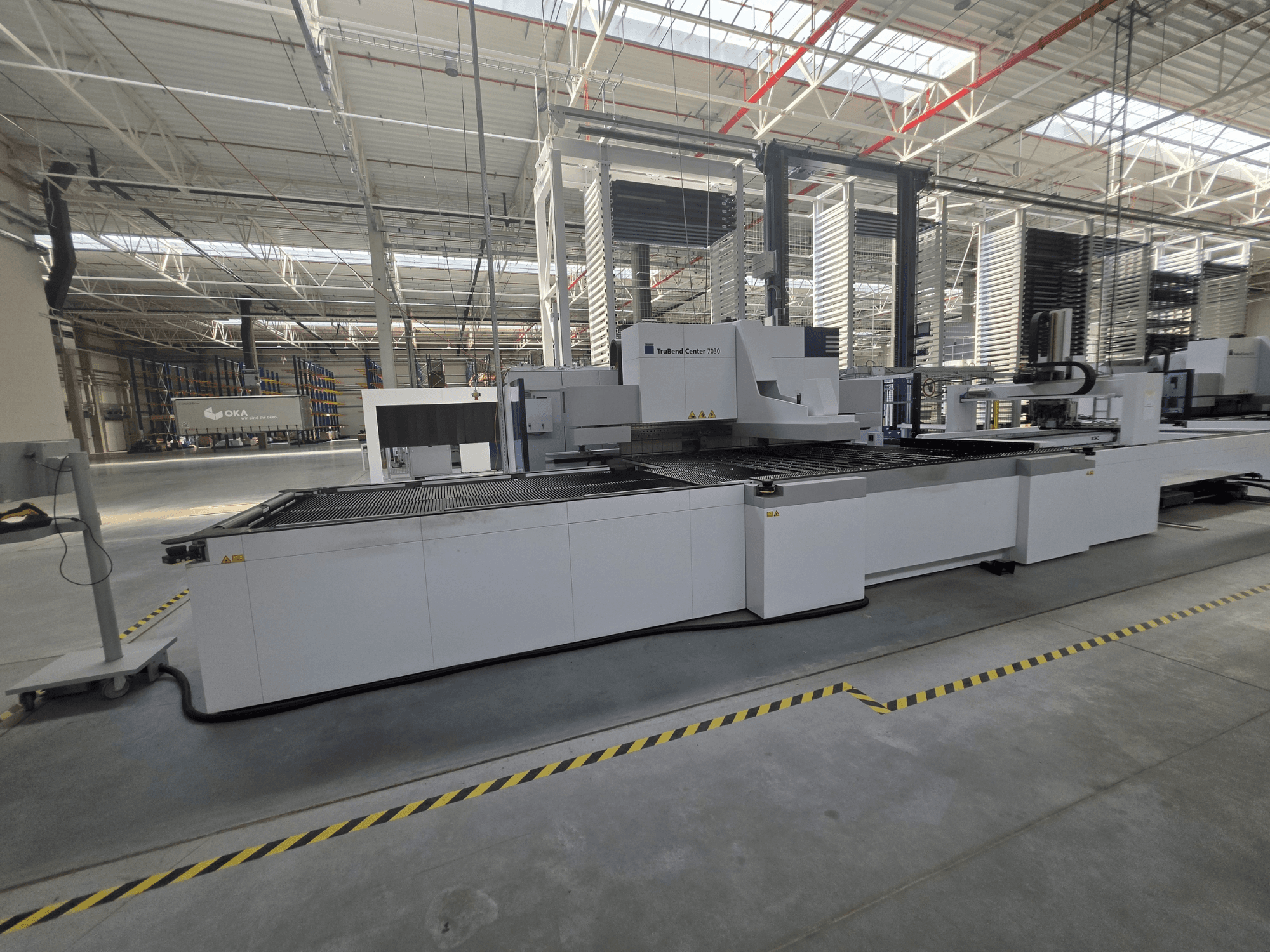

TRUMPF - TruBend Center 7030 (B34)PL-OTH-TRU-2023-00001

• Construction: Welded steel frame; Bending system: Wedge drive; Crowning: Included, adjustable via control

• Capacities

  • Max bending edge length: 3,123 mm

  • Min bending edge length: 200 mm

  • Min bending width with standard holder: 145 mm

  • Min bending width with ENW tools: 40 mm

  • Max box height: 220 mm

  • Holder clamping force: 101 t

  • Material thickness: min 0.4 mm; max structural steel 3.0 mm; max stainless 2.2 mm; max aluminum 4.0 mm

• Manipulation and positioning (integrated)

  • 2-axis part manipulator with 12 suction modules; X travel 2,653 mm; stroke 100 mm

  • 5-axis rear stop; Rotary manipulator; Front stop; Loading pincers

  • Automatic part positioning and rotation

• Speeds

  • Y-axis rapid traverse: 250 mm/s

  • Front stop: 3,000 mm/s

  • Part manipulator: 3,000 mm/s

  • Rotary manipulator: up to 3 rev/s

  • ToolMaster Bend: 2,400 mm/s

• Positioning accuracy

  • Y: 0.10 mm; X: 0.05 mm; R: 0.05 mm

• CNC control

  • 21.5" touchscreen; Windows 7 Ultimate 64-bit; keyboard and mouse

  • USB; RJ45; Ethernet 10/100 Mbit/s; Internet teleservice/remote diagnostics

• Programming software

  • TecZone Fold floating license

  • Automatic programming from 2D/3D, automatic bending program generation

  • 3D bending simulation; collision checking; manual program modification

• ToolMaster Bend (automatic tool handling)

  • Automatic hold-down tool positioning and setup per program

  • Automatic positioning of standard, Pick&Place, and curved holders

• Included tooling

  • 16 standard hold-down tools (160 mm each)

  • 6 Pick&Place hold-down tools; segments 10/15/20/40 mm

  • Corner hold-down tool, length 199 mm

  • OBW90 and UBW90 bending tools

• ENW equipment

  • ENW function for tilting hold-down tools

  • ENW110-40 tool, length 3,123 mm, depth 40 mm

  • Min bending width with ENW: 40 mm

• Bend angle measurement

  • Optical bend-angle assistance with integrated camera

  • Graphical comparison of programmed vs. actual angle

  • Minimum part-side length for angle measurement: 10 mm

• Safety

  • CE certification; rotating safety doors; safety light barriers

  • Working-area access protection; foot switch with enable; emergency stop

• Electrical power supply: 80 kVA

Additional equipment

• Automatic loading/unloading system with storage interface

  • Automatic blank separation and feeding; transfer to bending center

  • Automatic finished-part unloading with belt conveyor

  • Max blank size: 3,048 x 1,500 mm

  • Storage interface included

  • Loading trolley: not included

  • Rail set: not included

• Additional part handling modules

  • 12 three-surface vacuum modules (upper/lower/front suction)

  • 6 magnetic modules and 4 two-surface magnetic modules

  • Vacuum and magnetic modules can be used together

• Identification and connectivity accessories

  • Wireless 2D code reader with Bluetooth

  • Barcode and DataMatrix code reading

  • Automatic production program loading
