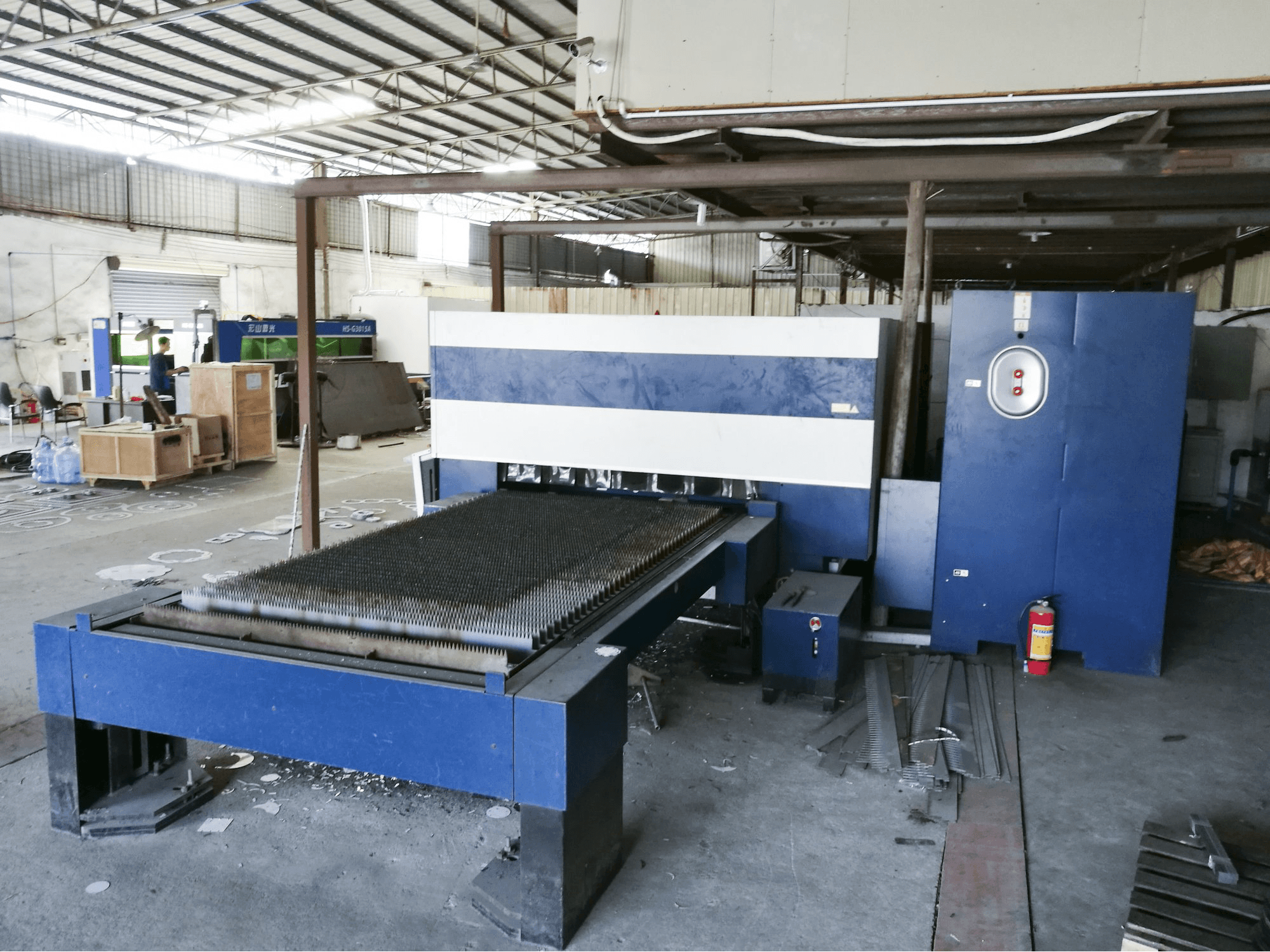

Right view 1 of Trumpf TruLaser 3030 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TruLaser 3030

Photo Gallery

TRUMPF - TruLaser 3030CN-LAS-TRU-2014-00005

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ For Sale: Trumpf TruLaser 3030 Laser Cutting Machine

Show in original language

This Trumpf TruLaser 3030 Laser Cutting Machine was produced in 2014 and has been in operation for 6758 hours. Managed by a SIEMENS SINUMERIK 840D Control unit, this solid and efficient machine features an incorporated German-quality laser and comes with two laser-cutting heads (f=130 and f=250) as additional equipment.

Overview

brand: TRUMPF
year: 2014
MODEL: TruLaser 3030
production hours: 6758
application type: Cutting
Location: China
machine type: CO2 Laser Cutting Machine
control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser 3030

General Data

Measurements width: 9155 mm
Measurements depth: 3400 mm
Measurements height: 2200 mm
Machine weight: 12000 kg

Control Unit

Model: SINUMERIK 840D
Interface: USB, Ethernet
Brand: SIEMENS

Main drive

Number of spindles: 1
Laserpower: 4 kW

Movement

X-AXIS Movement: 3000 mm
X-AXIS Working Feed: 60 m/min
Y-AXIS Movement: 1500 mm
Y-AXIS Working Feed: 60 m/min
Z-AXIS Movement: 115 mm
Z-AXIS Working Feed: 60 m/min
X-Y-Simultaneous Working Feed: 85 m/min
Pa Accuracy: 0.1
Ps Accuracy: 0.03

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1500 mm

Table

Outer length: 3000 mm
Outer width: 1500 mm

Max Material thickness

Steel: 20 mm
Stainless steel: 15 mm
Aluminum: 10 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 88 kVA
Air pressure: 6 bar
He consumption: 13.1 l/h
CO2 consumption: 1.1 l/h
N2 consumption: 5.8 l/h
Lubrication tank: 95 L

Additional Equipment

- Laser cutting head f = 130
- Laser cutting head f = 250

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
