➤ Trumpf TruLaser 3030 Machine - Secondhand

Show in original language

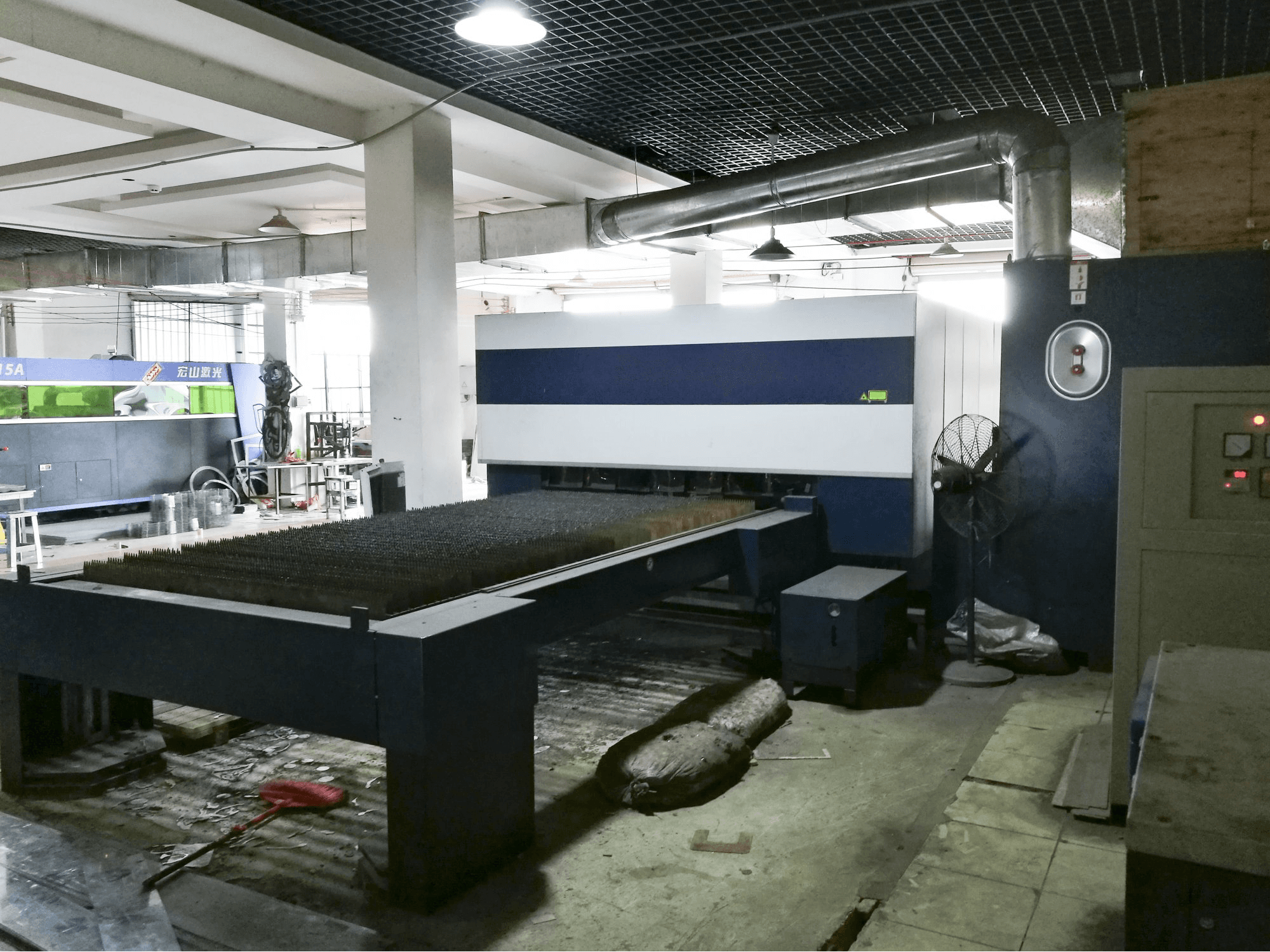

This Trumpf TruLaser 3030 Laser Cutting Machine from 2015 is a very young equipment, with a production record of only 6770 hours. With a SIEMENS SINUMERIK 840D Control Unit and a German-manufactured quality laser, the machine stands out in the market for its reliability and high dynamism. As additional equipment, two laser-cutting heads (f=130 and f=250) are included.

Overview

brand: TRUMPF
year: 2015
MODEL: TruLaser 3030
production hours: 6770
application type: Cutting
Location: China
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser 3030

General Data

Measurements width: 9155 mm
Measurements depth: 3400 mm
Measurements height: 2200 mm
Machine weight: 12000 kg

Control Unit

Brand: SIEMENS
Model: SINUMERIK 840D
Interface: USB, Ethernet

Main drive

Number of spindles: 1
Laserpower: 4 kW

Movement

X-AXIS Movement: 3000 mm
X-AXIS Working Feed: 60 m/min
X-AXIS Rapid traverse: 140 m/min
Y-AXIS Movement: 1500 mm
Y-AXIS Working Feed: 60 m/min
Y-AXIS Rapid traverse: 140 m/min
Z-AXIS Movement: 115 mm
Z-AXIS Working Feed: 60 m/min
Z-AXIS Rapid traverse: 140 m/min
X-Y-Simultaneous Working Feed: 85 m/min
Pa Accuracy: 0.1
Ps Accuracy: 0.03

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1500 mm

Table

Outer length: 3000 mm
Outer width: 1500 mm

Max Material thickness

Steel: 20 mm
Stainless steel: 15 mm
Aluminum: 10 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 88 kVA
Air pressure: 6 bar
He consumption: 13.1 l/h
CO2 consumption: 1.1 l/h
N2 consumption: 5.8 l/h
Lubrication tank: 95 L

Additional Equipment

- Laser cutting head f = 130
- Laser cutting head f = 250

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
