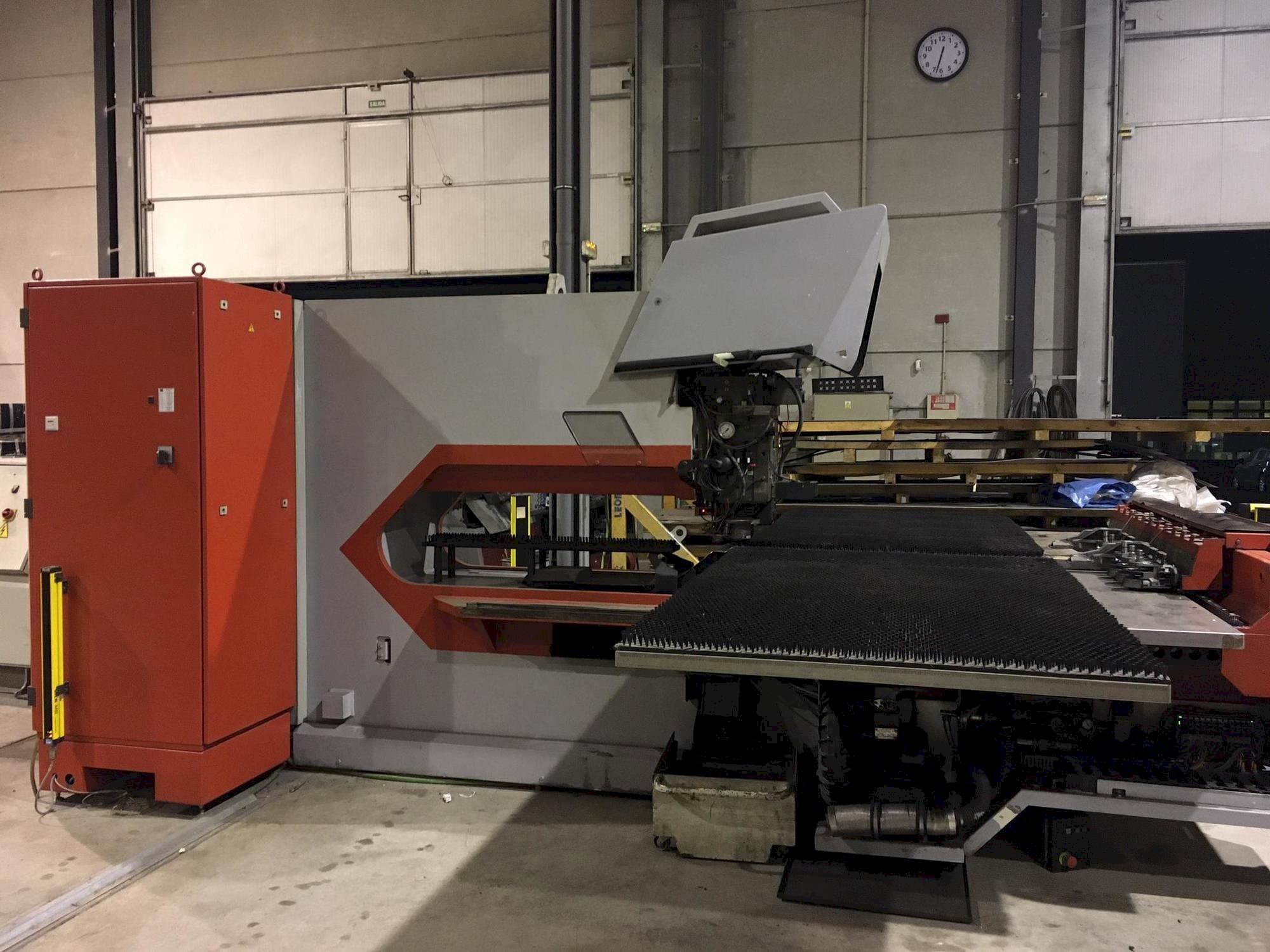

Front view of Trumpf Trumatic 2000 R machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic 2000 R

Photo Gallery

TRUMPF - Trumatic 2000 RES-PUN-TRU-1999-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Trumpf Trumatic 2000 R Punching Machine

Show in original language

This Trumpf Trumatic 2000 R Punching Machine was made in Germany in the year 1999. It has a production record of only 19542 hours. It is operated through a Bosch control unit. This machine can work with a punching force of 180 kN.

Overview

brand: TRUMPF
year: 1999
MODEL: Trumatic 2000 R
production hours: 19542
application type: Punching
Location: Spain
machine type: Punch-Laser Combination
availability: Sold
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 2000 R

General Data

Measurements width: 6000 mm
Measurements depth: 4100 mm
Measurements height: 2070 mm
Machine weight: 8200 kg

Control Unit

Brand: BOSCH

Main drive

Punching force: 180 kN

Movement

X-AXIS Movement: 2500 mm
X-AXIS Working Feed: 90 m/min
Y-AXIS Movement: 1250 mm
Y-AXIS Working Feed: 60 m/min
X-Y-Simultaneous Working Feed: 180 m/min
C-AXIS Movement: 360° MM
Pa Accuracy: 0.1
Ps Accuracy: 0.03

Workpiece

Workpiece z: 6.4 mm
Workpiece weight: 75 kg

Table

Max punching diameter: 76 mm

Tools

Slots in storage: 10

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 17 kVA
Air pressure: 7-14 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
