TRUMPF Trumatic 2000 R
TRUMPF - Trumatic 2000 R
2001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- Trumpf Trumatic 2000 R Turret Punching Machine

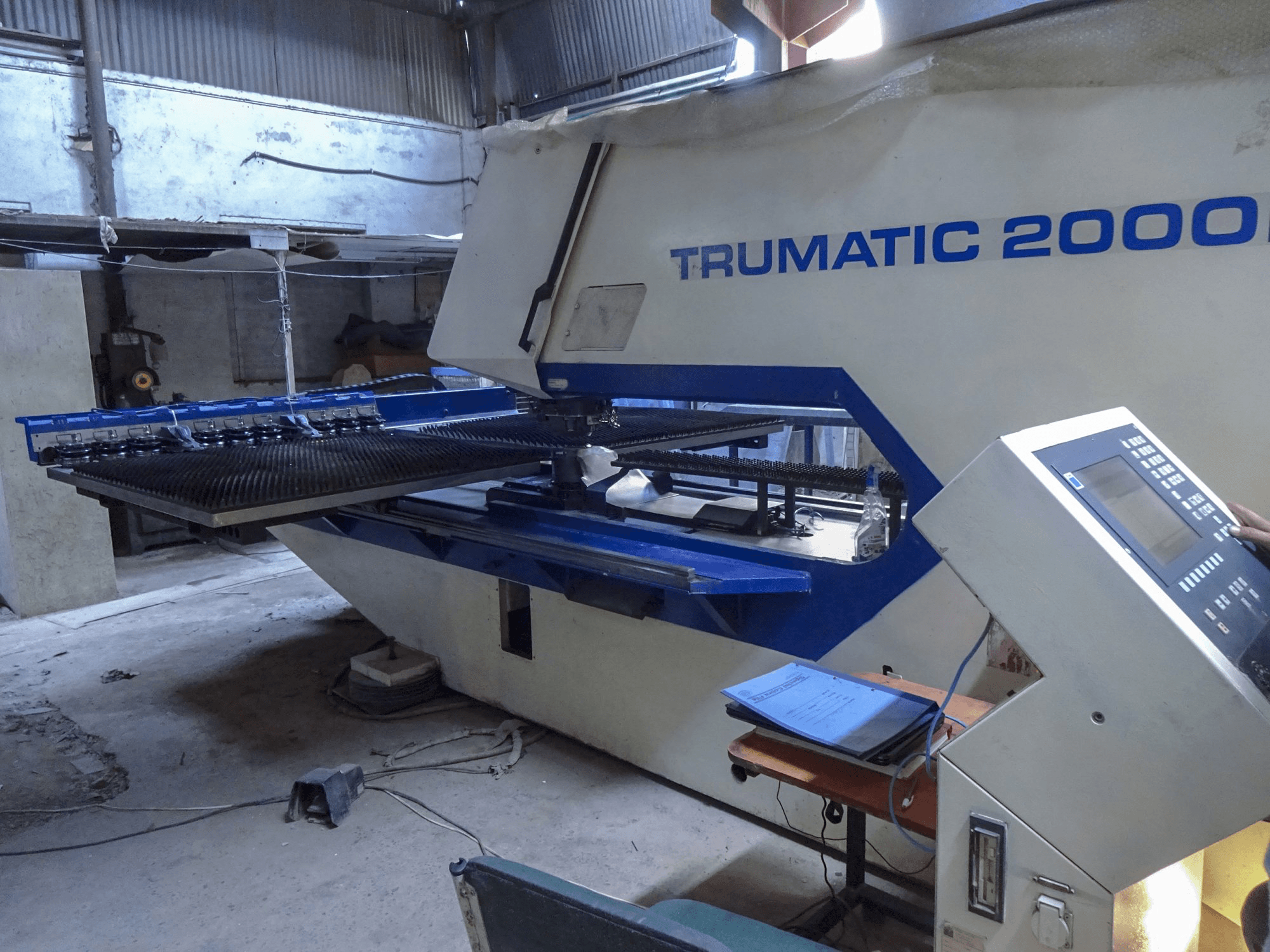

This Trumpf Trumatic 2000 R Turret Punching Machine from 2001 was manufactured in Germany in 2001 and has a working record of approximately 48600 production hours. With a Bosch Control unit with RS232 interface, in the past this machine has handled mainly mild steel of up to 3 mm of thickness. The model is a large format of punching machine and has the same number of auto index as stations. 10 complementary tools are included as additional equipment.
Overview
- brand: TRUMPF
- year: 2001
- MODEL: Trumatic 2000 R
- production hours: 48600
- application type: Punching
- Location: India
- machine type: Turret Punching Machine
- availability: Sold
- control unit brand: BOSCH
- GINDUMAC ID: IN-PUN-TRU-2001-00001
Technical Information
General Data
- Measurements width: 2800 mm
- Measurements depth: 5500 mm
- Measurements height: 2200 mm
- Machine weight: 9200 kg
Control Unit
- Brand: Bosch
- Interface: RS232
Main drive
- Punching force: 180 kN
- Maximum sheet thickness: 4 mm
Movement
- X-AXIS Movement: 1250 mm
- Y-AXIS Movement: 1250 mm
Tools
- Number of index: 10
- Number of stations: 10
- Max tool diameter: 76 mm
Max Material thickness
- Steel: 4 mm
- Stainless steel: 2 mm
- Aluminum: 5 mm
Media
- Main electronic connection: 400 V/50 Hz
- Power consumption: 17 kVA
- Air pressure: 7 bar
Additional Equipment
- - 10x tools
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
