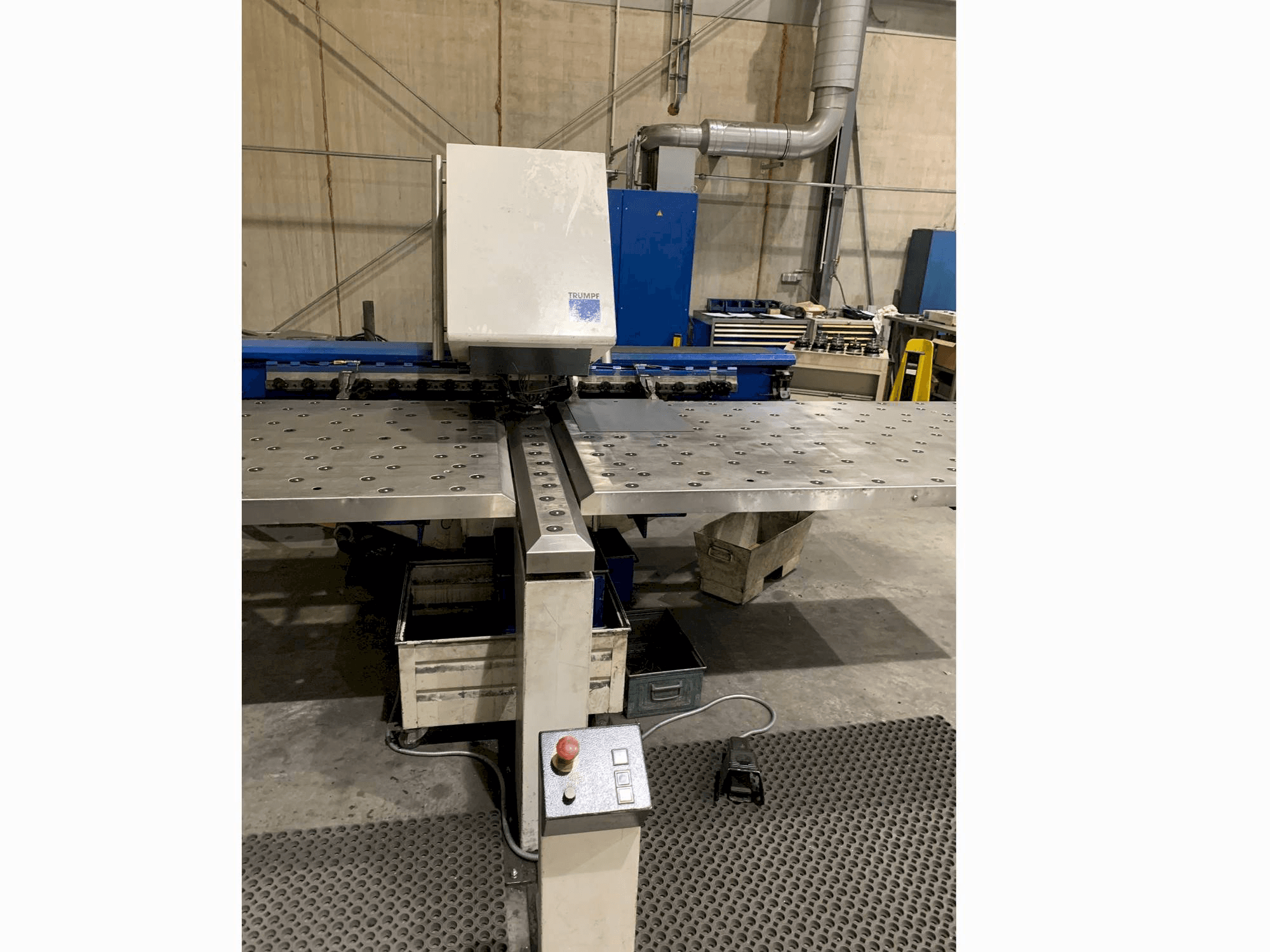

Front view of Trumpf Trumatic 200 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic 200

Photo Gallery

TRUMPF - Trumatic 200DE-PUN-TRU-2003-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Trumpf Trumatic 200 Punching Machine

Show in original language

This Trumpf Trumatic 200 Punching Machine was made in Germany in the year 2003. It counts with 19247 production hours since then. It is operated through a TRUMPF TRUMAGRAPH CNC control unit. This machine includes a punching force of 165 kN. During the past, it has mainly worked with steel up to 6.4 mm of thickness. Hydraulic tubes and pump recently replaced.

Overview

brand: TRUMPF
year: 2003
MODEL: Trumatic 200
production hours: 19247
application type: Punching
Location: Germany
machine type: CNC Punch Press
control unit brand: TRUMPF

Technical Information - TRUMPF Trumatic 200

Control Unit

Control Brand: TRUMPF
Control Model: TRUMAGRAPH

Dimensions

Machine Weight: 8000 kg
Table Length: 1280 mm
Table Load: 150 kg
Table Width: 2070 mm

Movement

X-axis Travel: 2070 mm
Y-axis Travel: 1280 mm

Technical Specification

Punching Force: 165 Kn

Additional Information

Machine Benefits

Qualitative Machine Benefits

Hydraulic tubes and pump recently replaced

Technical Machine Benefits

Max. Punching thickness: 6. 4 mm
Max diameter punching: 76. 2 mm
X speed: 60 m / min
Y speed: 40 m / min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
