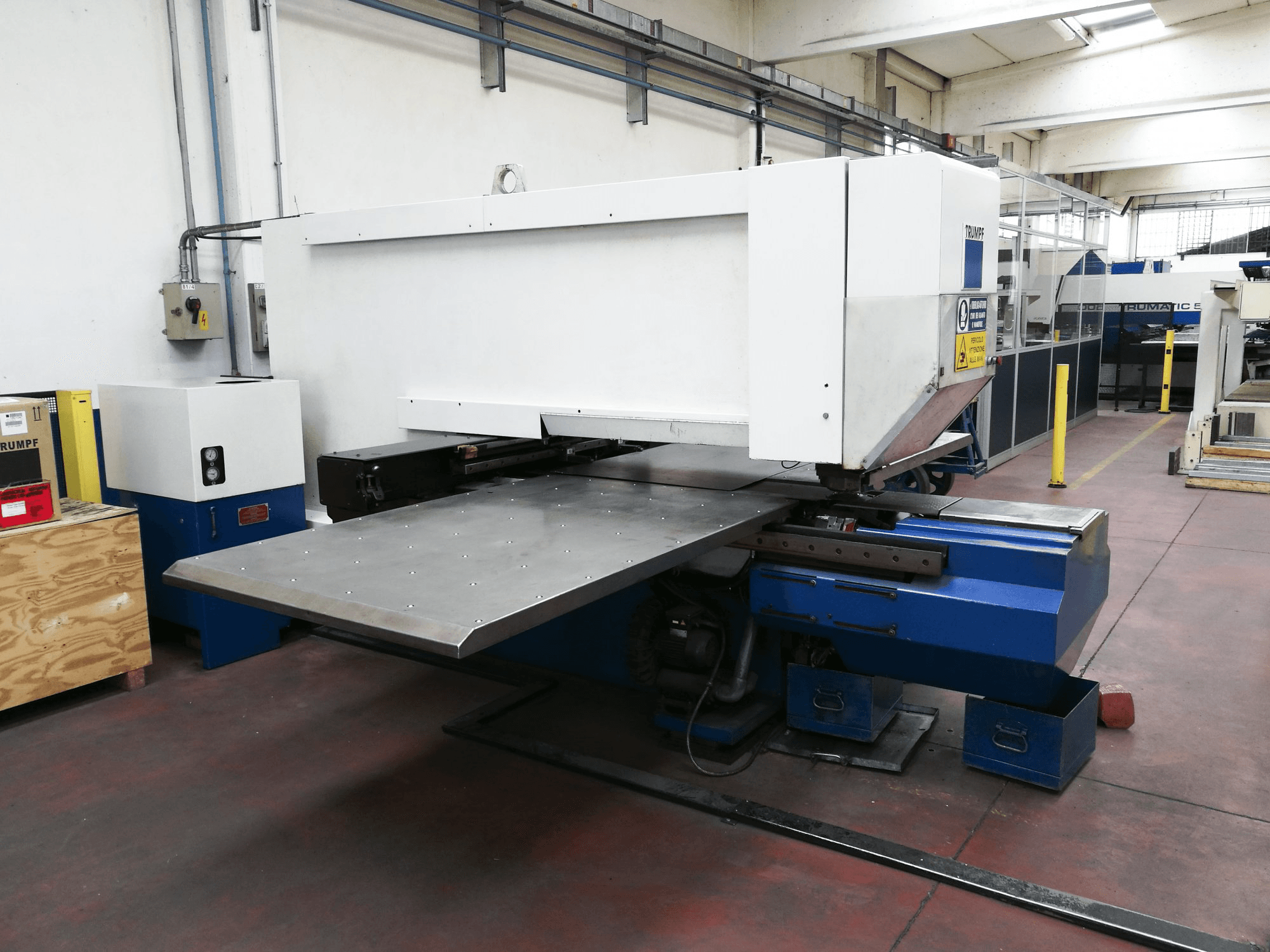

This Trumpf Trumatic 240 Turret Punching Machine dates from the year 1989 and has a production history of 33600 working hours. This 250 kN-strong machine operates through a Bosch Trumagraph Control unit (with Ethernet interface). In the past, this solid equipment has worked mostly with up to 3 mm thick steel, but is able to work on up to 6.4 mm thick sheets. As additional equipment, a 10x tool changer and laser security guides are included.
Overview
- brand: TRUMPF
- year: 1989
- MODEL: Trumatic 240
- production hours: 33600
- application type: Punching
- Location: Italy
- machine type: Turret Punching Machine
- availability: Sold
- control unit brand: BOSCH
- GINDUMAC ID: IT-PUN-TRU-1989-00001
Technical Information
General Data
- Measurements width: 6500 mm
- Measurements depth: 5500 mm
- Measurements height: 2300 mm
- Machine weight: 8000 kg
Control Unit
- Brand: Bosch
- Model: Trumagraph
- Interface: Ethernet
Main drive
- Punching force: 250 kN
- Maximum sheet thickness: 6.4 mm
Movement
- X-AXIS Movement: 2000 mm
- X-AXIS Rapid traverse: 45 m/min
- Y-AXIS Movement: 1300 mm
- Y-AXIS Rapid traverse: 45 m/min
Workpiece
- Workpiece weight: 150 kg
Table
- Max punching diameter: 76.2
Tools
- Number of stations: 10
Media
- Main electronic connection: 380 V / 3P / 50 Hz
- Power consumption: 19 kVA
- Air pressure: 6 bar
- Oil tank: 200 L
- Oil pressure: 170 bar
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
