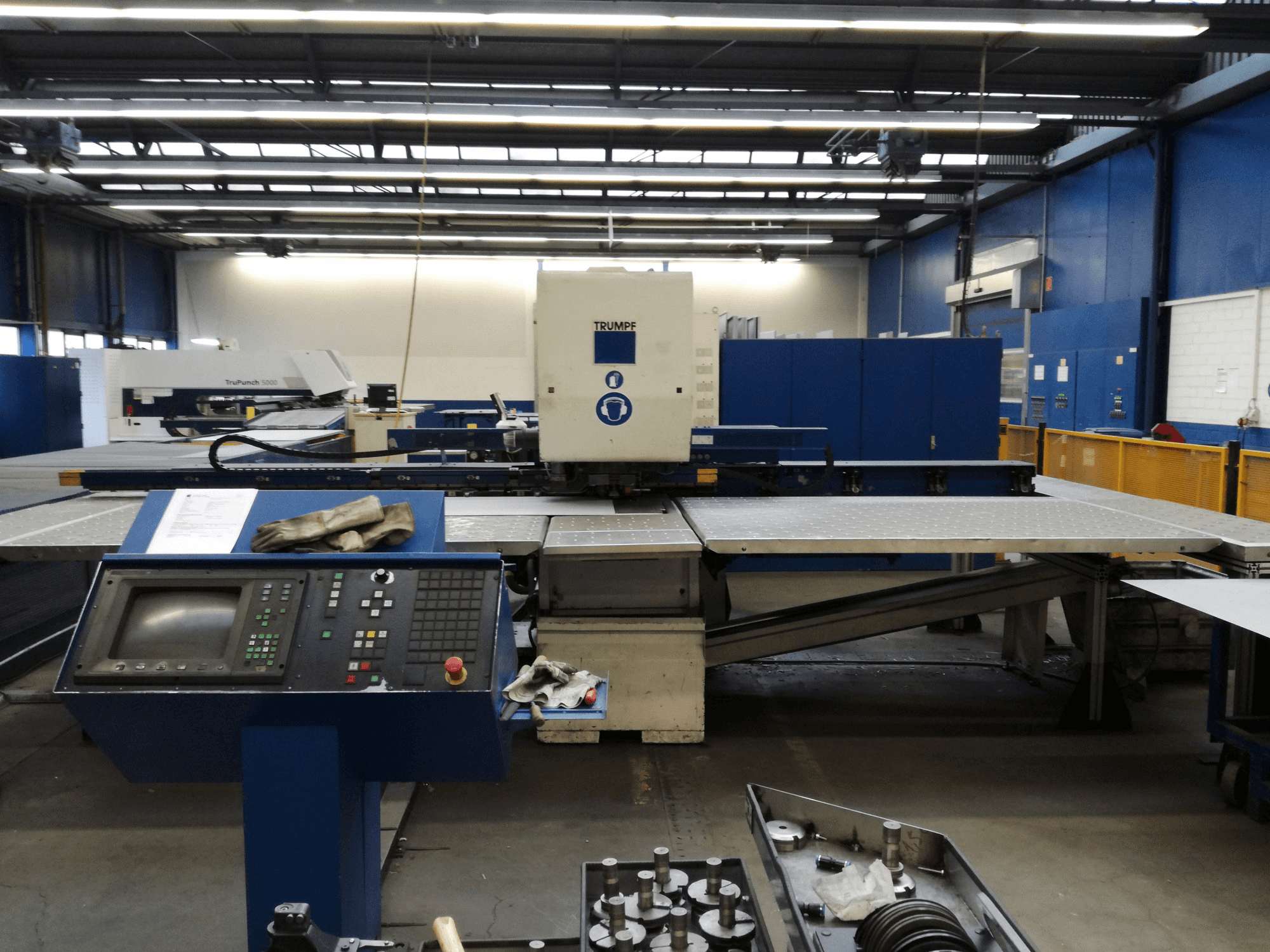

Front view of Trumpf Trumatic 260 Rotation machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic 260 Rotation

Photo Gallery

TRUMPF - Trumatic 260 RotationDE-PUN-TRU-1991-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Trumpf Trumatic 260 Rotation Turret Punching Machine

Show in original language

This Trumpf Trumatic 260 Rotation Turret Punching Machine was built in the year 1991 and has a production record of 79605 working hours. Equipped with a Bosch CC200/300 Control unit with 1990 release and remote control, this machine has worked only on up to 4 mm sheets in the past, but is able to work with up to 6 mm thick materials. This Trumatic 260 Rotation, which stands out through its wide working range (2500 mm on the X-Axis) has received a revision by Trumpf every three months.

Overview

brand: TRUMPF
year: 1991
MODEL: Trumatic 260 Rotation
production hours: 79605
application type: Punching
Location: Germany
machine type: CNC Punch Press
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 260 Rotation

General Data

Measurements width: 6600 mm
Measurements depth: 7600 mm
Measurements height: 2470 mm
Machine weight: 16000 kg

Control Unit

Model: CC200/300
Release: 1990
Remote control: Yes
Brand: BOSCH

Main drive

Punching force: 250 kN
Maximum sheet thickness: 6.4 mm

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1300 mm

Workpiece

Workpiece x: 2500 mm
Workpiece y: 1300 mm
Workpiece weight: 150 kg

Tools

Number of index: 10
Number of stations: 10
Max tool diameter: 76 mm

Max Material thickness

Steel: 6.4 mm
Stainless steel: 4 mm
Aluminum: 2 mm

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 35 kVA
Air pressure: 6 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
