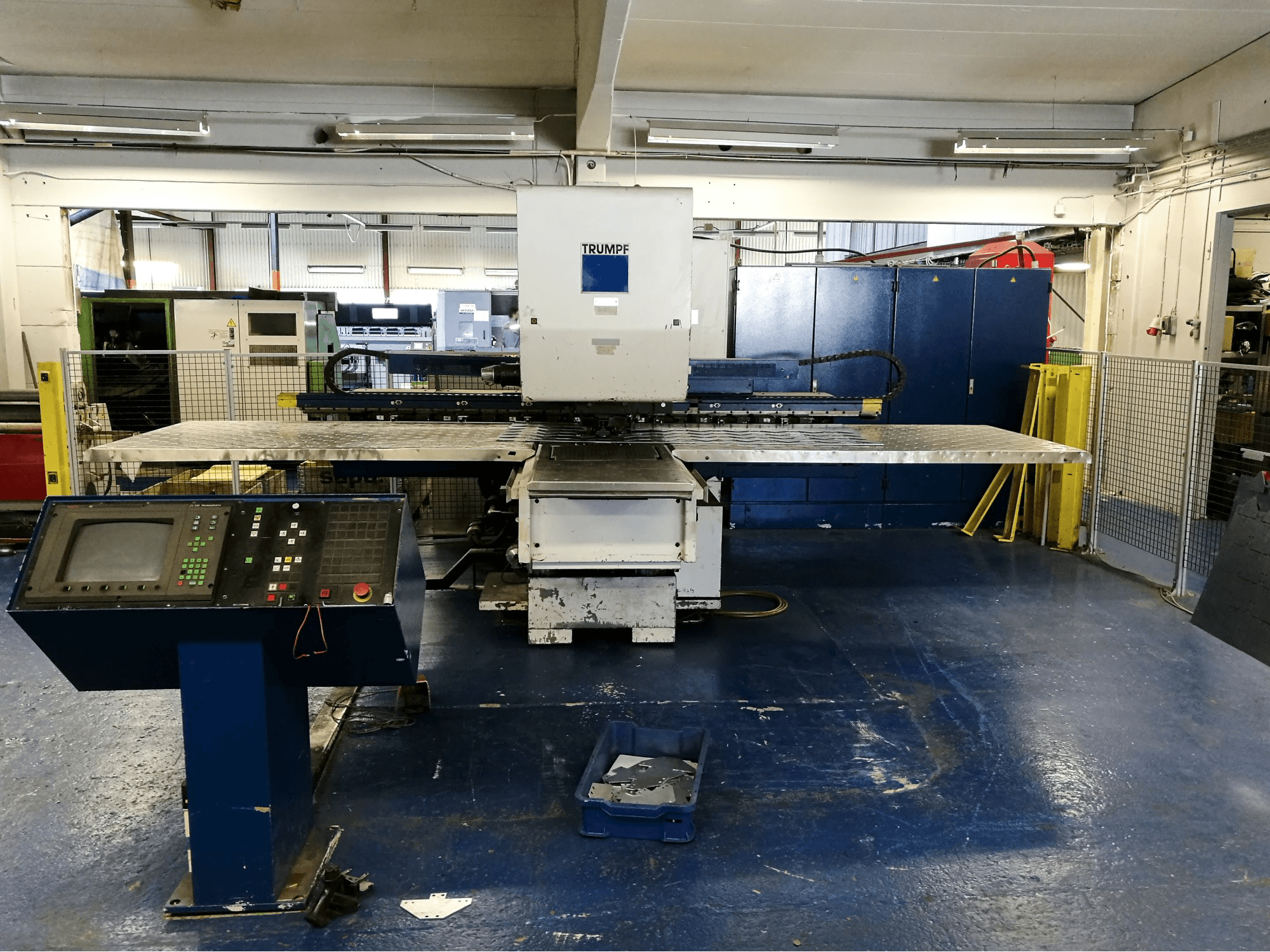

Right view of Trumpf Trumatic 260 Rotation Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic 260 Rotation

TRUMPF - Trumatic 260 RotationSE-PUN-TRU-1990-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Trumpf Trumatic 260 Rotation Turret Punching Machine

Show in original language

This Trumpf Trumatic 260 Rotation Turret Punching Machine was manufactured in 1990 and has a working record of 64800 production hours ever since. Operated through a Bosch CC 200 Trumagraph with remote control Control unit, the equipment has a flexible dimension range and allows operation on thick sheets of metal (of up to 6,4 mm). Additionally, the equipment stands out for the inclusion of extra tooling, accessories and software. In the past, the machine has been in constant operation, and has worked mainly with mild steel of 0.7 to 5 mm in thickness producing assembly carriers.

Overview

brand: TRUMPF
year: 1990
MODEL: Trumatic 260 Rotation
production hours: 64800
application type: Punching
Location: Sweden
machine type: Punch-Laser Combination
availability: Sold
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 260 Rotation

General Data

Measurements width: 6600 mm
Measurements depth: 7600 mm
Measurements height: 2470 mm
Machine weight: 16000 kg

Control Unit

Model: CC 200 Trumagraph
Remote control: Yes
Brand: BOSCH

Main drive

Punching force: 250 kN
Maximum sheet thickness: 6.4 mm

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1300 mm

Workpiece

Workpiece x: 2500 mm
Workpiece y: 1300 mm
Workpiece weight: 150 kg

Tools

Number of index: 10
Number of stations: 10
Max tool diameter: 76 mm

Max Material thickness

Steel: 6.4 mm
Stainless steel: 4 mm
Aluminum: 2 mm

Media

Main electronic connection: 380 V
Power consumption: 35 kVA
Air pressure: 6 bar

Additional Equipment

- Tools
- Accesories

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
