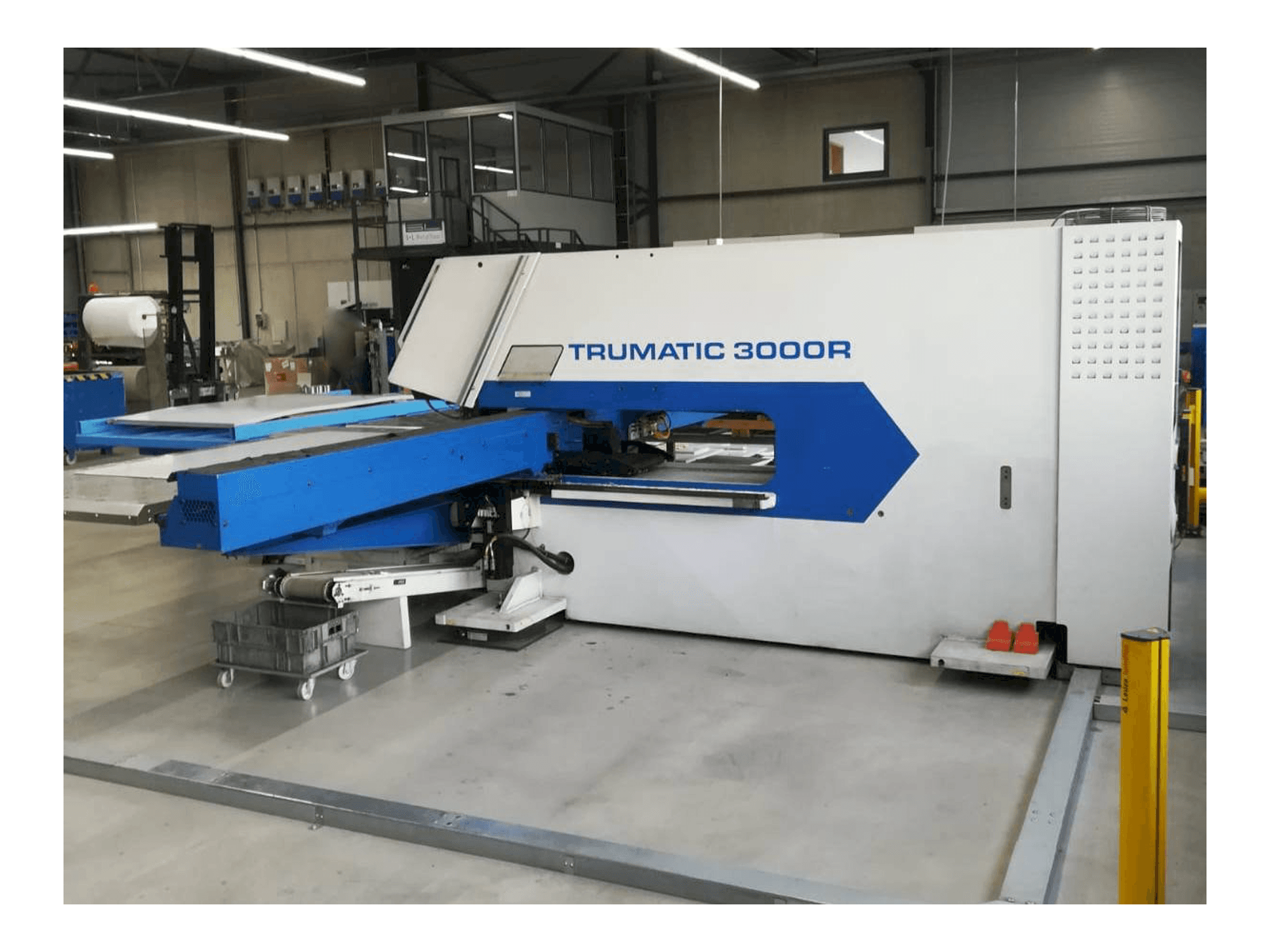

Front view of Trumpf Trumatic 3000R machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic 3000R

Photo Gallery

TRUMPF - Trumatic 3000RDE-PUN-TRU-2004-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Trumpf Trumatic 3000R Punching Machine

Show in original language

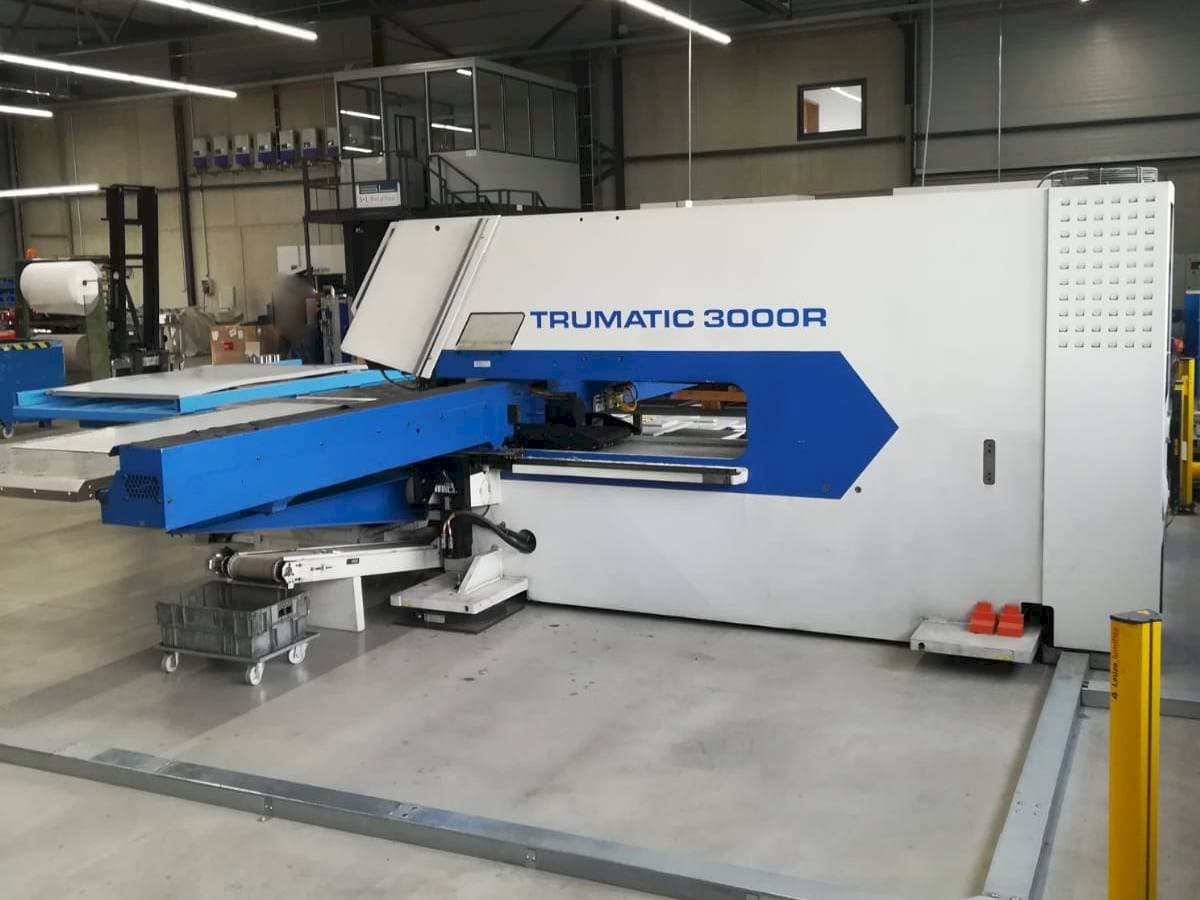

This Trumpf Trumatic 3000R Punching Machine from Germany was manufactured in 2004. Operated through a Bosch PNC-P Control unit, this machine can work with a punching force of 180 kN.

Overview

brand: TRUMPF
year: 2004
MODEL: Trumatic 3000R
application type: Punching
Location: Germany
machine type: Punch-Laser Combination
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 3000R

General Data

Measurements width: 6500 mm
Measurements depth: 5800 mm
Measurements height: 2230 mm
Machine weight: 11250 kg

Control Unit

Model: PNC-P
Brand: BOSCH

Main drive

Punching force: 180 kN
Maximum sheet thickness: 6.4 mm
Stroke: 900 1/min
Max payload: 150 kg

Movement

X-AXIS Movement: 90 m/min MM
Y-AXIS Movement: 60 m/min MM
C-AXIS Movement: 180 1/min MM

Tools

Max tool diameter: 76.2 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 19 tools in linear magazine
- - 3. 1s tool change (single tool)
- - 0. 6s tool change (multitool)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
